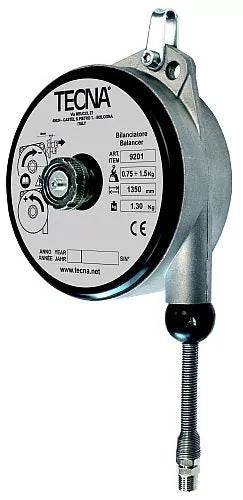

TECNA BALANCERS WITH HOSE
TECNA balancer with hose, models (9200-9201-9202-9203): is a versatile solution, ideal for various industrial applications. It can be used both on workbenches and assembly lines, providing ergonomic support for small tools, suspended welding machines, and multiple screwdrivers.
Applications:-
Screwdrivers, Drills, Shears, Electronic tools, Blow guns
Features
- Aluminium body.
- Maximum ease of use.
- Minimum overall dimensions as the tool is supported by the hose.
- Polyurethane hose.
- Rugged construction, cast aluminium body.
- Adjustable capacity.
- Springs properly sized to ensure long life and smooth running.
- Adjustable stroke limiting device.
- Auxiliary safety suspension.
- Max operating pressure 8 bar
- Max operating temperature 50 °C.
Technical Data
| ITEM | 9200 | 9201 | 9202 | 9203 | |
| Capacity | kg | 0.4-0.8 | 0.75-1.5 | 1.2-2.5 | 3-5 |
| Stroke | mm | 1350 | 1350 | 1350 | 900 |
| Net weight | kg | 1.25 | 1.30 | 1.35 | 1.35 |
| Gross weight | kg | 1.40 | 1.40 | 1.60 | 1.60 |
| Hose | Polyurethane | ||||
| Package dimensions | mm | 225 160 110 |
225 160 110 |
225 160 110 |
225 160 110 |
