TECNA BALANCER POLYPROPYLENE CABLE

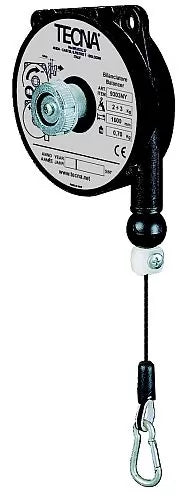

TECNA Balancers, models (9300NY-9301NY-9302NY-9303NY): are equipped with a polypropylene cable and offer a capacity from 0.2 to 3 kg, with a cable stroke of up to 1600 mm. Ideal for applications requiring precision and lightness, they provide reliable support in load handling. The polypropylene cable offers numerous advantages, including high resistance to moisture and corrosion, reduced weight for easier handling, and enhanced safety due to its flexibility and ability to absorb shocks and vibrations.
Designed to reduce operator fatigue, these spring balancers optimize working times and improve work quality, increasing productivity and efficiency. Built in compliance with the DIN 15112 directive, they are BG-certified by the German authority, ensuring the highest safety standards in the workplace.
Their ergonomic structure has been developed to ensure simple and safe use, offering maximum ease of movement, robustness, and superior lifting power. TECNA balancers are an essential solution for improving efficiency and safety in daily operations.
Features
- Rugged construction, Nylon body.
- Polypropylene rope.
- Adjustable capacity.
- Auxiliary safety suspension.
- Adjustable stroke limiting device.
- Cable guide in antifriction material.
- Inert spring drum assembly.
- Polyamides thimble.
Technical Data
| ITEM | 9300NY | 9301NY | 9302NY | 9303NY | |
| Capacity | kg | 0.2-0.5 | 0.4-1 | 1-2 | 2-3 |
| Stroke | mm | 1600 | 1600 | 1600 | 1600 |
| Net weight | kg | 0.43 | 0.46 | 0.49 | 0.64 |
| Gross weight | kg | 0.5 | 0.6 | 0.6 | 0.7 |
| Package dimensions | mm | 204 112 62 |
204 112 62 |
204 112 62 |
204 112 62 |
