TECNA BALANCER POLYPROPYLENE CABLE

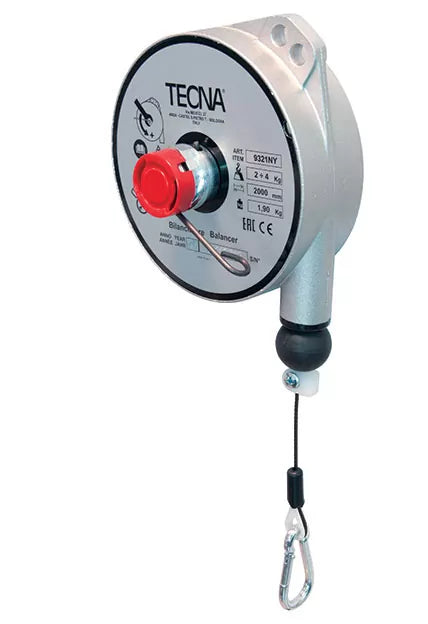

TECNA Balancer, models (9320NY-9321NY-9322NY-9323NY): equipped with a polypropylene cable, with a load capacity from 1 kg to 8 kg and a cable stroke up to 2000 mm. Thanks to the combination of strength and lightness, they are an essential ally for efficiency and workplace safety.
A spring balancer is a mechanical device designed to support and balance the weight of tools, equipment, or other suspended objects.
Its operation is based on a spiral spring that, by winding and unwinding, compensates for gravity, allowing the operator to move the load with minimal effort.
The TECNA balancer with polypropylene cable offers specific advantages:
- Lightness and ease of handling: Thanks to polypropylene, a lightweight material that reduces the overall weight of the balancer, improving handling and operator comfort.
- Abrasion and chemical resistance: The polypropylene cable provides good resistance to wear, abrasion, and chemical agents, ensuring long-lasting durability even in challenging environments.
- Gentle on surfaces: Unlike steel cables, polypropylene is less aggressive on surfaces it comes into contact with, reducing the risk of scratches or damage. This makes it particularly suitable for applications where surface protection is crucial.
Features
- Rugged construction, cast aluminium body.
- Polypropylene rope.
- Adjustable capacity.
- Auxiliary safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Adjustable stroke limiting device.
- Cable guide in antifriction material.
- Inert spring drum assembly.
- Polyamides thimble.
Technical Data
| ITEM | 9320NY | 9321NY | 9322NY | 9323NY | |
| Capacity | kg | 1-2.5 | 2-4 | 4-6 | 6-8 |
| Stroke | mm | 2000 | 2000 | 2000 | 2000 |
| Net weight | kg | 1.67 | 1.90 | 1.98 | 2.28 |
| Gross weight | kg | 1.8 | 2.1 | 2.1 | 2.5 |
| Package dimensions | mm | 254 149 96 |
254 149 96 |
254 149 96 |
254 149 96 |
