TECNA BALANCER DYNEEMA CABLE

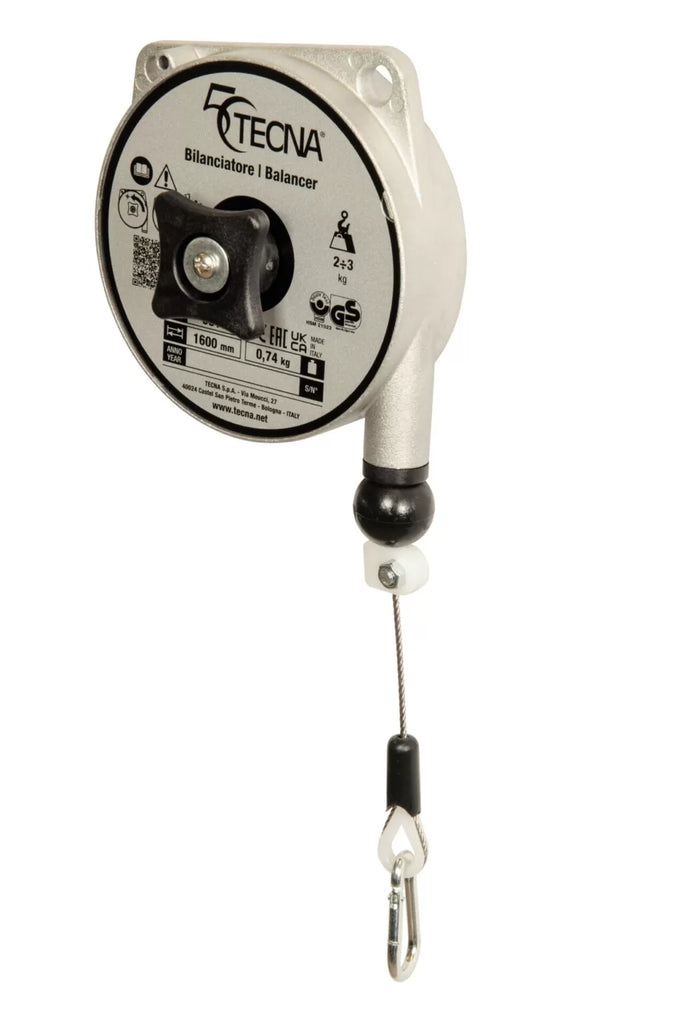

TECNA Balancer, models (9336LNY-9336NY-9337NY-9338NY-9339NY-9340NY): is equipped with a Dyneema® cable, offering a load capacity from 0.5 kg to 14 kg and a cable stroke of up to 2500 mm. Thanks to the combination of lightness and strength, these balancers provide reliable support in load handling, reducing wear and improving operational safety.
Designed to reduce operator fatigue, TECNA spring balancers optimize processing times, improve ergonomics, and contribute to increased productivity. Built in compliance with the DIN 15112 directive, they are BG certified by the German authority, ensuring the highest safety standards in the workplace.
Their ergonomic design is developed to facilitate every operation, providing maximum movement fluidity, high robustness, ease of use, and superior lifting capacity. TECNA balancers are an essential solution for improving efficiency, safety, and comfort in daily operations.
Features
- Rugged construction, cast aluminium body.
- Dyneema® rope.
- Adjustable capacity.
- Auxiliary safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Adjustable stroke limiting device.
- Cable guide in antifriction material.
- Inert spring drum assembly.
- Polyamides thimble.
Technical Data
| ITEM | 9336LNY | 9336NY | 9337NY | 9338NY | 9339NY | 9340NY | |
| Capacity | kg | 0.5-2 | 2-4 | 4-6 | 6-8 | 8-10 | 10-14 |
| Stroke | mm | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
| Net weight | kg | 3.14 | 3.14 | 3.30 | 3.36 | 3.43 | 3.58 |
| Gross weight | kg | 3.40 | 3.40 | 3.60 | 3.70 | 3.70 | 3.80 |
| Package dimensions | mm | 304 186 100 |
304 186 100 |
304 186 100 |
304 186 100 |
304 186 100 |
304 186 100 |
