TECNA BALANCER STAINLESS STEEL CABLE

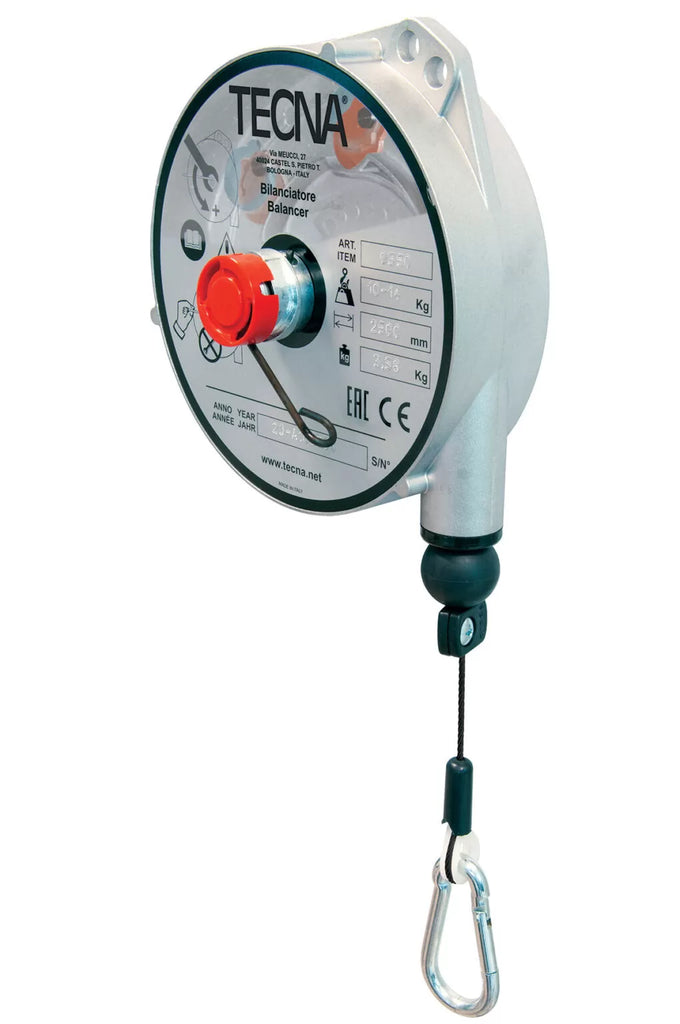

TECNA Balancer, models (9346L-9346-9347-9348-9349-9350): with a capacity from 0.5 to 14 kg and a stainless steel cable stroke up to 2500 mm, it features an innovative stroke lock device that allows the load to be fixed quickly and securely. This versatile system enables load stabilization or gradual release for more delicate operations, ensuring complete control and easy use, suitable for various industrial applications.
TECNA spring balancers, built in compliance with the DIN 15112 directive, are BG-certified by the German authority, ensuring maximum workplace safety thanks to advanced construction technology and adherence to current regulations.
Their ergonomic structure, combined with advanced technology, provides ease of movement, durability, and simplicity of use, making them an essential tool to optimize working times and ensure a safer and more efficient work environment.
Features
- Rugged construction, cast aluminium body.
- Dyneema® rope.
- Adjustable capacity.
- Auxiliary safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Adjustable stroke limiting device.
- Cable guide in antifriction material.
- Inert spring drum assembly.
- Polyamides thimble.
These new balancers are equipped with a new device enabling to stop the stroke by carrying out a simple operation on the load.
Technical Data
| ITEM | 9346LNY | 9346NY | 9347NY | 9348NY | 9349NY | 9350NY | |
| Capacity | kg | 0.5-2 | 2-4 | 4-6 | 6-8 | 8-10 | 10-14 |
| Stroke | mm | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
| Net weight | kg | 3.14 | 3.14 | 3.32 | 3.38 | 3.48 | 3.62 |
| Gross weight | kg | 3.40 | 3.40 | 3.60 | 3.70 | 3.80 | 3.90 |
| Package dimensions | mm | 304 186 100 |
304 186 100 |
304 186 100 |
304 186 100 |
304 186 100 |
304 186 100 |
