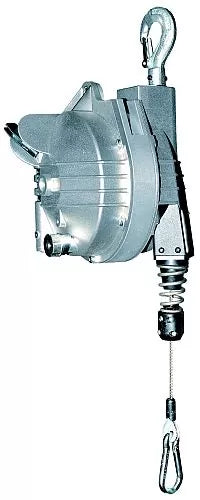

LINE FOOD INDUSTRY - TECNA ZERO GRAVITY RETRACTORS
The TECNA FOOD INDUSTRY ZERO GRAVITY balancer is designed for various sectors, including food & beverage, meat slaughtering and processing, dairy, confectionery and baking, as well as industrial washing and sanitation. Depending on the chosen model, the TECNA FOOD INDUSTRY ZERO GRAVITY balancer (models 9361RL-9362RL-9363RL-9364RL-9365RL-9367RL-9368RL-9369RL) offers a load capacity from 10 to 75 kg with a cable stroke up to 2000 mm.
Features
- Cast aluminium housing with special high-strength Rilsan ® treatment against oxidation and chemical aggression from soaps and detergents
- Smoother surface facilitates cleaning and sanitization
- Food grade rope guide, shock absorber and wire cap
- Rustproof and Stainless Steel exterior materials
- Rustproof and Stainless Steel interior materials
- NSF-H1 certified food grade grease
- Ribbed and sealed monobloc construction in aluminium alloy.
- Stainless steel rope.

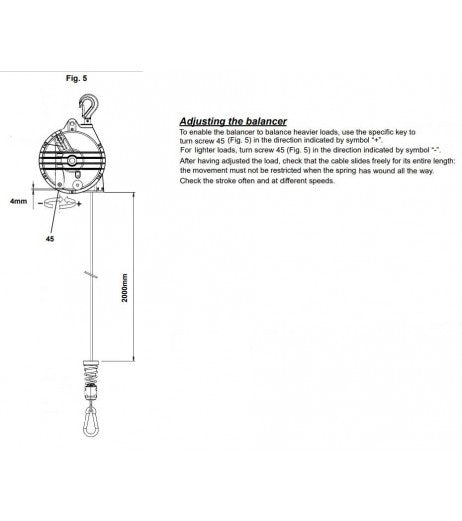

- Adjustable capacity by means of a worm screw.
- Auxiliary safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Centrifugal safety device.
- Upper rotary suspension with safety hook.
- Locking device to block the load at any height.
- Adjustable stroke limiting device.
- Taper drum rotating on ball bearings.
- Cable guide in antifriction material.
- Inert spring drum assembly.
- Polyamides thimble.

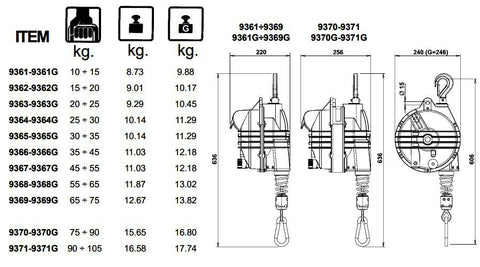

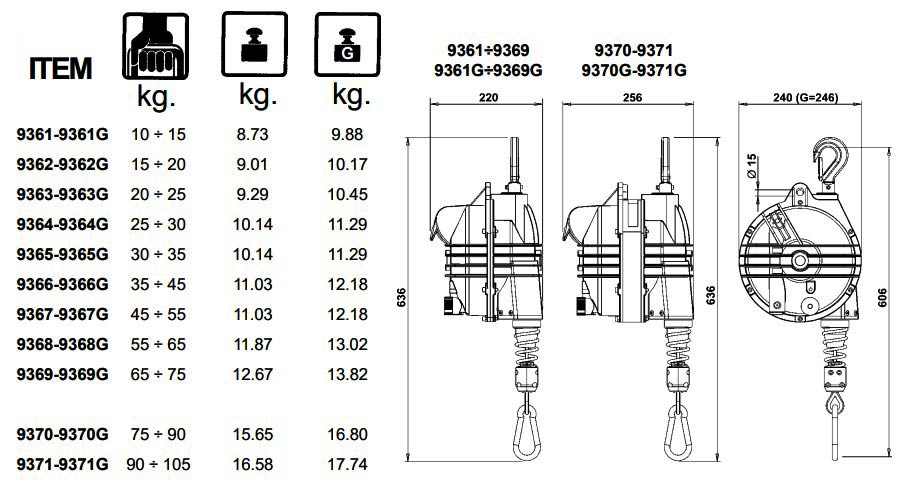

Technical data
| ITEM | 9361RL | 9362RL | 9363RL | 9364RL | 9365RL | 9366RL | 9367RL | 9368RL | 9369RL | |
| Capacity | kg | 10-15 | 15-20 | 20-25 | 25-30 | 30-35 | 35-45 | 45-55 | 55-65 | 65-75 |
| Stroke | mm | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Net weight | kg | 9.20 | 9.50 | 9.80 | 10.20 | 10.60 | 11.00 | 11.30 | 12.30 | 13.20 |
| Gross weight | kg | 11.8 | 12.1 | 12.4 | 13.3 | 13.3 | 14.1 | 14.1 | 15.0 | 15.8 |
| Package dimensions | mm | 590 265 260 |
590 265 260 |
590 265 260 |
590 265 260 |
590 265 260 |
590 265 260 |
590 265 260 |
590 265 260 |
590 265 260 |
