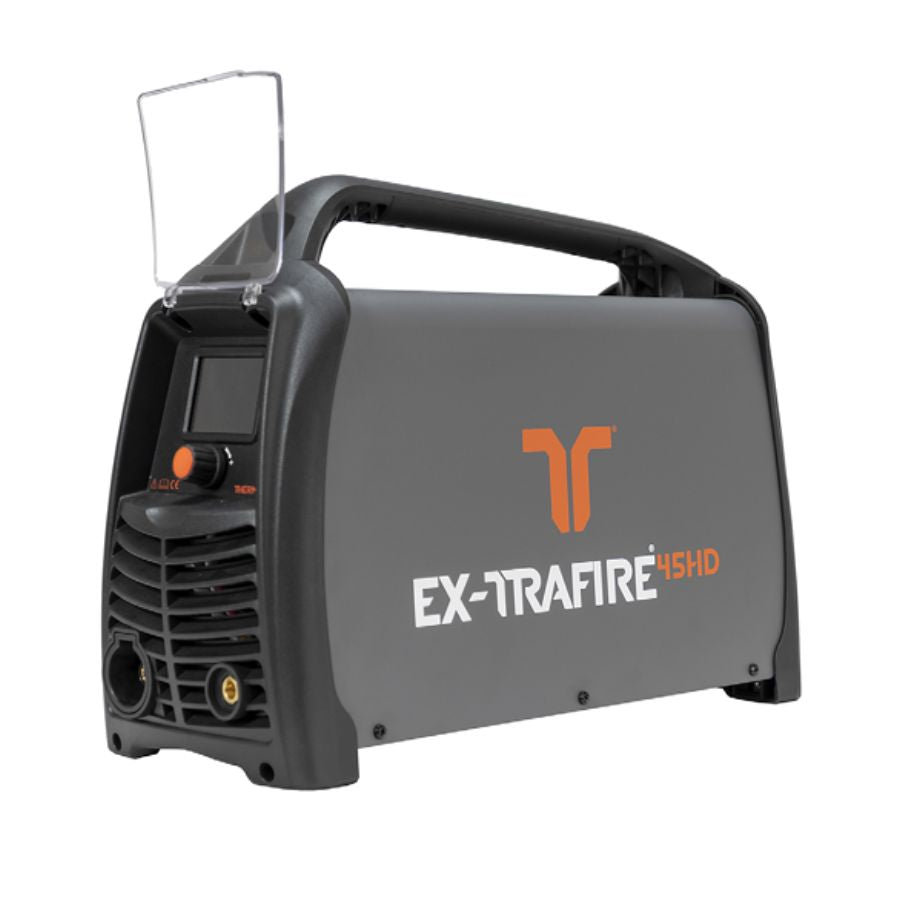

Thermacut Ex-Trafire 45HD Plasma Cutters- High Performance Cutting Machine.
Impressive Performance
- Extremely high cutting speed
- Maximum cutting quality
- Ideal for automated processes
Ready for Industry 4.0
- CAN Bus interface (optional)
- RS 485 interface (optional)
- Expandable and updatable to remain extremely future-proof
- Easy monitoring
Automatic Settings
- Cutting gas media, electricity and pilot current
- Compensation for pressure drops
- Fewer operating errors, better cutting quality
Optimal Cost Effectiveness
- Low investment costs
- 20% longer consumable lifetime
- Low operating costs
Single Phase
| Cutting current | 10-25 A @ 120 VAC / 10-45 A @ 230 VAC |
| Modes | Cutting / grid cutting / gouging / marking |
| Duty cycle @ 40°C @ 120 VAC | 40% @ 25 A, 100% @ 16 A |
| Duty cycle @ 40°C @ 230 VAC | 50% @ 45 A, 100% @ 32 A |
| Rated output voltage | 145 VDC |
| Severance cutting capacity | 25 mm +* |
| Piercing cutting capacity | 10 mm* |
| Recommended cutting capacity | 12 mm* |
| Plasma gas | Compressed air / nitrogen / argon (marking) |
| Air flow [lpm/bar] | 90/4.5 |
| CNC interface / CAN BUS interface | Optional / optional |
| Preadjusted voltage divider ratio** | 50:1 |
| Input voltage | 120/230 VAC ± 15% |
| Frequency | 50/60 Hz |
| Dimensions (L×H×W) | 469×228×177 mm |
| Weight | 12.7 kg |
| Certification depending on region | CE / C-TICK / CCC |
| Maximum input pressure | 10 bar / 145 psi |
| Protection level | IP23S |
| Insulation class | F |
| Type of hand torch | FHT-EX®45TTH |
| Type of machine torch | FHT-EX®45TTM |
