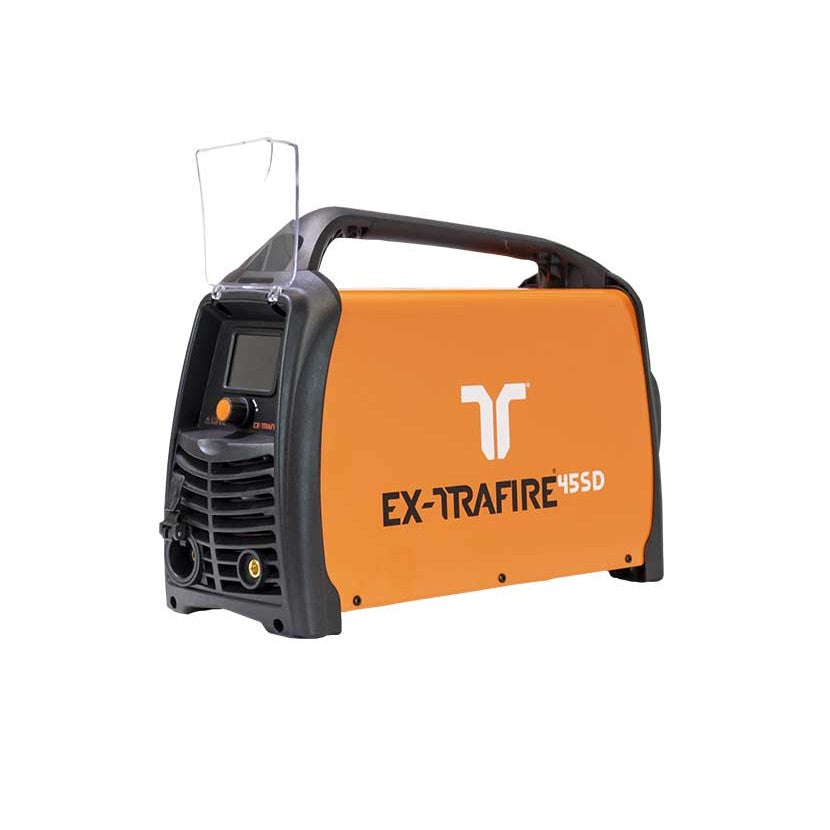

Thermacut Ex-Trafire 45SD - Plasma Cutter
-
Simple Operation:
- Bright LCD for system information and control panel.
- Easily accessible, protected filter regulator.
- Engineered for professionals and demanding beginners.
-
Highest Application Flexibility:
- Plate thicknesses up to 25 mm.
- Lightweight and exceptionally portable.
- TCS quick-change flexible torch packages.
- Suitable for generator use.
-
Extra Performance:
- Cutting, gouging, and grid mode capabilities.
- Exact cuts.
- Industry-leading blue LCD display.
-
Best Cost-Effectiveness:
- Significantly lower investment.
- High consumable lifetime.
- Lower running costs.
Single Phase
| Cutting Current | 20-25 A @ 120 VAC / 20-45 A @ 230 VAC |
| Modes | Cutting / Grid cutting / Gouging |
| Duty Cycle @ 40°C (120 VAC) | 40% @ 25 A, 100% @ 16 A |
| Duty Cycle @ 40°C (230 VAC) | 50% @ 45 A, 100% @ 32 A |
| Rated Output Voltage | 145 VDC |
| Severance Cutting Capacity | Up to 25 mm (plus*) |
| Piercing Cutting Capacity | Up to 10 mm |
| Recommended Cutting Capacity | 12 mm |
| Plasma Gas | Compressed air / Nitrogen |
| Air Flow (lpm/bar) | 90/4.5 |
| CNC Interface | Yes |
| Preadjusted Voltage Divider | 50:1 |
| Input Voltage | 120/230 VAC ± 15% |
| Frequency | 50/60 Hz |
| Dimensions (L×H×W) | 469 × 228 × 177 mm |
| Weight | 12.7 kg |
| Certification | CE / C-TICK / CCC (depending on region) |
| Maximum Input Pressure | 10 bar / 145 psi |
| Protection Level | IP23S |
| Insulation Class | F |
| Hand Torch Type | FHT-EX®45TTH |
| Machine Torch Type | FHT-EX®45TTM |
3 Phase
| Cutting Current | 20-45 A |
| Modes | Cutting / Grid cutting / Gouging |
| Duty Cycle @ 40°C (120 VAC) | 80% @ 45 A, 100% @ 40 A |
| Rated Output Voltage | 145 VDC |
| Severance Cutting Capacity | Up to 25 mm (plus*) |
| Piercing Cutting Capacity | Up to 10 mm |
| Recommended Cutting Capacity | 12 mm |
| Air Flow (lpm/bar) | 90/4.5 |
| Plasma Gas | Compressed air / Nitrogen |
| CNC Interface | Yes |
| Preadjusted Voltage Divider | 50:1 |
| Input Voltage | 3×400 VAC ± 15% (CE) |
| Frequency | 50/60 Hz |
| Dimensions (L×H×W) | 469 × 228 × 177 mm |
| Weight | 12.7 kg |
| Certification | CE / C-TICK / CCC (depending on region) |
| Maximum Input Pressure | 10 bar / 145 psi |
| Protection Level | IP23S |
| Insulation Class | F |
| Hand Torch Type | FHT-EX®45TTH |
| Machine Torch Type | FHT-EX®45TTM |
