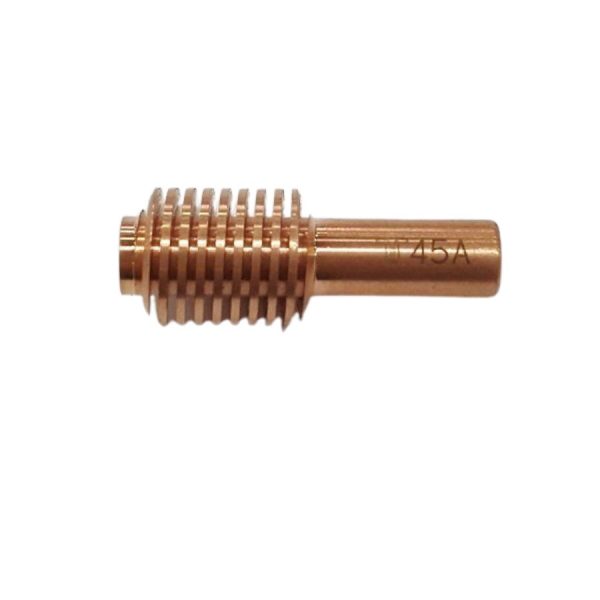

Thermacut T-11236 Electrode 45A for Hypertherm Powermax 45 Torches
Genuine Thermacut Electrodes 45A for Hypertherm T45V and T45M hand torches, designed for use with the Hypertherm Powermax 45 Plasma Cutter.
Electrodes are among one of the most frequently replaced parts in plasma torches. The T-11236 electrode delivers power to the plasma arc, with a Hafnium insert at the tip that withstands extreme heat. Over time, the insert will slowly erode away, forming a small hole in the electrode tip. This is a clear sign it’s time for replacement.
When to replace: Changing the electrode is recommended once the pit in the tip reaches approx. 1 mm in depth. Failure to replace an electrode can cause a blowout which will damage both the electrode and nozzle. If you need to slow down the cutting speed, are experiencing green discoloration of the arc or the arc is misfiring it is time to change the electrode.
Plasma Torch Consumable Parts Configuration
Product List: Torch Consumables
1a. T-11393 Hand Shield,
2a. T-11398 Machine Shield,
3. T-12074 Retaining Cap 45A, without IHS tab,
4. T-12075 Retaining Cap 45A with IHS tab,
5a. T-11395 Shielded Nozzle,
6. T-11214 Non-shielded Nozzle,
7. T-11212 Swirl Ring 45A and
8. T-11236 Electrode 45A.
a – Must be used only as a complete set of shield and nozzle. This set is interchangeable and compatible with original parts.
