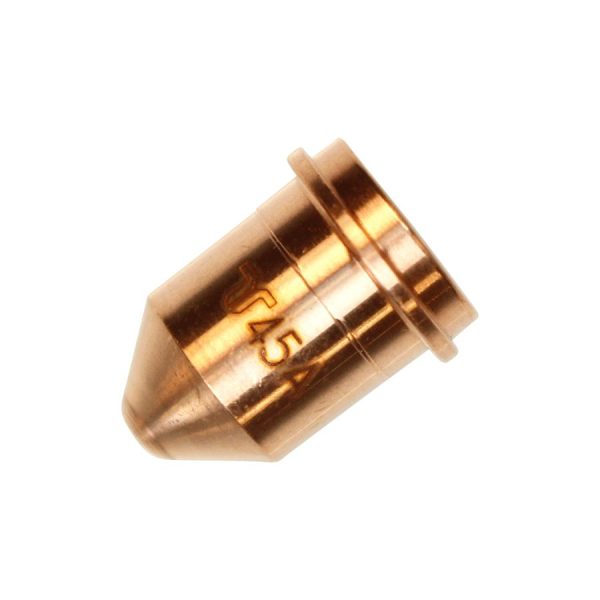

Thermacut T-11378 Nozzles 45A for Hypertherm Duramax Torch (5 pack)
Genuine Thermacut Nozzles 45A for the Duramax torch, designed for use with the Hypertherm Powermax 65,85 and 105 plasma cutting systems.
This replacement nozzles, part number T-11378, is one of the most commonly replaced parts on a plasma torch. The nozzle focuses the plasma arc by directing gas flow, so keeping the nozzle or cutting tip orifice clean, symmetrical, and the correct size is critical. Over time, normal cutting applications wear the tip, causing the arc to widen and become less defined. A worn nozzle can increase the kerf of the cut and reduce cutting speeds, making timely replacement key for optimal performance.
When to replace: The consumable should be replaced when the orifice becomes damaged, the edges are rounded, or it becomes misshapen. Failure to change these can result in poor cutting performance.
Plasma Torch Consumable Parts Configuration
Product List: Torch Consumables
1a. T-11406/ 220818-UR Hand Shield 45/65/85A,
2a. T-11404/220817-UR Machine Shield 45/65/85A,
3. T-11407/220955 Deflector 45/65/85/105A,
4d. T-11423/220854-UR Retaining Cap 45/65/85A ,
5d. T-11931/220953-UR Retaining Cap 45/65/85A Ohmic,
6d. T-11423/220854-UR Retaining Cap 45/65/85A,
7a. T-11378/220941-UR Nozzle 45A
8. T-11377/220819-UR Nozzle 65A,
9. T-11405/220816-UR 85a Nozzle,
10c. T-11861/220857-UR Swirl Ring 10–85A
11c. T-11883/220842×5 Electrode 45–105A.
a – Must be used only as a complete set of shield and nozzle. This set is interchangeable and compatible with original parts.
c – Must be used only as a complete set of electrode and swirl ring. This set is interchangeable and compatible with original parts.
d – Retaining cap suitable for up to 85A. For 105A applications, retaining cap T-11422 must be used. A different retaining cap is required for 105A than for 45A, 65A, and 85A.
