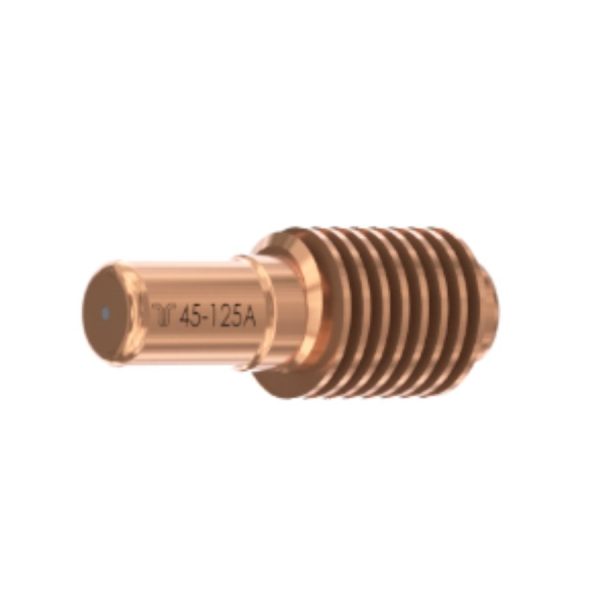

Thermacut T-13304 Electrodes 45–125A for Hypertherm Duramax Torch (pack of 5)
Genuine Thermacut Electrodes 45–125A for the Duramax torch, designed for use with the Hypertherm Powermax 125 plasma cutting systems.
Electrodes are among one of the most frequently replaced parts in plasma torches. The T-13304 electrode delivers power to the plasma arc, with a Hafnium insert at the tip that withstands extreme heat. Over time, the insert will slowly erode away, forming a small hole in the electrode tip. This is a clear sign it’s time for replacement.
When to replace: Changing the electrode is recommended once the pit in the tip reaches approx. 1 mm in depth. Failure to replace an electrode can cause a blowout which will damage both the electrode and nozzle. If you need to slow down the cutting speed, are experiencing green discoloration of the arc or the arc is misfiring it is time to change the electrode.
Plasma Torch Consumable Parts Configuration
Product List: Torch Consumables
1a. T-13267/220976-UR Machine Shield 105-125A,
2a. T-13270/420168-UR Machine Shield,
3a. T-13271/420000-UR Hand Shield 105-125A,
4a. T-13272/ 420172-UR Hand Shield 45-65A,
5a. T-13276/420156-UR 45–125A IHS Retaining Cap,
6a. T-13273/220977-UR Retaining Cap 45–125A,
7a. T-13266/220975-UR Nozzle 105–125A
8a. T-13269/420169-UR 65A Nozzle,
9a. T-13312/ 420158-UR 45A Nozzle,
10a. T-13268/220997-UR Swirl Ring 45–125A and
11a. T-13304/ 220971×5 Electrode 45–125A.
a – Must be used only as a complete set of shield and nozzle. This set is interchangeable and compatible with original parts.
