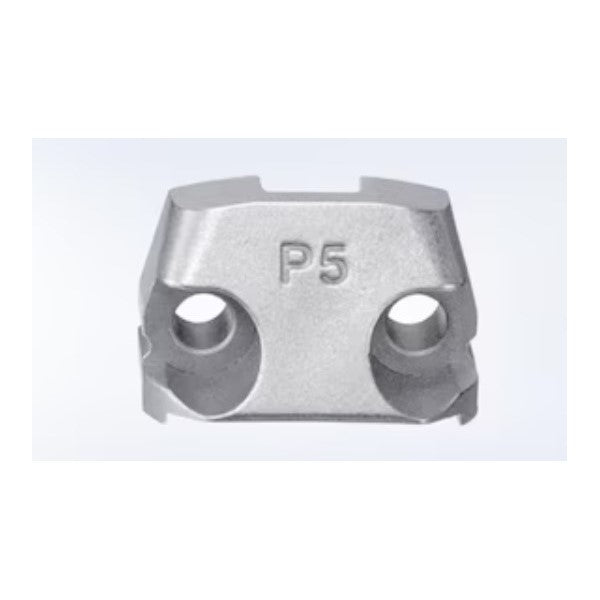

Trumpf 1264150 Die size P5 (set of 2)
Size P5 tools are designed for significantly larger dimensions these tools enable the following-
- Maximum Diameter: Up to 55 mm for cup tools in a single stroke.
- Maximum Height: Up to 10 mm forming height.
- Maximum Length: Up to 100 mm for louver tools and 80 mm for card guide tools.
- Outer Circle: Can reach up to 100 mm in the punch
Features
Size P5 tools are used on machines like the TruPunch 5000 or TruPunch 1000 to produce complex geometries without multiple strokes
- Active Die Compatibility: When used with the "active die" machine option, Size 5 tools can perform scratch-free forming from below the sheet.
- Tool Cartridge: These tools require a specific Size 5 tool cartridge for reliable setup.
- Common Applications: Large louvers for ventilation, card guides, and oversize cups or extrusions (up to 60 mm diameter)
Portable Tooling (P5 Die)
For hand-held power tools, "Die P5" specifically refers to a replacement die for the TRUMPF TruTool N 500 Thick Sheet Nibbler
- Material Capacity: Suitable for processing aluminum and mild steel up to 5 mm thick.
- Compatibility: Designed specifically for the N 500 model to handle profile sheets between 3 mm and 5 mm (0.12 - 0.2 in)
