Trumpf Punch & Die Sets

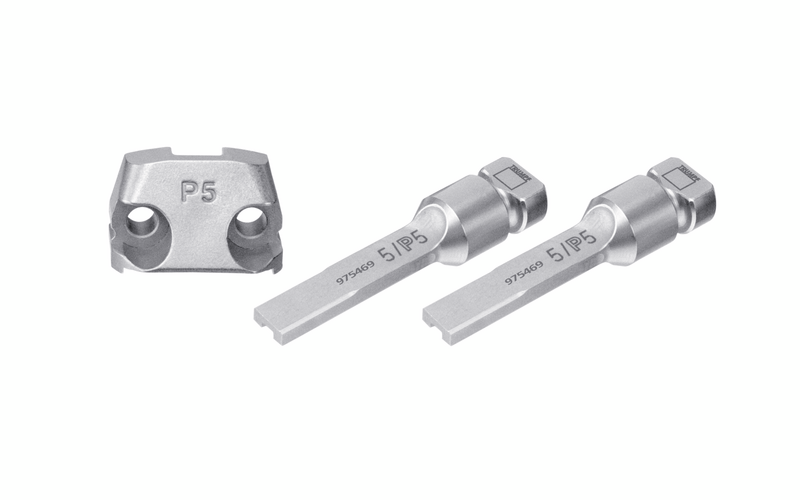

Set P5 consisting of:-
1 punch 5/P5 and 1 die P5 for profiled sheets, suitable for the nibbler N500, newer and older versions, also compressed air devices.
- Max. Sheet thickness steel 400 N/mm²5.0 mm
- Max. Sheet thickness steel 600 N/mm²3.2 mm
- Max. Sheet thickness steel 800 N/mm²2.5 mm
- Max. Sheet thickness aluminum 250 N/mm²7.0 mm

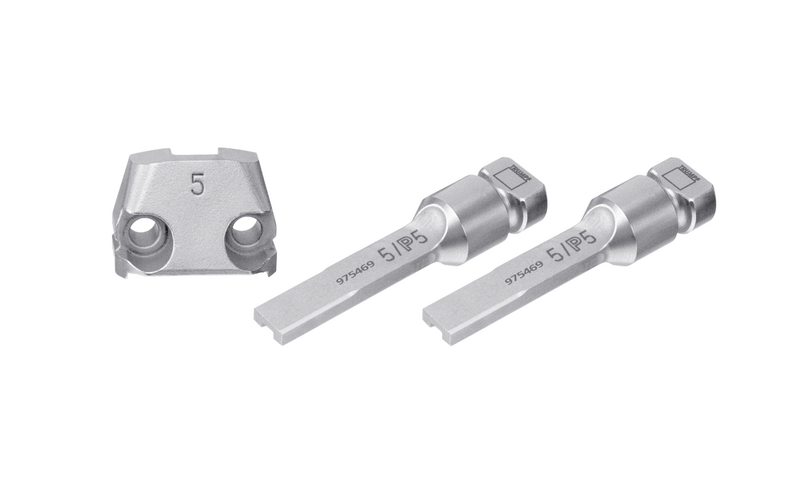

Set 5 consists of:-
1 punch 5/P5 and 1 die 5 for the TruTool Nibbler N 500, newer and older versions, also pneumatic tools.
- Max. sheet thickness steel 400 N/mm²5.0 mm
- Max. sheet thickness steel 600 N/mm²3.2 mm
- Max. sheet thickness steel 800 N/mm²2.5mm
- Max. aluminum sheet thickness 250 N/mm²7.0 mm
