Trumpf Seam Lockers TruTool F125/F140/F300/(F300 with 1700watt motor) & F301
Seam locker-Super-fast sealing, For heating and ventilation engineers, TRUMPF seam lockers are essential for their daily work, as well as for the construction of façades, fireplace coverings or industrial fans. For both Pittsburgh lock seams as well as angle and standing seams, you will find the correct tool with TRUMPF.
Tight seam joints without force-The seam lockers operate with an automatic feed. This means you achieve a consistently high seam quality.
Comfortable operation-You can work quickly, and with low noise and vibration.
Faster and easier use-The seam lockers are ready for use in just a few steps; their handling is extremely simple.
Mobile use-You can use the seam lockers directly at the assembly point, even on mounted ducts.

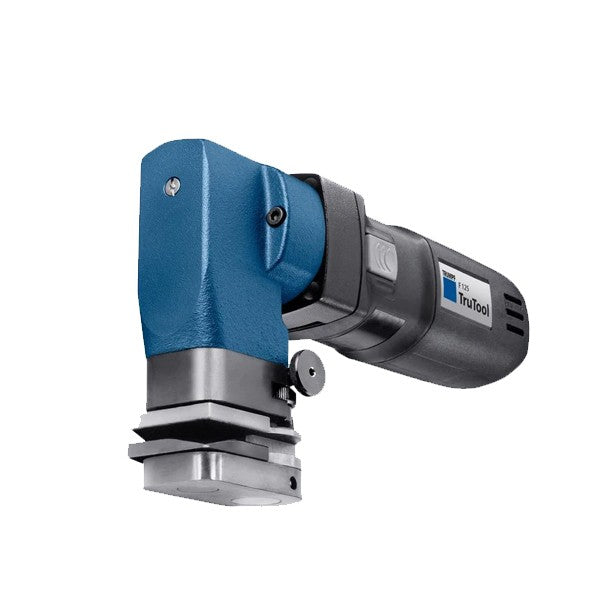

TruTool F125 closes angle and standing seams with a spring-loaded hammer. This gives you tightly closed seams with consistent quality, even with variations in sheet thickness. The maximum seam height is 1.57 in. The free-standing tool allows you to work well even in tight corners and angles.

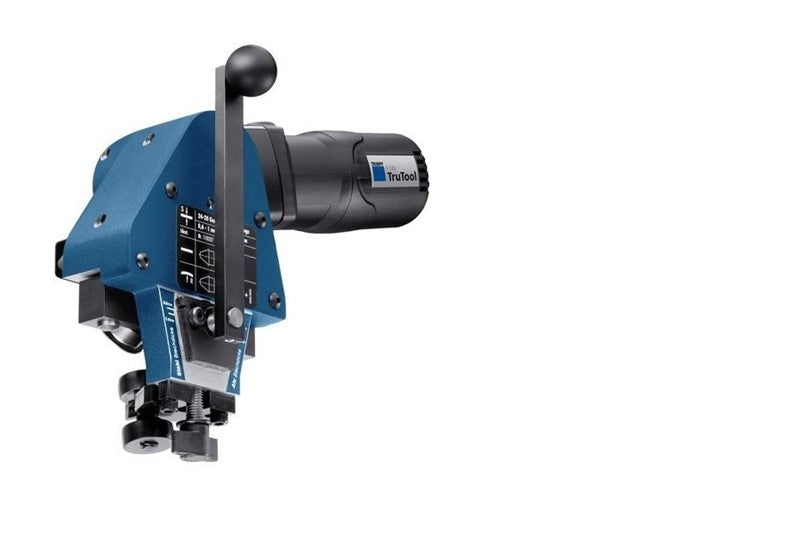

TruTool F140 Pittsburgh seams on straight or curved ducts with sheet thicknesses of 0.6 mm – 1.4 mm, can be closed with ease. The machine is also ideally suited to processing stainless steel. The TruTool F 140 adapts automatically to the sheet thickness. There is also no need for refitting when processing formed or folded pieces.

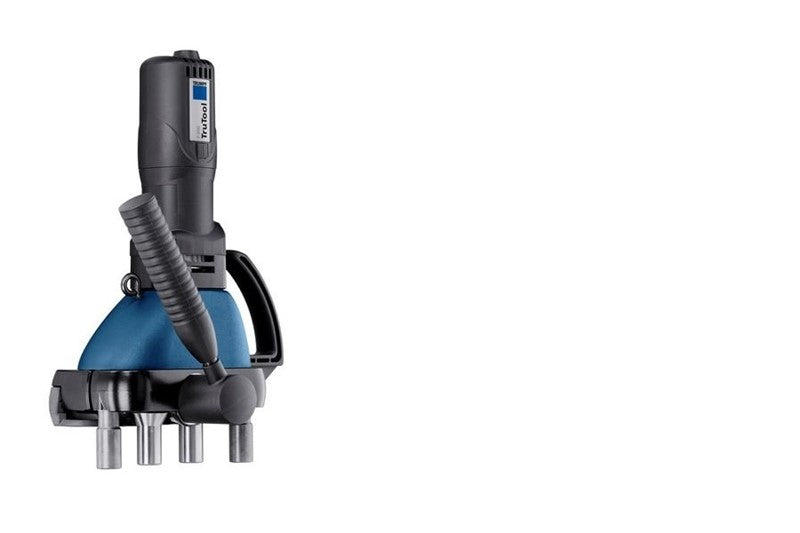

TruTool F300 is ideal for closing Pittsburgh seams on straight or curved ducts. You can work quickly with the quiet roll/glide process and achieve a tight connection. The sheet thickness range for this is 0.03 inches to 0.05 inches for mild steel. The adjustment to the sheet thickness is automatic.
TruTool F300 with 1700 watt motor is the perfect machine if you prefer to work in the sheet thickness range starting from 0.04 in. for mild steel. You can close Pittsburgh seams on straight or curved ducts perfectly with its powerful motor and matching high working speed. The adjustment to sheet thicknesses of 0.75 mm – 1.25 mm in mild steel is automatic. You therefore achieve high-quality, tightly joined seams.

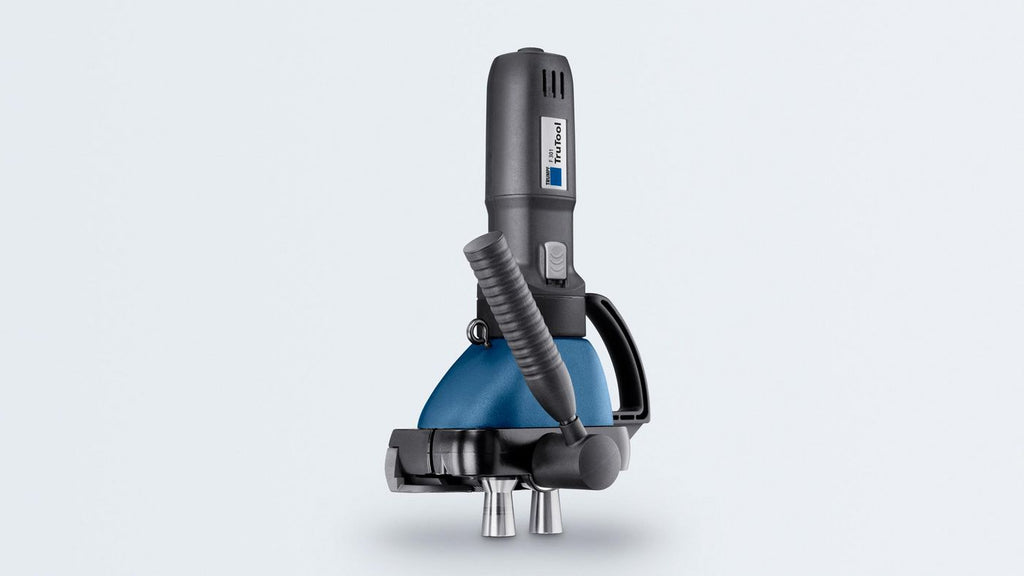

TruTool F301 you can close Pittsburgh seams effortlessly on straight or curved ducts with sheet thicknesses of 0.018 in. - 0.04 in. for mild steel. There is no need for refitting when processing formed or folded pieces. The adjustment to the sheet thickness is automatic and the forward feed guarantees a consistent and tight seam.
