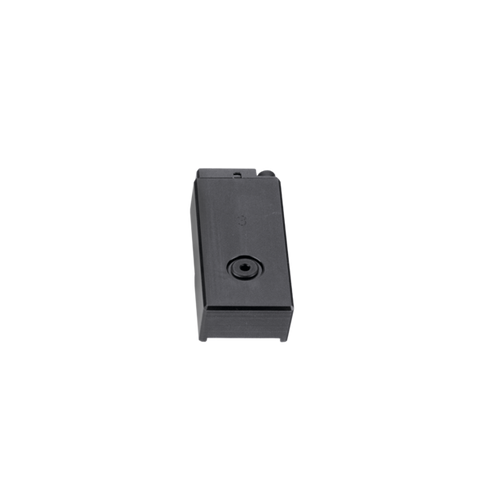

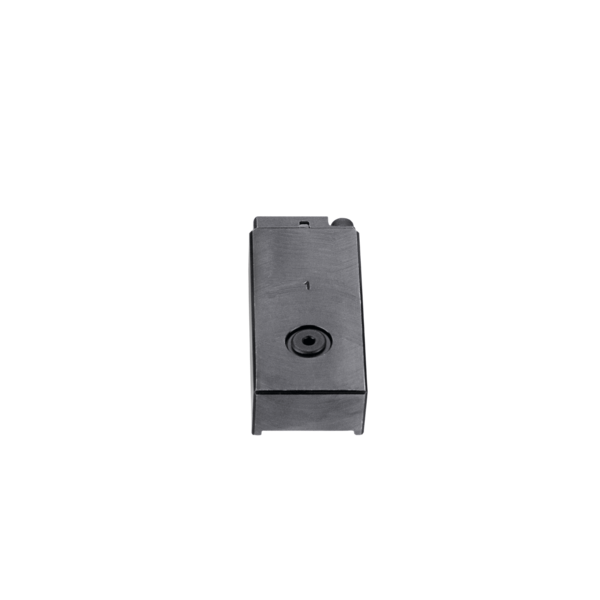

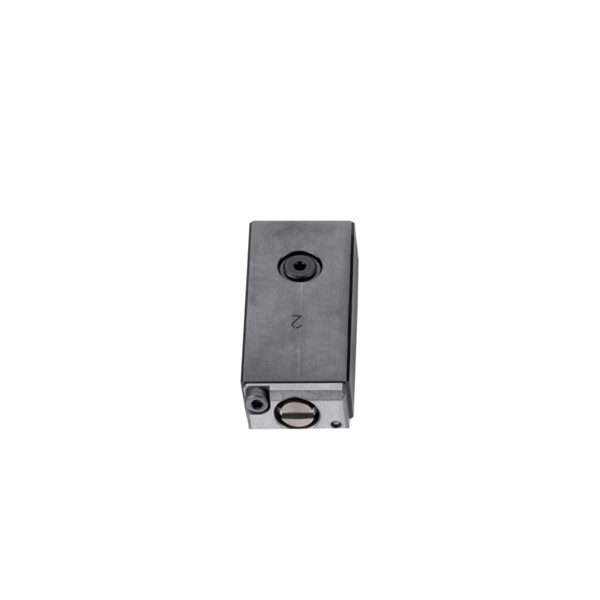

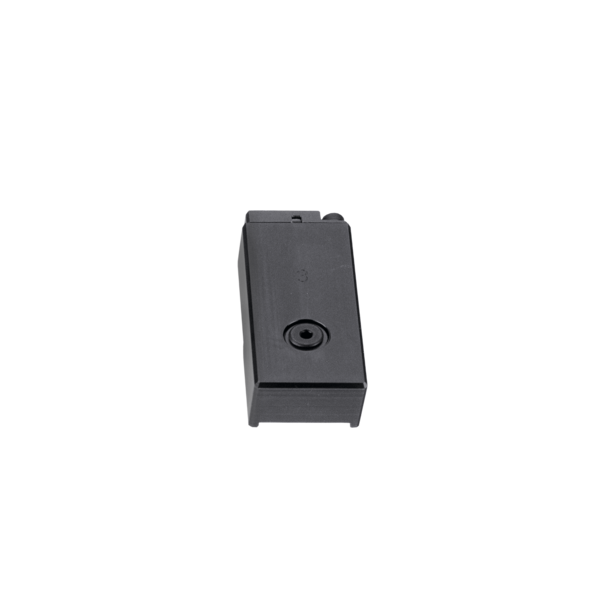

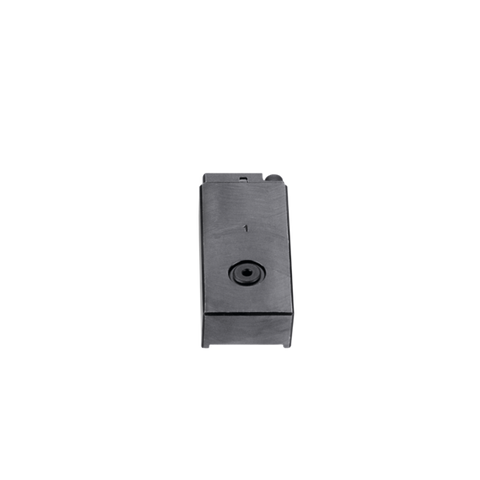

Trumpf Swivel Arm Dies
TRUMPF die arms are specialized components, primarily used in TruTool power Fasteners to hold the die for joining metal sheets, offering both fixed and tilting configurations for various, high-quality, and robust connecting applications. They enable efficient, non-contact, and noise-free fastening of similar or dissimilar materials, even with intermediate layers.
Functions
- Fastener Support: In TruTool power fasteners the die arm (along with the punch arm) is essential for aligning the tool to produce strong, consistent joints (joining points) in metal sheets.
- Versatility in Joining: They support joining different material thicknesses and types, including coated sheet metal, mild steel, stainless steel, and aluminum.
-
Application Flexibility:
- Tilting Die Arm: Used for upwards joining directions, offering flexibility in handling complex, narrow, or hard-to-reach profiles.
- Fixed Die Arm: Used for downward joining directions, providing stability for standard fastening tasks.
- Specific Applications: Primarily used in ventilation and heating duct construction for joining connection flanges, as well as in other sheet metal fabrication tasks.
- Robustness: Designed to ensure high-quality and durable connections that are robust against structural stress
These arms, along with the corresponding punch arms, allow the TruTool power fasteners to be customized for specific material thicknesses and joint requirements.
