Trumpf TKF700/TKF1500 & TKF1500-2 Speed TKF Bevellers
Beveler-A cost-effective process for high-quality weld seams
The bevellers have proven themselves in machine, railway car, and ship construction, as well as in steel construction, in job shops for sheet metal processing and in metalworking shops. They ensure even, oxide-free and metallically smooth edges on flat sheet metal, tubes, interior cutouts, and curves.

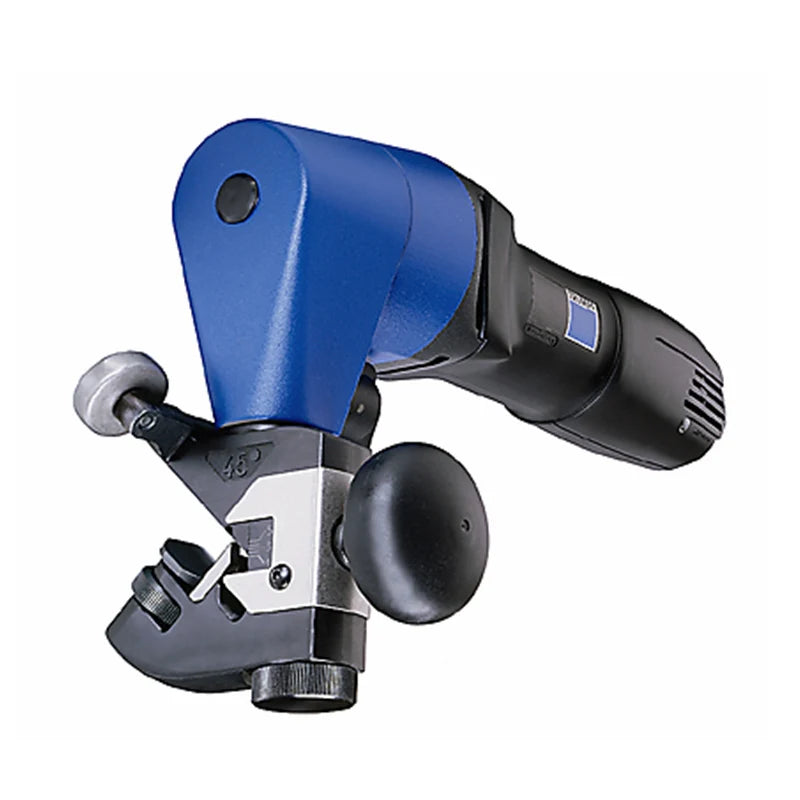

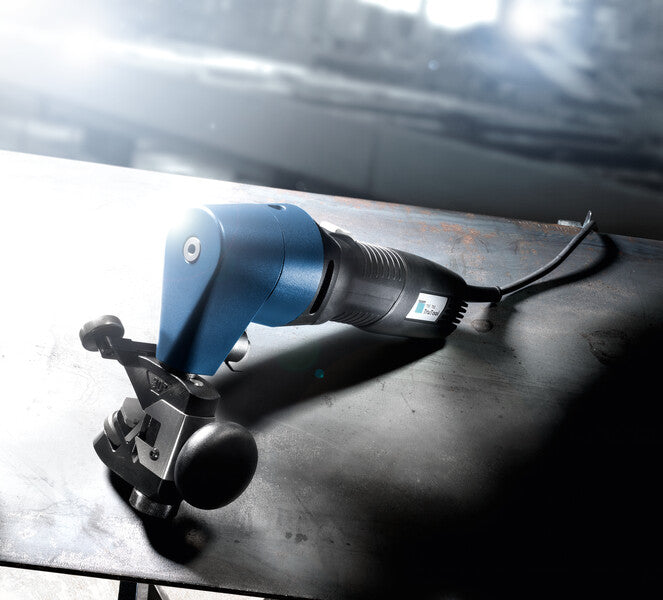

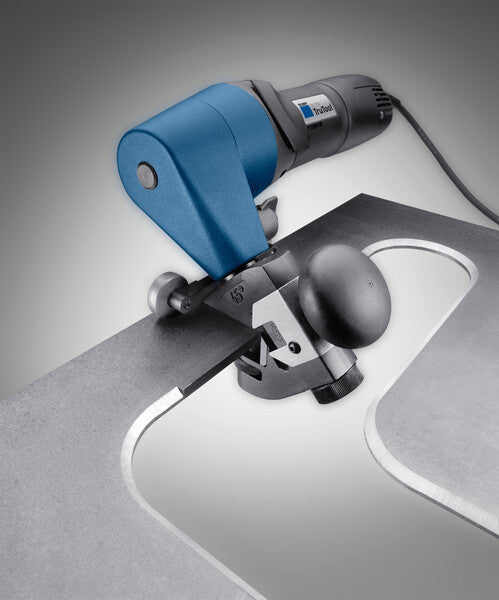

TruTool TKF 700 - Extraordinarily light and handy beveller with 12 lbs. For individual bevel angles, you have the choice between three carriers. The TruTool TKF 700 has two different cutters to choose from, which you can select and use depending on the strength of the sheets. The standard cutter is very well-suited for processing aluminum and mild steel up to 400 N/mm2. The high-tensile cutter is ideal for processing high-tensile materials from 85,000 – 114,000. The TruTool TKF 700 is well-suited for processing small workpieces. For this purpose, use the machine stationary in the work station.

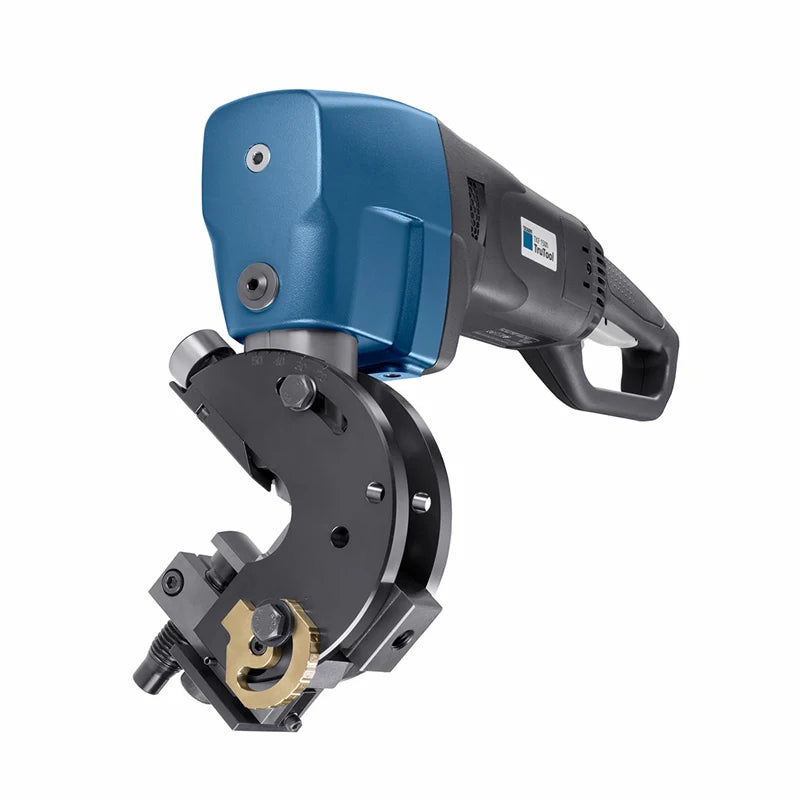

TruTool TKF 1500 - With the TruTool TKF 1500 beveller, you can continuously adjust the bevel angle from 20° to 55°. The 2,600 W motor ensures the highest durability. Hand protection, integrated on the motor, ensures a high degree of user-friendliness and safe operation. The soft grip ensures user-friendly operation with low vibrations. This means you can always expect consistent, oxide-free results. Regardless of whether you are processing straight sheets, T-beams, or tubes. The surface roughness remains low.
TruTool TKF 1500 with 2-gear gearbox - The 2-gear gearbox enables you to perform tasks adapted for the specific application. Ideal for high-tensile sheets. With continuously adjustable bevel angles from 20° to 55°. There are five cutting tools to choose from. This enables you to achieve perfect results across a wide range of applications. The material being processed is crucial when it comes to choosing the right cutting tool. The cutting tools can be changed without the need for additional tools, and you can regrind them many times over. This results in a long service life and reduces your operating costs.
