Trumpf TruTool TKA700/TKA1500 TKA Edge Trimmers
-Perfect for every angle ;Optionally, 0°-multi-edge cutter mounts and multi-edge cutter mounts from 15° to 60° are available in 5° increments.
-Versatile use; For straight edges, inner and outer contours, holes and for tube processing.
-Fixed setting; The selected chamfer length is maintained continuously throughout the entire processing procedure. This prevents accidental adjustment.
-Operations; Chamfer lengths of up to 5 mm can be easily produced in one single operation. A second work step is required for a chamfer length of 7 mm.
-Strong performance; The 1700-watt motor is extraordinarily compact, giving it a very high power density.
-Reduced vibrations; Thanks to buffer elements in the gearing, combined with a perfectly positioned hand grip.

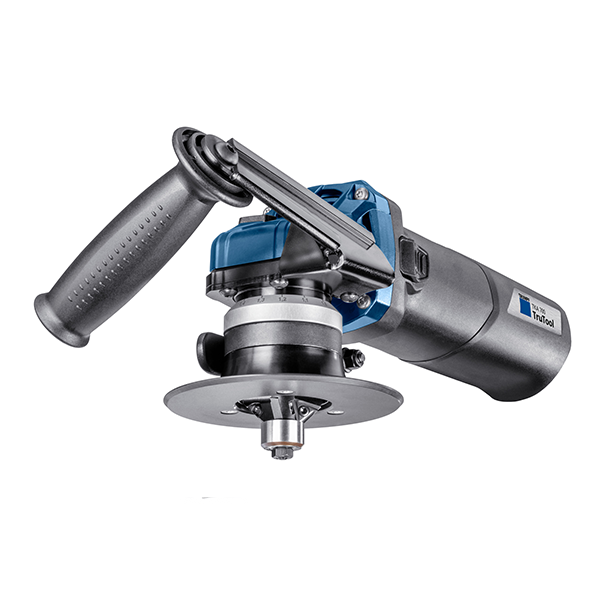

TruTool TKA700 Deburrer You can generate chamfer lengths of up to 7 mm in angular positions of 0° - 60° with the powerful deburrer, with 45 degree tool can be used to make K, V, X and Y shaped bevel preparations on flat sheets and pipes.
-You can give components clean visible edges, break sharp edges, apply a radius of 2, 3 or 4 mm or prepare a weld seam
-Equipped with a powerful 1700 watt drive
-Perfectly designed hand grip reduces vibrations, provides ergonomics and stable machine control.
-For straight edges, inner and outer contours, holes and for tube processing
-You can give components clean visible edges, break sharp edges, apply a radius of 2, 3 or 4 mm or prepare a weld seam
-Equipped with a powerful 1700 watt drive
-Perfectly designed hand grip reduces vibrations, provides ergonomics and stable machine control.
-For straight edges, inner and outer contours, holes and for tube processing

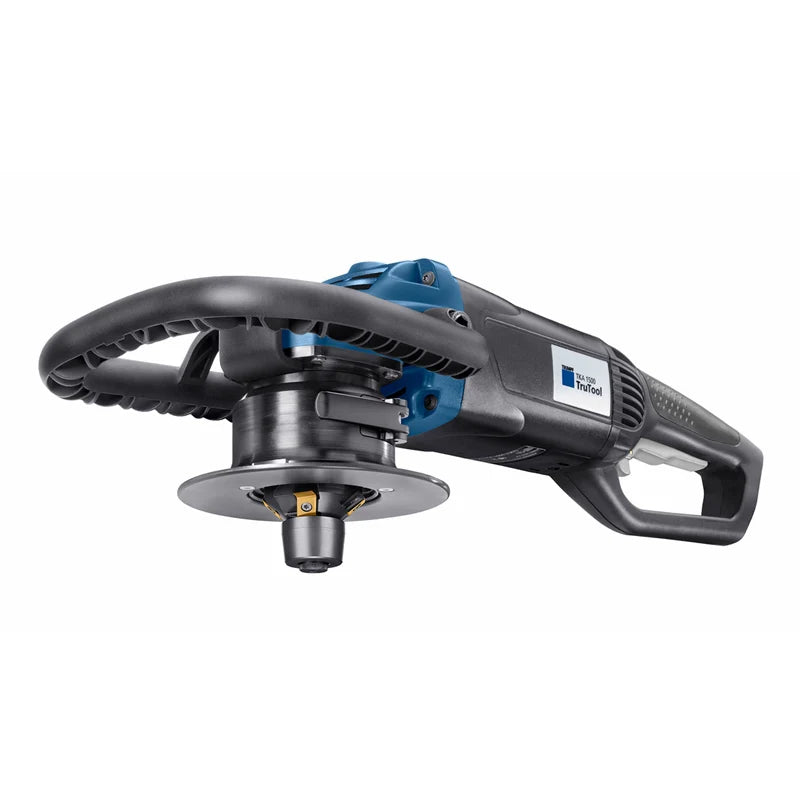

TruTool TKA1500 Deburrer - The robust edge trimmer is designed for chamfer lengths of up to 15 mm and has particularly ergonomic handling, Creates chamfer lengths up to 15cm.
- Excellent guidance. Handle shape, size and positioning are perfectly designed to ensure ergonomic working.
- In the blink of an eye. Chamfer lengths can be set as required without needing any tools.
- Consistent edge quality. High-quality results with burr- and oxide-free surfaces, dust-free, without material change and at a constant angle adjustment.
- Versatile use. For straight edges, inner and outer contours and holes larger than 80 mm
Applications
- T-beam and flat sheet - For rounded edges with a radius of 2 mm, 3 mm or 4 mm. For deburring and welding seam preparation.
- For straight and curved sheet parts- For rounded edges with a radius of 2 mm, 3 mm or 4 mm. For deburring and welding seam preparation.
The robust TruTool TKA 1500 deburrer creates precisely fitting chamfer lengths of up to 15 mm at angles of 30°, 45° and 60°.
-You can then achieve instant high-quality, repeatable edges without any reworking
-Produce clean visible edges, break sharp edges, apply a radius or prepare a weld seam
-Ergonomic guide and motor handle, the machine is unrivalled in its ease of use.
