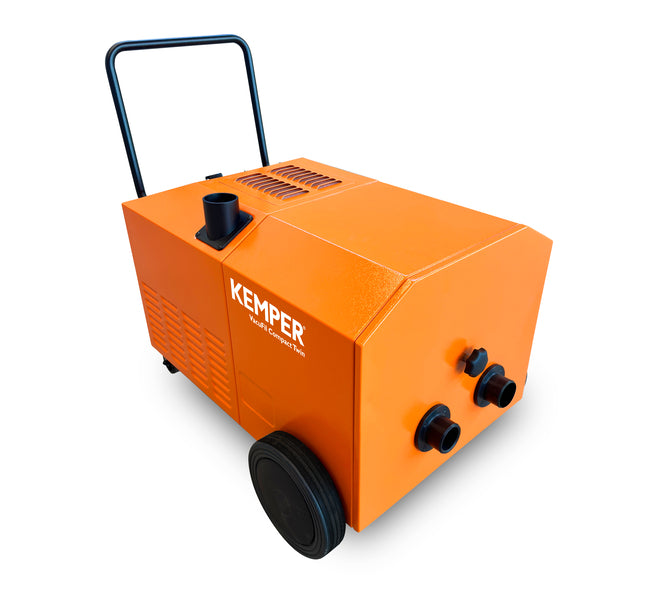

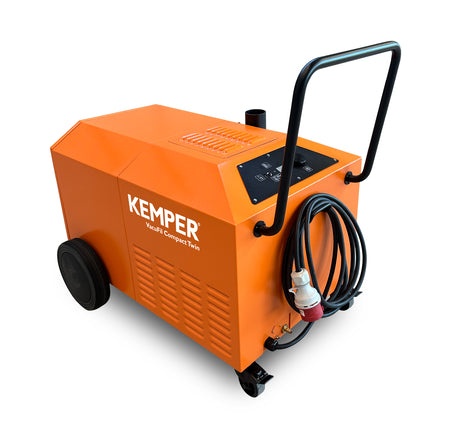

Kemper 82380 VacuFil Compact Twin - 3 x 400V/3 x 600V - Cleanable Filter
Simple one-button operation. Maximum performance.
The high vacuum extraction unit VacuFil Compact is designed for medium quantities of welding fumes and dust. It has a large disposable filter and comfortable one-button operation, even with gloves. Many additional features such as automatic air volume control are available. The side channel blower for negative pressure provides robust performance for industrial users.
Precisely adjustable extraction performance for optimal results
Flexible, powerful and cost-effective – for reliable extraction in a wide range of applications. The following advantages at a glance:
Features
- Step-less pre-selection of the extraction power for the use of various extraction torches
- Intuitive one-button operation, for use with gloves
- Outstanding price-performance ratio thanks to a wide range of additional features

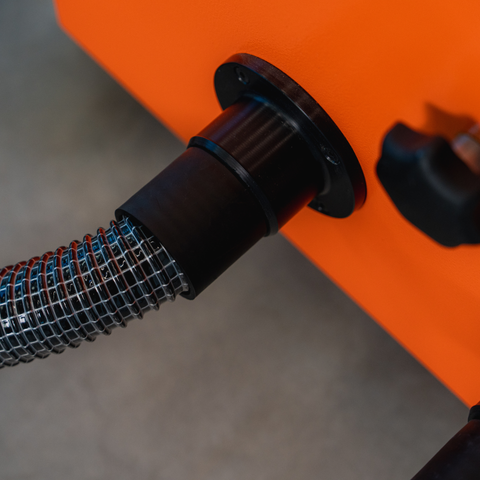

- High flexibility thanks to two connections with NW45 / 63mm each
- Extensions can be integrated via interface
- For permanent use with cleanable filter
- High levels of smoke and particles
- Regular use
- Torch extraction
- For two work places
- Alternating work places
| Dimensions | |
|---|---|
| Weight in kg: | 93 |
| Dimensions (depth) in mm: | 1018 |
| Dimensions (width) in mm: | 692 |
| Dimensions (height) in mm: | 878 |
| Filter | |
| Filter stages: | 1 |
| Filter area in m²: | 7 |
| Separation efficiency in % ≥: | 99.9 |
| Connections | |
| Air outlet in mm: | 63 |
| Connection nozzle Ø in mm: | 45 |
| Performance | |
| Min. negative pressure in Pa: | 32000 |
| Max. fan capacity in m³/h: | 280 |
| Extraction capacity in m³/h: | 280 |
| Extraction capacity at 18000 Pa in m³/h: | 215 |
| Max. negative pressure in Pa: | 32000 |
| Max. extraction capacity in m³/h: | 280 |
| Technology | |
| Motor power in kW: | 3.8 |
| Rated current in A: | 8.1 |
| Sound pressure level in dB(A): | 73 |
| Compressed air supply in bar: | 6-8 |
