Work flexibly - exhaust arms with a reach of up to 7 meters
KEMPER exhaust arms unite high flexibility with ergonomic and safe workplace design. They can be used to extract welding smoke, gases and vapours as well as light dusts or solvents. With arms extending up to 6 meters, they are suitable for many different environments.

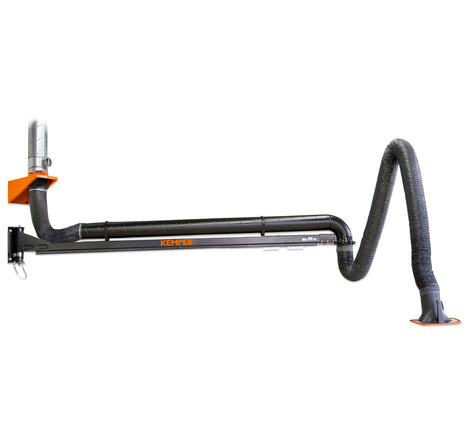

KEMPER Welding Fume Exhaust Arm 2 Joints
Benefits
- Reduced tripping hazard by attaching tools or wire feed unit to the boom with carriage
- 40% less adjustment of the exhaust arm needed due to exhaust hood design
- User-friendly due to particularly smooth movement of the hood with one hand
- Arm keeps position due to self-supporting design
- Fast operation due to long reach and particularly flexible adjustment
- Various options to connect the exhaust arms to fans, stationary devices or via duct work to central extraction and filtration systems
Properties
- 360 degrees rotating exhaust hood with damper
- Self-supported by internal springs
- Boom with 50 kg load capacity
- Boom with integrated C-rail with carriage
- Exhaust arms up to 6 m (with boom)
Applications
- For connection to fans or central extraction systems
- High levels of smoke and particles
- Non-stop operation
- Welding fumes, gases, vapours, light dusts
- Large workpieces
Scope of Supply
- Exhaust arm with hood
- Boom
- Wall bracket
Variants
- Various arm lengths and versions
Basic data
| Weight | 63 kg |
Additional information
| Exhaust arm type | flexible exhaust arm |
| Diameter extraction arm | 150 mm |
| Length of boom | 2 m |
| Length of exhaust arm | 3 to 5 m |
| Total length | 5 to 7 m |
| Joints | 2 |
