-Welding smoke exhaust set with extraction arm and fan
The welding fume exhaust kit consisting of exhaust arm and fan is a particularly simple and cost-effective solution anywhere where air filtration is not essential. It is suitable for high levels of smoke and dust such as welding fumes, gases, vapours, light dusts or vehicle exhaust fumes in non-stop operation.
- Arm & Fan Kit
- Rigid & Flexible Arm Options
- 2 to 4m Arm Length
- 1000 m³/h Extraction Capacity
Benefits
- Very quiet due to housing of cast silumin
- 40% less adjustment of the exhaust arm needed due to exhaust hood design
- User-friendly due to particularly smooth movement of the hood with one hand
- Arm keeps position due to self-supporting design
Properties
- 360 degrees rotating exhaust hood with damper
- Self-supported by internal springs

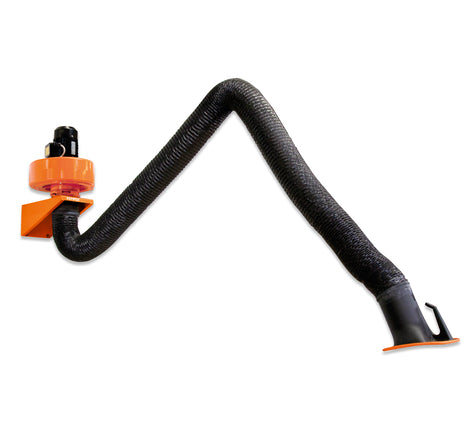

- As a flexible exhaust arm: Polyester fabric hose, PVC coated with welded steel wire spiral

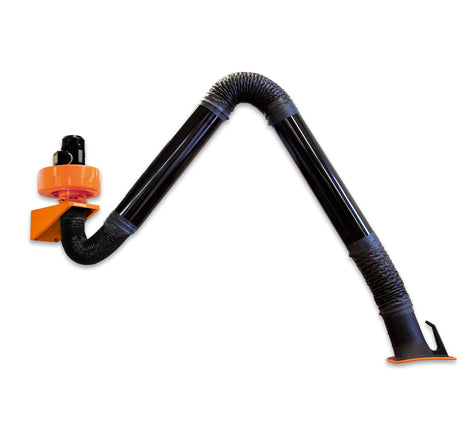

- As a rigid metal tube arm: Powder-coated aluminum tube, three flexible hose sections
- Fan made of spark-proof cast silumin
Applications
- High levels of smoke and particles
- Non-stop operation
- Where filtration is not essential
- Welding fumes, gases, vapours, light dusts
Scope of Supply
- Fan
- Exhaust arm with hood
- Wall bracket
- Motor protection switch
- Set of connecting material
- Connecting pipe extendable from 1,25 m to 5 m with outlet
Variants
- Various arm lengths and versions
- Other voltages
Basic data
| Extraction capacity | 1000 m³/h |
| Max. fan performance | 2000 m³/h |
| Weight | 41 kg |
| Motor power | 0.75 kW |
| Power supply | 3 x 400 V / 50 Hz |
| Rated current | 1.5 A |
| Noise level | 73 dB(A) |
Additional information
| Fan type | Radial fan |
| Quantity of extraction arms | 1 |
| Exhaust arm type | rigid metal tube arm/flexible exhaust arm options |
| Diameter extraction arm | 150 mm |
| Length of exhaust arm | 2 to 4 m |
