Welding smoke exhaust set with extension boom arm, exhaust arm and fan
The welding fume exhaust kit consisting of boom, exhaust arm and fan is a particularly simple and cost-effective solution anywhere where air filtration is not essential. Due to the length, flexible, fast work is very easy, even with large workpieces. It is suitable for high levels of smoke and dust such as welding fumes, gases, vapours, light dusts or vehicle exhaust fumes in non-stop operation, Available in various arm lengths, types and capacities.
Basic data
| Extraction capacity | 950 to 1000 m³/h |
| Weight | 84.5 to 107 kg |
| Motor power | 0.75 to 1.1 kW |
| Power supply | 3 x 400 V / 50 Hz |
| Rated current | 1.5 A |
| Noise level | 73 dB(A) |
Additional information
| Fan type | Radial fan |
| Exhaust arm type | rigid metal tube/flexible arm options |
| Diameter extraction arm | 150 mm |
| Length of boom | 2 to 3 m |
| Length of exhaust arm | 3 to 4 m |
| Total length | 5 to 7 m |
Benefits
- Reduced tripping hazard by attaching tools or wire feed unit to the boom with carriage
- Very quiet due to housing of cast silumin
- 40% less adjustment of the exhaust arm needed due to exhaust hood design
- User-friendly due to particularly smooth movement of the hood with one hand
- Arm keeps position due to self-supporting design
- Flexible, fast work due to long reach
Properties
- 360 degrees rotating exhaust hood with damper
- Self-supported by internal springs

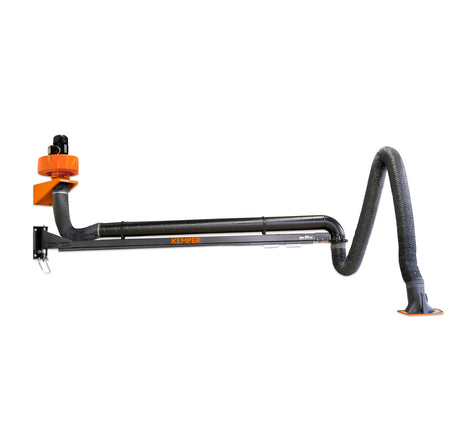

- As a flexible exhaust arm: Polyester fabric hose, PVC coated with welded steel wire spiral

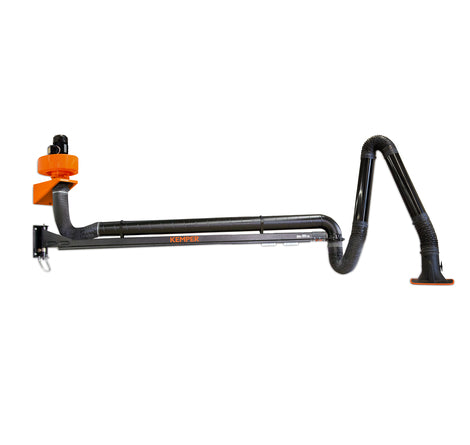

- As a rigid metal tube arm: Powder-coated aluminium tube, three flexible hose sections
- Fan made of spark-proof cast silumin
- Boom with 50 kg load capacity
- Boom with integrated C-rail with carriage
Applications
- High levels of smoke and particles
- Non-stop operation
- Where filtration is not essential
- Welding fumes, gases, vapours, light dusts
Scope of Supply
- Fan
- Exhaust arm with hood
- Wall bracket
- Motor protection switch
- Set of connecting material
- Connecting pipe extendable from 1,25 m to 5 m with outlet
Variants
- Various arm lengths and versions
- Other voltages
