Work flexibly - extraction arms for dust with a reach of up to 4 meters

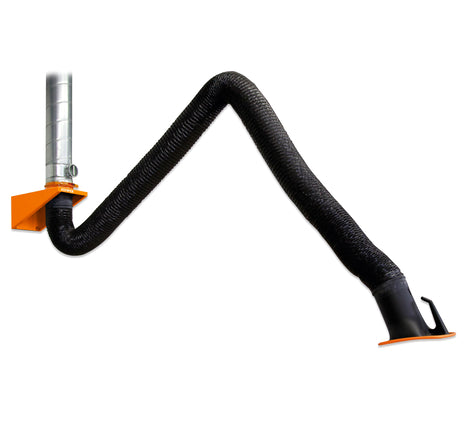

The KEMPER air dust extraction arm is used for a single work station in conjunction with a fan or for multi-user stations using ducting connected to a central extraction and filter unit. The extraction arm is designed for continuous use and is suitable for high levels of fume, smoke and dust such as welding fumes, gases, vapours, light dusts or motor vehicle exhaust fumes.
Benefits
- Fast operation due to particularly flexible adjustment
- 40% less adjustment of the exhaust arm needed due to exhaust hood design
- User-friendly due to particularly smooth movement of the hood with one hand
- Arm keeps position due to self-supporting design
- Various options to connect the exhaust arms to fans, stationary devices or via duct work to central extraction and filtration systems
Properties
- 360 degrees rotating exhaust hood with damper
- Self-supported by internal springs
Applications
- For connection to fans or central extraction systems
- High levels of smoke and particles
- Non-stop operation
- Welding fumes, gases, vapours, light dusts
Scope of Supply
- Exhaust arm with hood
- Wall bracket
Variants
- Various arm lengths and versions
Basic data
| Weight | 17 kg |
Additional information
| Exhaust arm type | flexible & rigid exhaust arm options |
| Diameter extraction arm | 150 mm |
| Length of exhaust arm | 2 to 4m |
| Joints | 1 |
