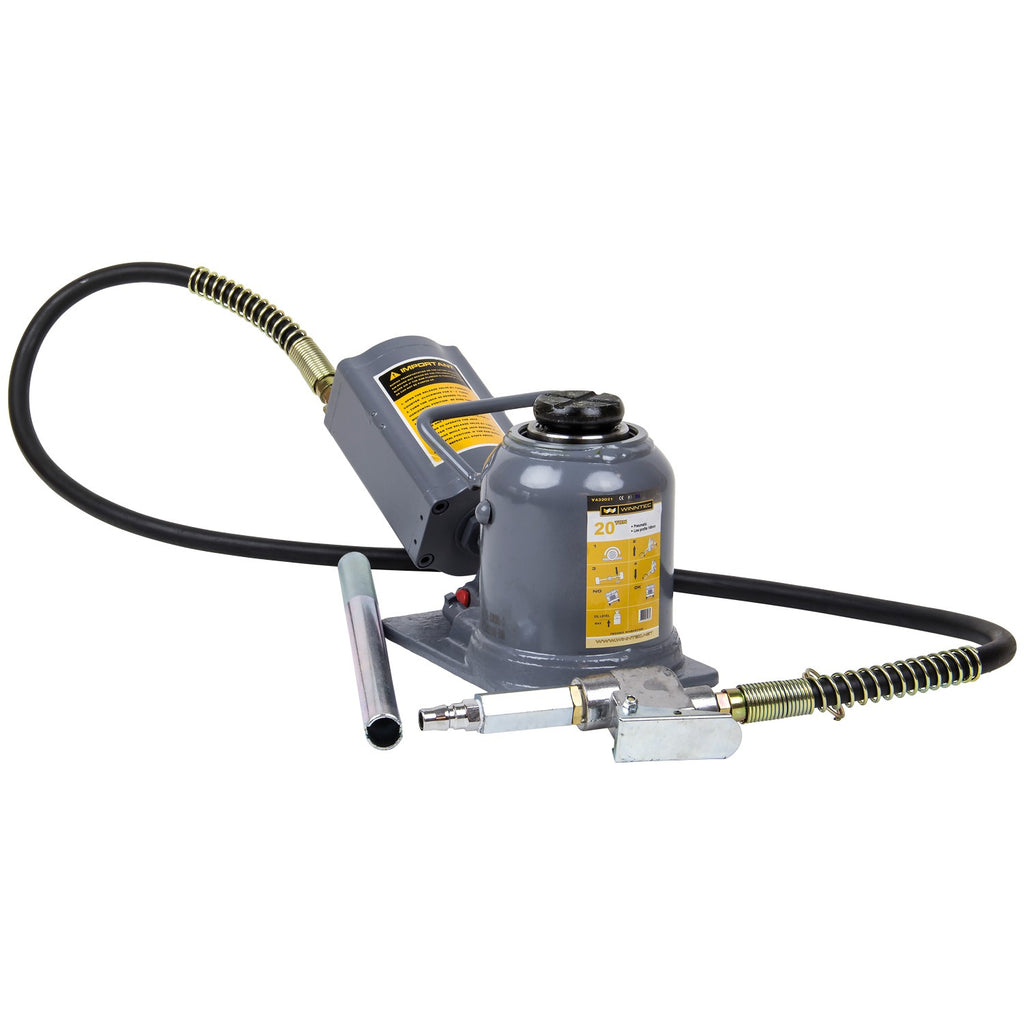

The WINNTEC® from SIP 20 TON Low-Profile Air Bottle Jack offers easier and safer lifting of vehicles both large and heavy, by providing powerful air-assisted horizontal and vertical performance, and lifting up to 260mm along with a versatile 80mm screw extension.
Suitable for automotive and commercial vehicles in garages and workshops.
KEY FEATURES
- 148mm to 260mm lifting height range
- 45mm screw extension for improved versatility
- Low-profile design ideal for performance vehicles
- Designed for horizontal and vertical operation
- Aluminium air motor for heavy-duty performance
- WINNTEC® from SIP 3-Year Warranty
WINNTEC 3-Year Warranty*
Full Specification
The WINNTEC® from SIP 20 TON Low-Profile Air Bottle Jack utilises a combination of heavy-duty components and air-assisted lifting to provide powerful performance in automotive and commercial applications, offering safe support of all types of vehicles, including sports and performance cars with a lower profile.
Designed for horizontal and vertical operation, this bottle jack is extremely versatile.
- 20 TON maximum weight capacity
- 148mm to 260mm lifting height range
- 45mm screw extension for improved lifting versatility
- Low-profile design perfect for performance vehicles
- Heavy-duty welded wide base helps spread weight evenly
- Designed for both horizontal and vertical operation
- Heavy-duty aluminium air motor for rugged performance
- Heat-treated cylinder wall for added durability
- Durable polished ram and chromed pump pistons
- Integrated overload protection for safety
- Air filters help prevent contamination
- Quality European design for performance
- WINNTEC® from SIP 3-Year Warranty
Technical Information
ITEM NO. 09829 Weight Capacity: 20 TON Min. Lifting Height: 148mm Max. Lifting Height: 260mm Screw Extension: 45mm Air Consumption: 5CFM (140ltr/min) Net Weight: 10.00kg Gross Weight: 11.00kg Product Dimensions: Packaged Dimensions: 165(H) x 165(W) x 355mm(D)
