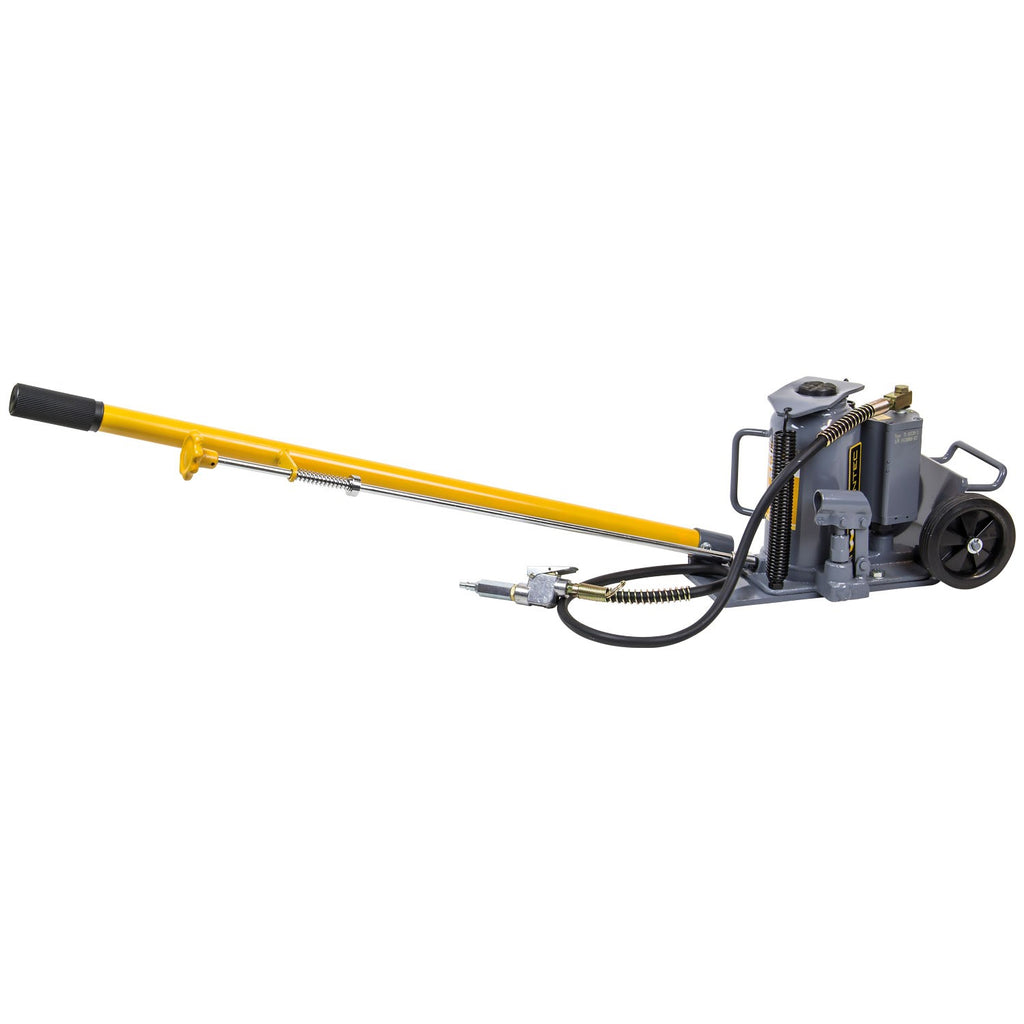

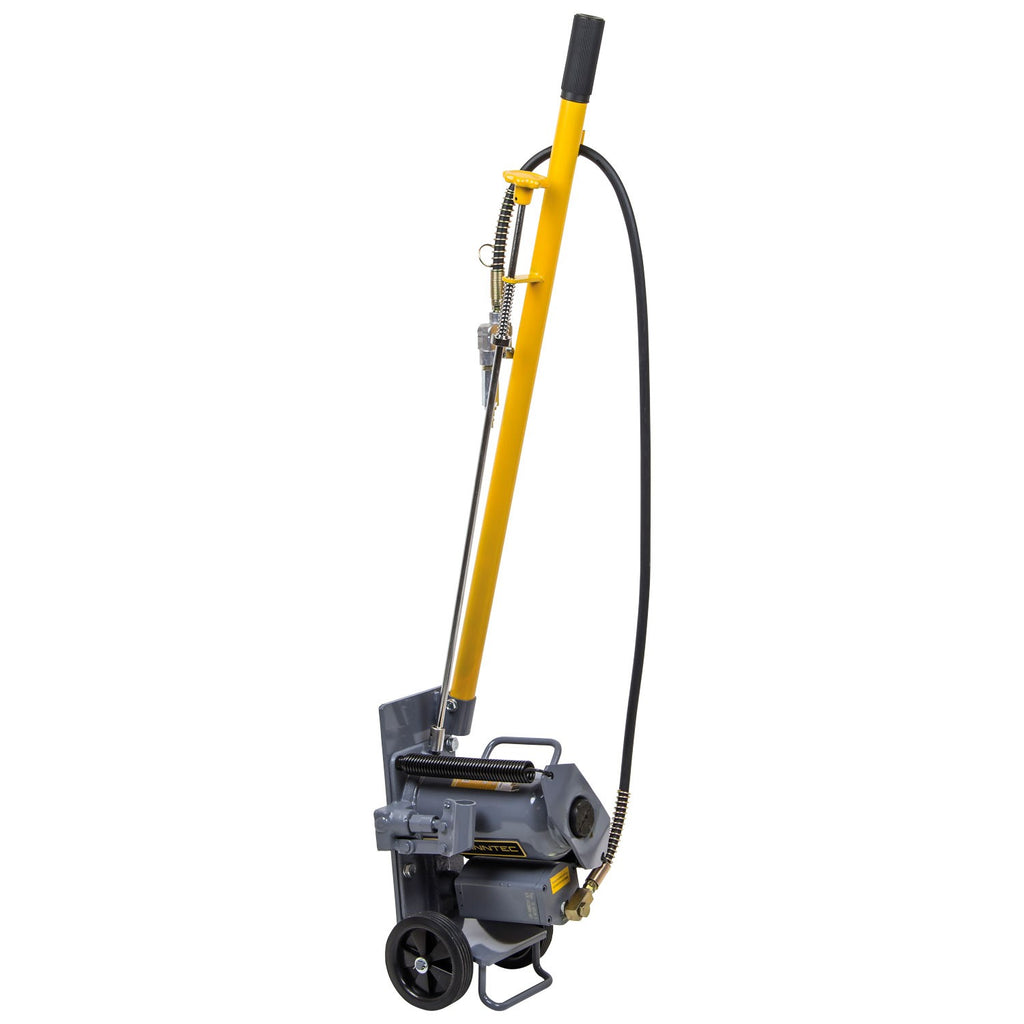

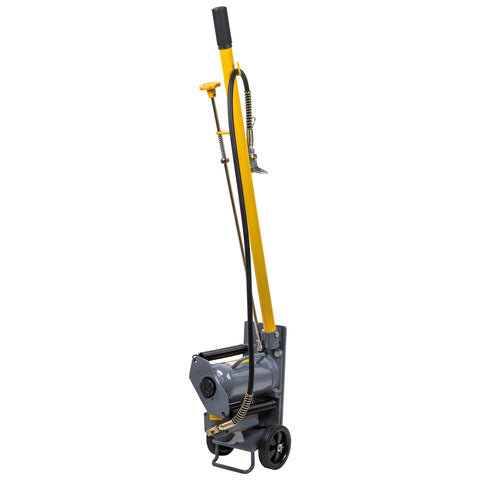

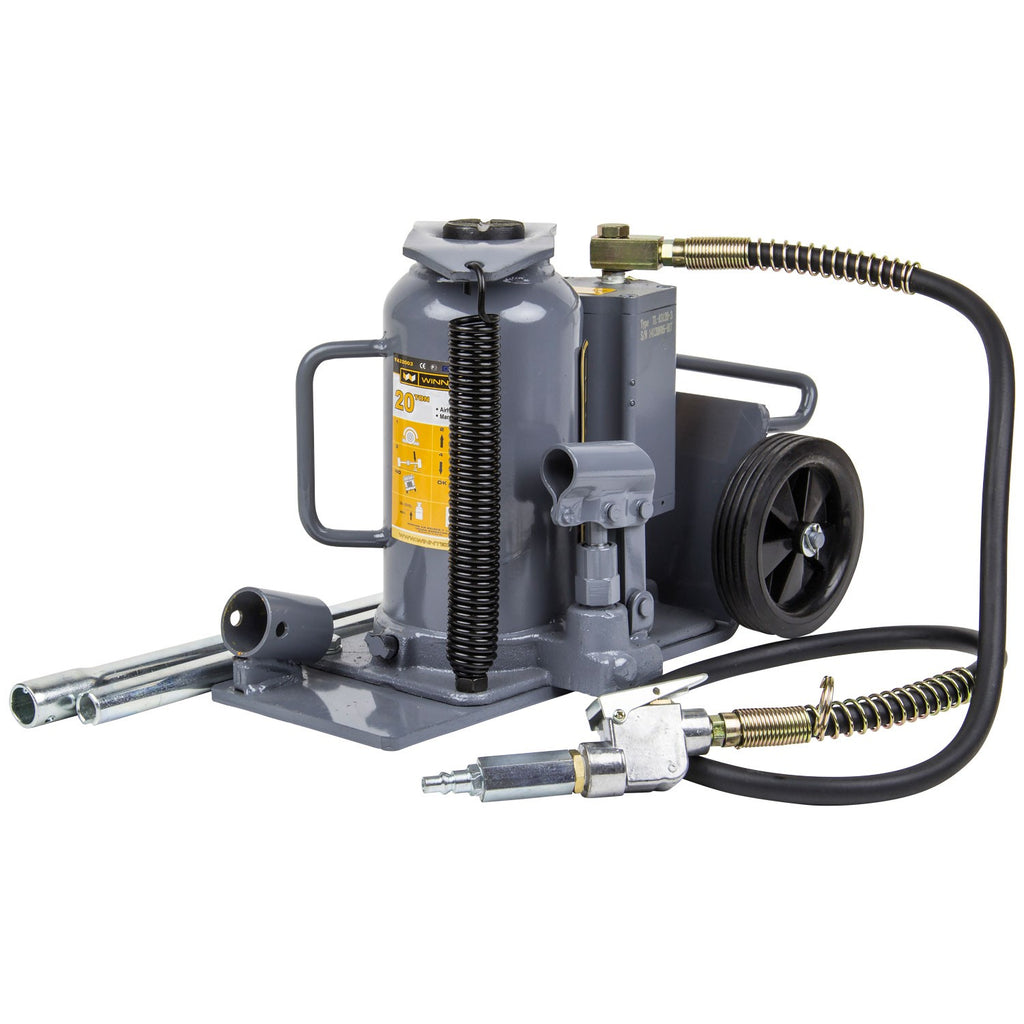

The WINNTEC® from SIP 20 TON Trolley Air Bottle Jack is perfect for pushing and pressing in garages and workshops, with versatility through mobile design with wheels and wide base, perfect for rugged performance along with a range of heavy-duty components.
Suitable for automotive and commercial vehicles in garages and workshops.
KEY FEATURES
- 253mm to 480mm lifting height range
- 80mm screw extension for improved versatility
- Wheeled design perfect for simple positioning
- Heavy-duty wide cast iron base spreads weight
- Designed for horizontal and vertical operation
- WINNTEC® from SIP 3-Year Warranty
WINNTEC 3-Year Warranty*
Full Specification
The WINNTEC® from SIP 20 TON Trolley Air Bottle Jack is perfect for pushing and pressing in automotive and commercial applications in a variety of garages and workshops, offering exceptional versatility through horizontal and vertical use, with easy positioning achieved through a wide based design and wheels.
Heavy-duty components, including chromed pistons and polished main ram, ensures extremely reliable and rugged performance with smaller and larger vehicles.
- 20 TON maximum weight capacity
- 253mm to 480mm lifting height range
- 80mm screw extension for improved lifting versatility
- Low-profile design perfect for performance vehicles
- Heavy-duty welded wide base helps spread weight evenly
- Designed for both horizontal and vertical operation
- Heavy-duty aluminium air motor for rugged performance
- Heat-treated cylinder wall for added durability
- Durable polished ram and chromed pump pistons
- Integrated overload protection for safety
- Air filters help prevent contamination
- Quality European design for performance
- WINNTEC® from SIP 3-Year Warranty
Technical Information
ITEM NO. 09844 Weight Capacity: 20 TON Min. Lifting Height: 253mm Max. Lifting Height: 480mm Screw Extension: 80mm Air Consumption: 5CFM (140ltr/min) Net Weight: 21.00kg Gross Weight: 22.00kg Product Dimensions: Packaged Dimensions: 280(H) x 260(W) x 430mm(D)
