The WINNTEC® from SIP 24 TON Air Service Jack is designed for heavy-duty performance, ascending and descending safely with air which, when combined with chromed pistons and ram, offers reliable lifting of larger, heavier, and more demanding vehicles.
Suitable for a range of demanding lifting in garages and workshops.
KEY FEATURES
- 141mm to 441mm lifting height range
- One-stage heavy-duty hydraulic lifting system
- Safely ascends and descends with air for ease-of-use

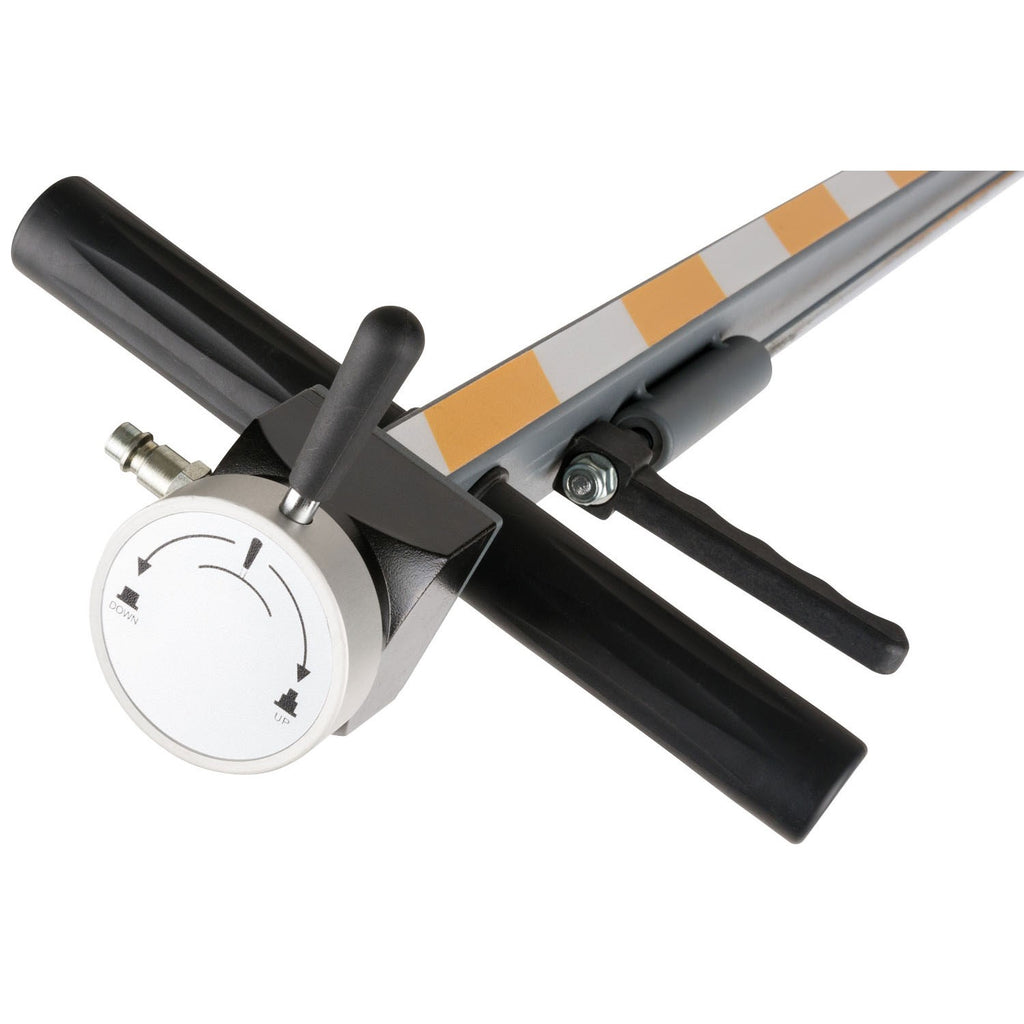

- Wheel-mounted with long handle for simple positioning
- WINNTEC® from SIP 3-Year Warranty
WINNTEC 3-Year Warranty*
Full Specification
The WINNTEC® from SIP 24 TON Air Service Jack offers powerful lifting and extremely heavy-duty performance across a range of larger and heavier vehicles which require a versatile lifting range, accommodating easy hydraulically-assisted lifting up to 441mm.
Operators are protected to the highest standard in all lifting applications through a number of safety features, including dead mans controls, and durable components.
- 24 TON maximum weight capacity
- 141mm to 441mm lifting height range
- One-stage hydraulic lifting system for increased ease-of-use
- Easily ascension and descension with air for user protection
- Supplied with 3 versatile extensions,: 20mm, 50mm, and 100mm
- Wheel-mounted design with long handle for simple positioning
- Built-in dead mans controls for reliable user safety
- Heavy-duty hard chromed piston and main ram
- Quality European design for performance
- WINNTEC® from SIP 3-Year Warranty
Technical Information
ITEM NO. 09890 Weight Capacity: 24 TON Min. Lifting Height: 141mm Max. Lifting Height: 441mm Screw Extension: 85mm Supplied Extensions: 20mm / 50mm / 100mm Air Consumption: 10.6CFM (300ltr/min) No. of Stages: 1 stage Handle Length: 1240mm Jack Length: 525mm Jack Width: 265mm Base Height: 215mm Net Weight: 33.50kg
7.00kgGross Weight 34.20kg
9.00kgProduct Dimensions: Packaged Dimensions 110(H) x 1390(W) x 280mm(D)
260(H) x 290(W) x 580mm(D)
