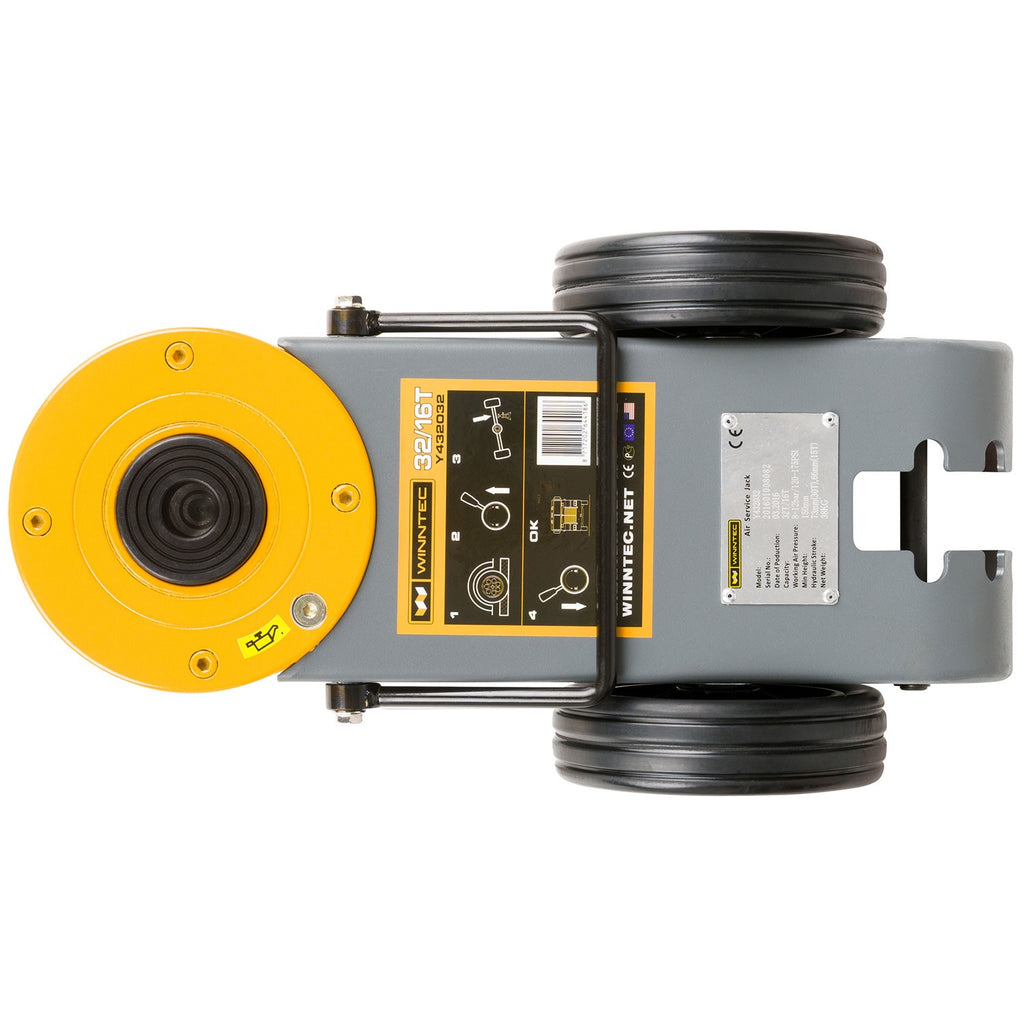

The WINNTEC® from SIP 32/16 Ton Air Service Jack is designed for high performance, ascending and descending safely with air which, when combined with chromed pistons and ram, offers reliable lifting of larger, heavier, and more demanding vehicles.
Suitable for a range of demanding lifting in garages and workshops.
KEY FEATURES
- 150mm to 289mm lifting height range
- Dual-stage telescopic hydraulic lifting system
- Safely ascends and descends with air for ease-of-use
- Wheel-mounted with long handle for simple positioning
- WINNTEC® from SIP 3-Year Warranty
WINNTEC 3-Year Warranty*
Full Specification
The WINNTEC® from SIP 32/16 TON Air Service Jack offers powerful lifting and high performance across a range of larger and heavier vehicles which require a versatile lifting range, accommodating easy hydraulically-assisted lifting up to 289mm.
Operators are protected to the highest standard in all lifting applications through a number of safety features, including dead mans controls, and durable components.
- 32/16 TON maximum weight capacity
- 150mm to 289mm lifting height range
- Dual-stage telescopic hydraulic lifting system for ease-of-use
- Easily ascension and descension with air for user protection
- Supplied with 2 versatile extensions,: 45mm and 100mm

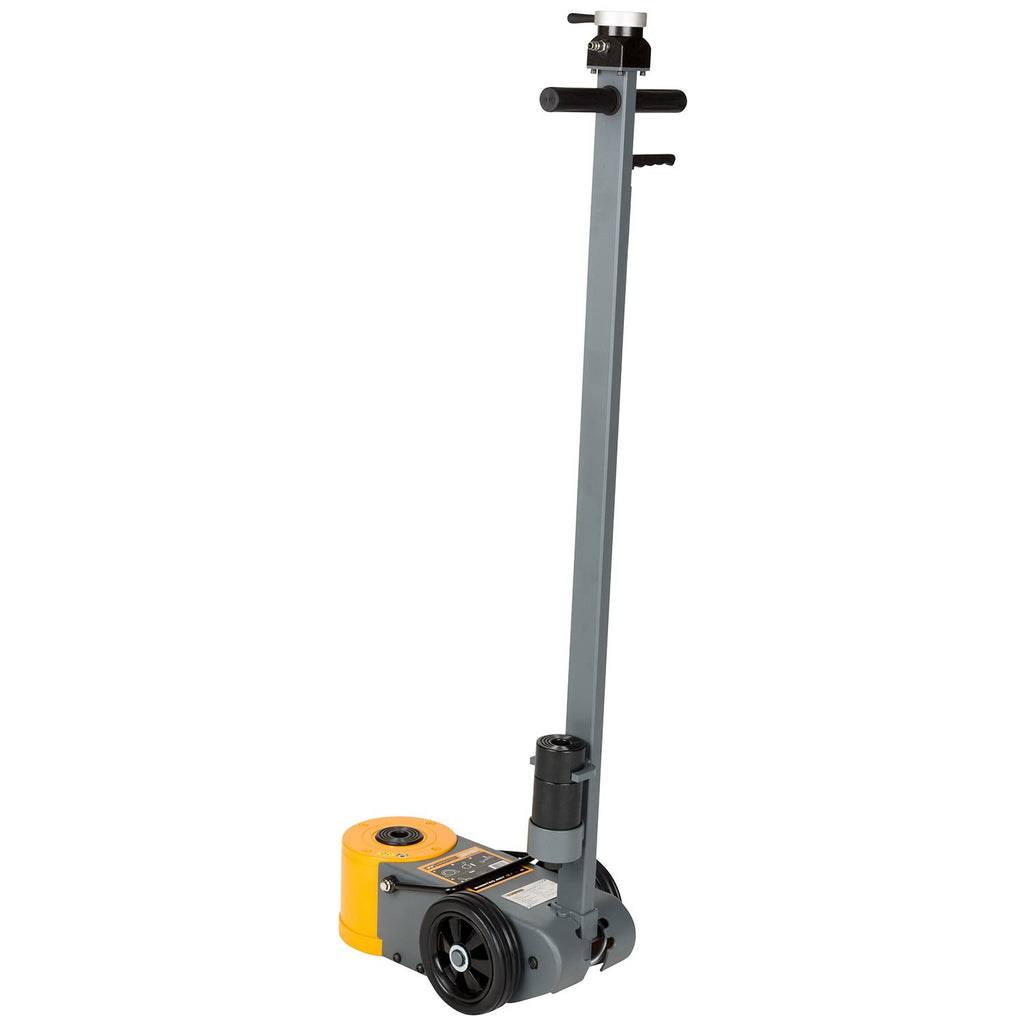

- Wheel-mounted design with long handle for simple positioning
- Built-in dead mans controls for reliable user safety

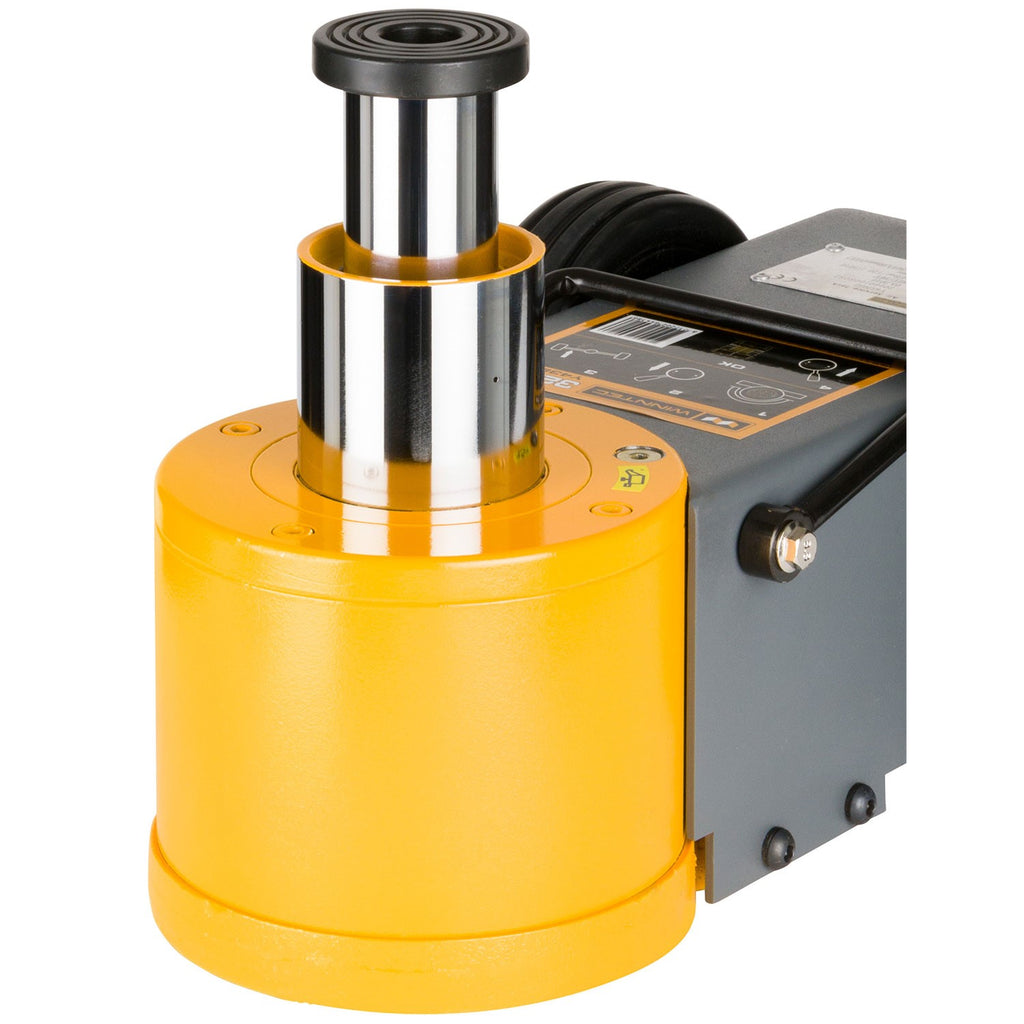

- Heavy-duty hard chromed piston and main ram
- Optional 260mm extension sold separately
- Quality European design for performance
- WINNTEC® from SIP 3-Year Warranty
Technical Information
ITEM NO. 09893 Weight Capacity: 32 / 16 TON Min. Lifting Height: 150mm Max. Lifting Height: 289mm Screw Extension: Optional Supplied Extensions: 45mm / 100mm Air Consumption: 10.6CFM (300ltr/min) No. of Stages: 2 stages Handle Length: 1300mm Jack Length: 480mm Jack Width: 290mm Base Height: 150mm Net Weight: 35.00kg
7.00kgGross Weight 35.30kg
9.00kgProduct Dimensions: Packaged Dimensions 200(H) x 510(W) x 290mm(D)
100(H) x 1400(W) x 290mm(D)
