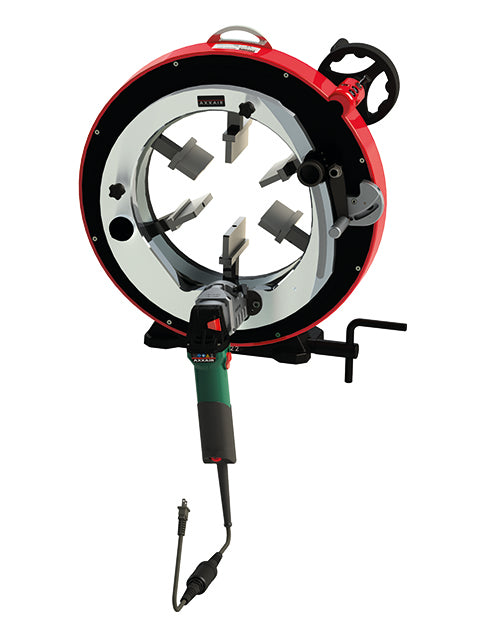

Axxair GA322 Orbital Beveling Diameter ø141 - ø328mm
Efficient and quick operations-
Pipe beveling is the process of forming an angle on the edge at the end of a pipe or tube. The most standard bevel angle for welding is 37.5 degrees, but there are other angles and forms such as the J-Bevels that can be produced with automatic pipe bevelling machines.
Especially important in industries which require stainless steel pipes, the automatic pipe bevelling machines are the best way to prepare the pipes for the orbital welding machines.
Orbital bevelling machine : portable machine, easy to move and can be used both on site or in a workshop, simple and quick adjustment of the height of the bevel.
Perfect preparation for thick tubes before welding with filler wire, evolutive machine : can be transformed into an orbital bevelling and welding machine.

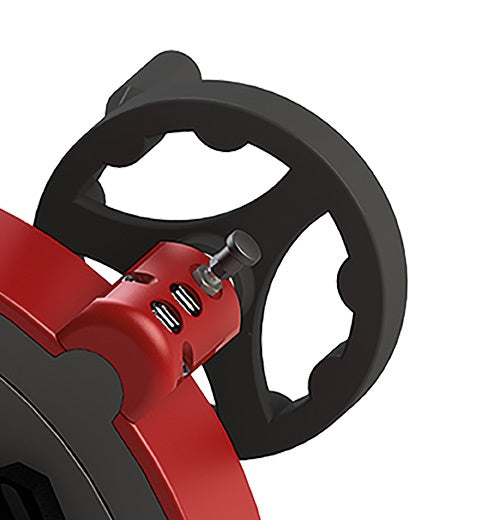

Carbide inserts, 10x faster than HSS inserts, V-bevel or J-bevel without lubricant, workpiece guide that takes account of the ovality of tubes & rotation handle as standard.
Technical Data
- Basic jaws Ø8,5″ to Ø12,75″ (Ø230 mm to Ø328 mm)
- Included stainless steel auxiliary jaws Ø5,5″ to Ø10″ (Ø141 mm to Ø239 mm)

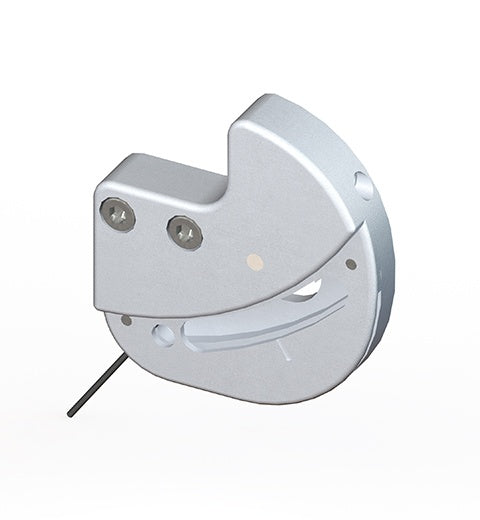

- Supplied with plastic protection and profile guide

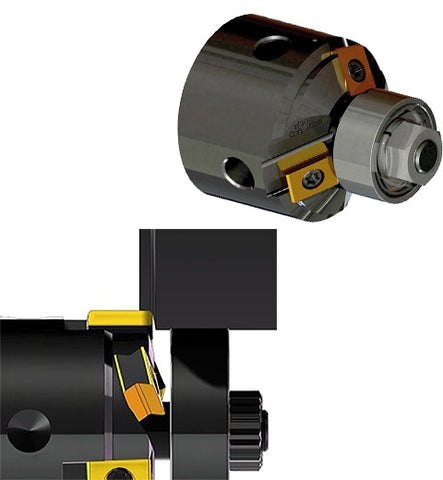

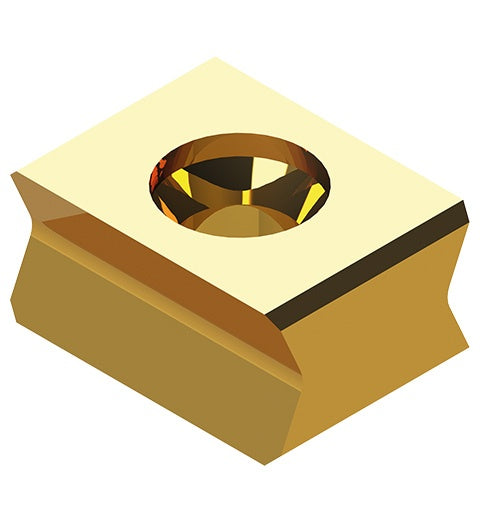

- Technology: screw carbide inserts: 10 x faster than HSS tools. Superior service life
- Max 8 mm according to spinner*
- V-bevel or J-bevel without lubricant
- Patented System
- Scalability: may be transformed into a cutting and orbital welding machine
- Weight: 71 kg / 156 lbs (easy handling)
