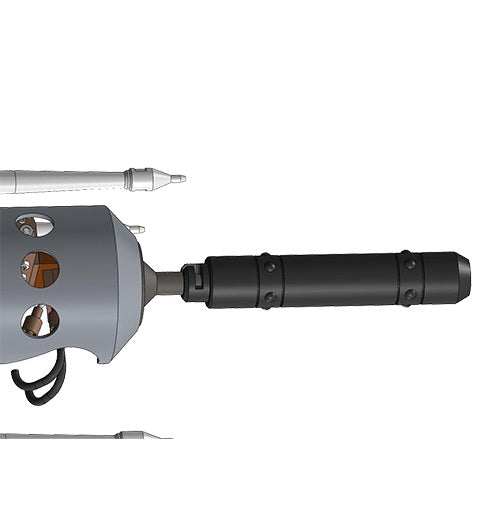

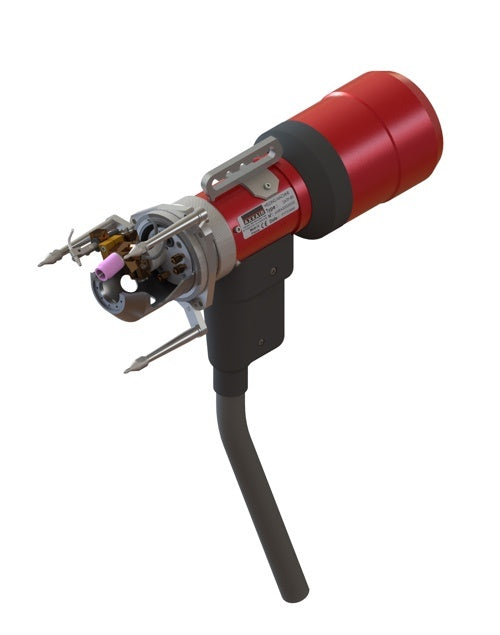

Axxair SATP-80X Orbital Welding Tube to Tube Sheet Diameter ø12 - ø82mm
Orbital welding head for tube to tube sheet applications in heat exchanger productions.
Portable and easy to move machine with integrated wire dispenser. Can be used directly on worksite.

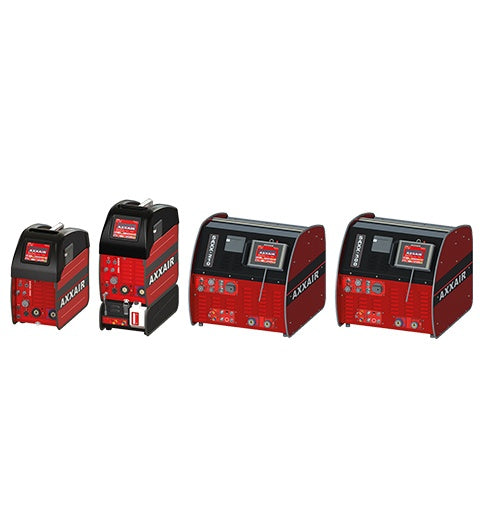

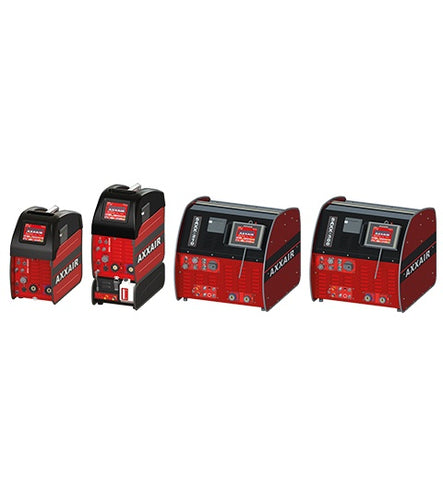

Intuitive interface and automatic parameter calculation mode integrated into the SAXX power sources range.
Quality and repeatability of welds to ensure high productivity.

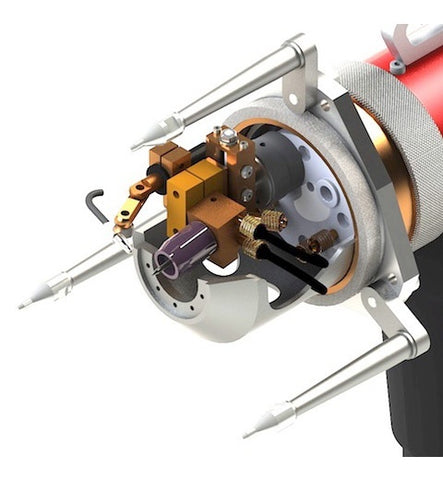

Mandrel system : concentric clamping from inside the tube, Mandrel system : concentric clamping from inside the tube, Electric wire with wire feed ( coil) & Water cooled tilting head.
Technical Data
- Rotating gas, current and cooling seal
- Tilting water cooled head
- Head and wire adjustment trolley

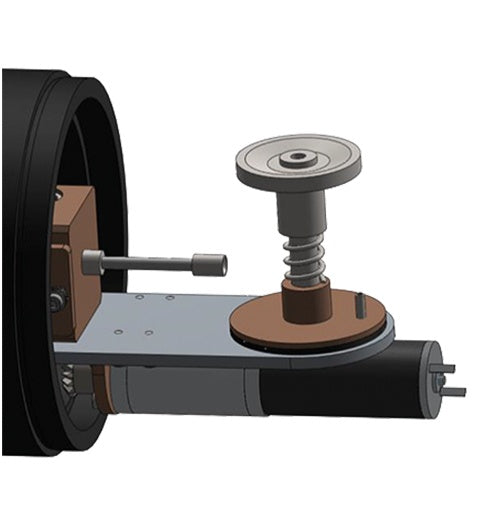

- Built-in rotating wire dispenser (Ø 0.8 mm)
- Maximal wire speed: 200 cm/min
- Weight: 7.5 kg without wire spool
