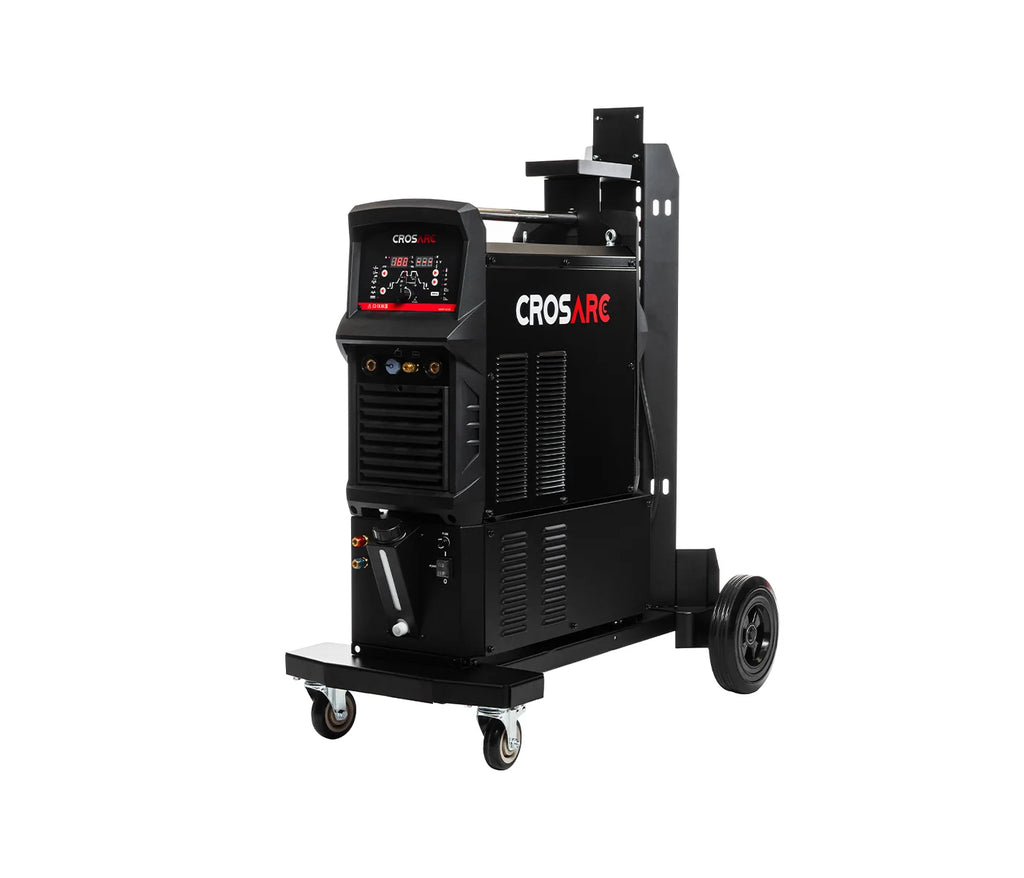

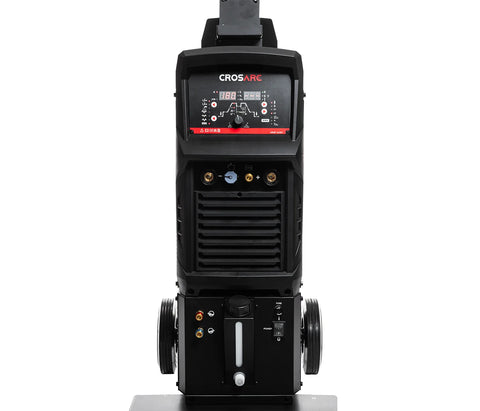

The CROSARC TIG 400 AC/DC represents the very latest in advanced inverter-based power sources operating from a 400v mains supply.

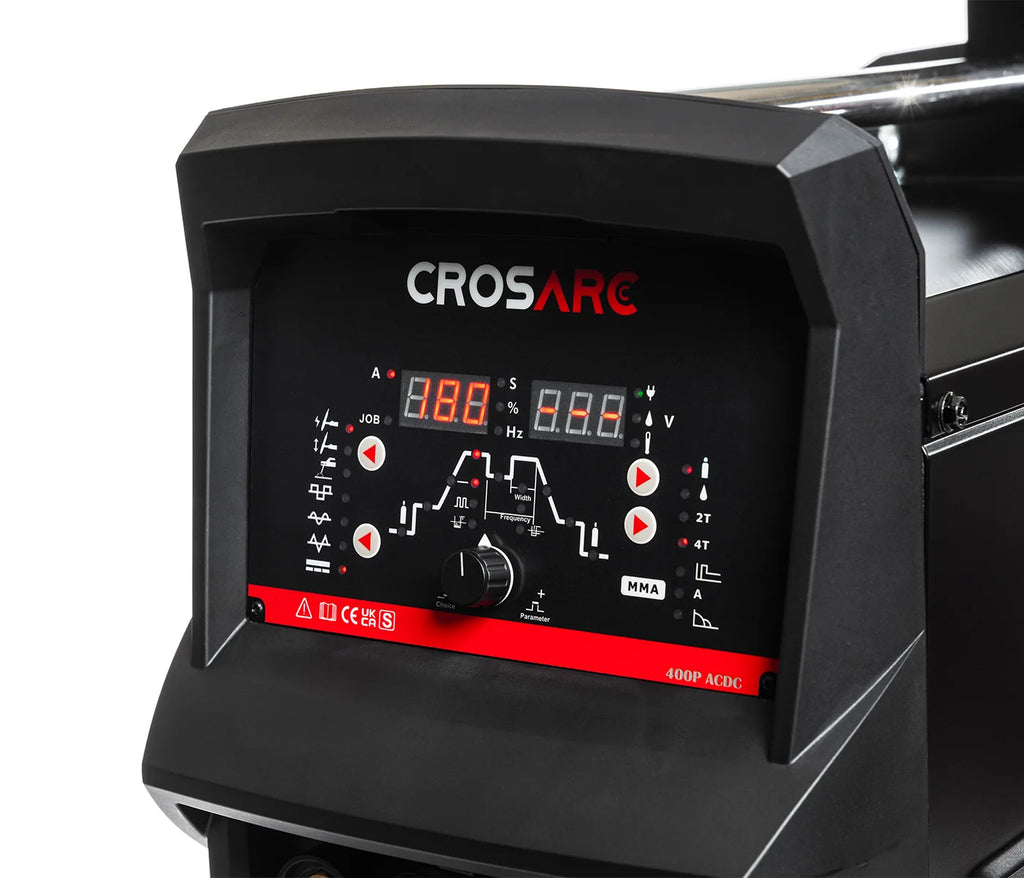

This industry leading water-cooled TIG welding system offers incredible functionality and exceptional welding performance. It is supplied with a transportation trolley and integral water-cooling unit as standard. The 400 AC/DC incorporates a user-friendly control panel allowing the operator full adjustment of all welding parameters, making it the ideal solution for a wide variety of industrial and fabrication applications.
Technical Specification
| Input Current | 25 Amps |
|---|---|
| Current Range |
10-400 Amps |
| Duty Cycle | @ 40°C: 400 Amps @ 60% |
| Efficiency | 85% |
| Power Factor at 100% | 0.93 |
| Protection/Insulation Class | IP23/H |
| Generator Compatible | Yes |
| Conforms to |
EN IEC 60974-10:2021 |
Dimensions (mm)
| Height | 685 |
|---|---|
| Width | 295 |
| Length | 560 |
| Weight | 40Kg |
Functions
- MMA
- TIG AC/DC HF/LIFT
- 2T/4T
- Pre/Post Flow Gas Adjustment
- Up/Down Slope Adjustment
- AC Frequency Control
- AC Balance Control
- Start & End Current Adjustment
- Pulse Function
- Pulse Frequency Control
- Hot Start
- Arc Force
- Job Save Function
Features
- Latest IGBT Multi Process Inverter Power Source
- Digital Volt / Amp Display
- Trolley Mounted
- Generator Friendly
- Easy Set Up & Operation
What’s Included In The Box?
- Owner’s Manual
- TIG 400 AC/DC Inverter Power Source
- Parker SGT18FX-12 TIG Welding Torch
- Water Cooler
- Foot Pedal
- Earth Return Lead & Clamp
- Gas Hose
- VRD Safety Device
