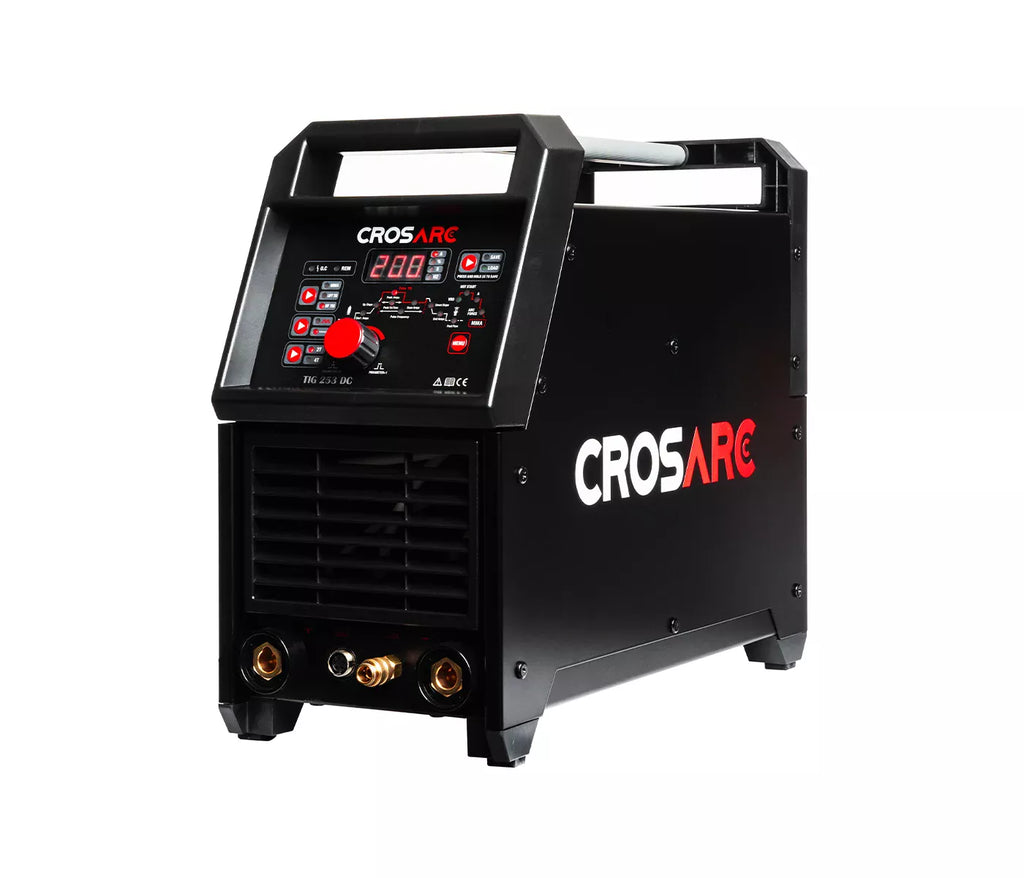

The CROSARC TIG 253 DC is a next generation inverter based power source operating from a 400v mains supply.

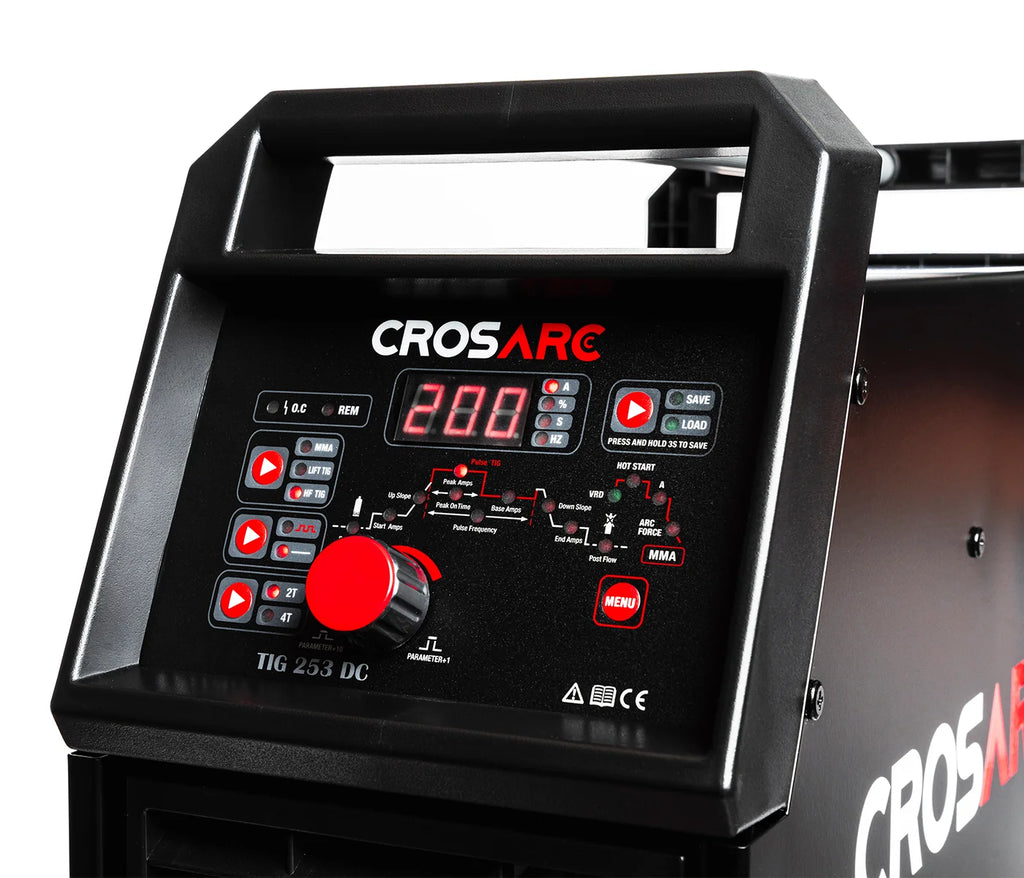

This industry leading machine offers incredible functionality and exceptional welding performance in a compact portable design. The CROSARC 253 DC incorporates a user friendly control panel allowing the operator full adjustment of all welding parameters, making it the perfect solution for an extensive range of industrial and fabrication applications.
| Function | TIG |
|---|---|
| Current Type | DC |
| Voltage | 400v |
| Cooling | Power source Integrated Fan |
| Approvals | CE |
| Warranty | 3 Years |
Technical Specification
| Input Current | 16 Amps |
|---|---|
| Current Range |
TIG: 5-250 Amps |
| Duty Cycle | TIG @ 40°C: 250 Amps @30% / MMA @ 40°C: 220 Amps @30% |
| Efficiency | 85% |
| Power Factor at 100% | 0.93 |
| Protection/Insulation Class | IP21/F |
| Generator Compatible | Yes |
| Conforms to |
EN IEC 60974-10:2021 |
Dimensions (mm)
| Height | 625 |
|---|---|
| Width | 285 |
| Length | 555 |
| Weight | 18Kg |
Functions
- MMA
- TIG DC HF/LIFT
- 2T/4T
- Pre/Post Flow Gas Adjustment
- Up/Down Slope Adjustment
- Start & End Current Adjustment
- Pulse Function
- Pulse Frequency Control
- Hot Start
- Arc Force
- Job Save Function
Features
- Latest IGBT Multi Process Inverter Power Source
- Digital Volt / Amp Display
- Portable
- Generator Friendly
- Easy Set Up & Operation
What’s Included In The Box?
- Owner’s Manual
- TIG 253 DC Inverter Power Source
- Parker DGT26FX-12 TIG Welding Torch
- Foot Pedal
- Earth Return Lead & Clamp
- Gas Hose
- 3 Mtr MMA Lead
- VRD Safety Device
