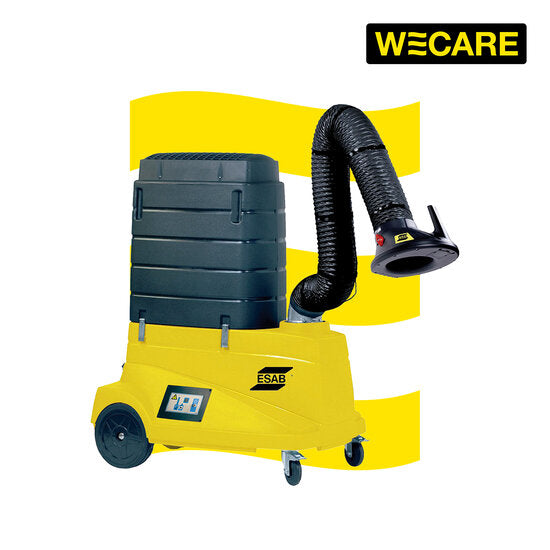

ESAB Origo Vac Cart: Portable Fume Extraction for a Safer Welding Environment

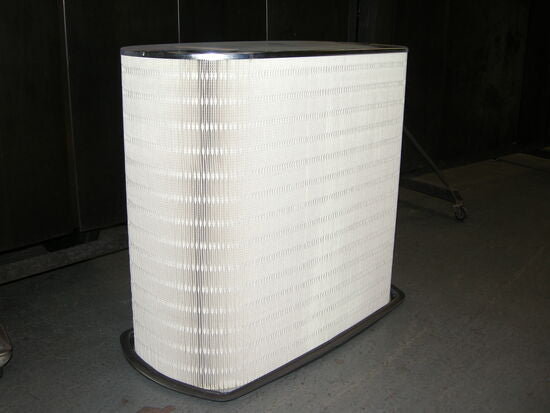

The ESAB Origo Vac Cart is a portable fume extraction unit that provides welders with a sound, safe, and efficient welding environment. It is ideal for light/medium welding and extraction applications, and is available in two versions, with or without light. The Origo Vac Cart features a 35m2 extra large filter for longer life, up to a year. It is also lightweight and easily portable, with large back wheels and lockable front swivel wheels for outstanding mobility and safety. Has a true airflow measured in the hood with the 3m arm in a 45 degree angle. It is also easy to change the filter, which can be replaced in minutes. The Origo Vac Cart is also easy to operate; simply plug it in, turn it on, and go.
Cart filter provides 99% efficiency for welding fumes, and the unit has a 6m power cable for increased mobility & is the perfect solution for welders who are looking for a portable and effective way to protect themselves from harmful welding fumes. It is also a great choice for welding shops and other businesses that need to comply with OSHA regulations for air quality.
Features
- Powerful Suction: Effectively captures welding fumes, smoke, and dust particles
- Portable Design: Compact and lightweight for easy manoeuvrability around the workspace
- Advanced Filtration: High-efficiency filters remove even the finest contaminants
- Large Capacity Dust Bin: Minimises downtime for emptying

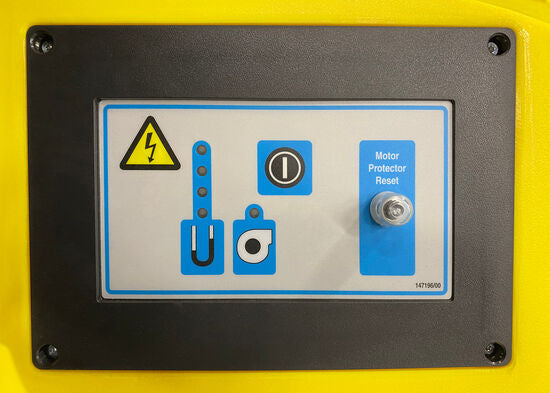

- User-Friendly Controls: Simple operation for effortless use
- Durable Construction: Built to withstand the rigors of industrial environments
- Quiet Operation: Creates a comfortable working atmosphere
Applications
- General welding and fabrication shops
- Automotive repair and maintenance facilities
- Shipbuilding and marine industries
- Construction and metalworking sites
- Maintenance and repair operations
Specifications
Primary Voltage: 110/230 VAC ± 15% , 1ph, 50/60 Hz
Power: 0.75 kW
Filter Surface: 30 m² (323 ft²)
Noise Level (at 1m/3ft, 100% motor power, ISO 11201): 79 dB(A)
Operating Temperature: 0 to +35 °C (+32 to +95 °F)
Max Airflow Temperature: +60 °C (140 °F)
Extraction Capacity: 675–1050 m3/h (397–620 cfm)
Filter Efficiency (main): >99 %
Filter Efficiency (HEPA accessory): > 99.95 % H13
Standards (Filter): (ISO 21904-2), F9 (EN779), MERV 14 (ASHRAE 52.2)
Standards (Unit): EN ISO 21904-1:2020, EN ISO 12100:2010, EN ISO 20607:2019, EN 61000-6-2:2019, EN 61000-6-4:2019, EN 61000-3-3:2013, EN 60204-1:2018
Hose Diameter: 160 mm (6.3 in.)
Dimensions L x W x H (with hose min extended): 1875 x 770 x 2050 mm (74 x 30 x 81 in.)
Dimensions L x W x H (without hose): 1145 x 770 x 1410 mm (45 x 30 x 55.5 in.)
Weight: 73 kg (160 lbs)
