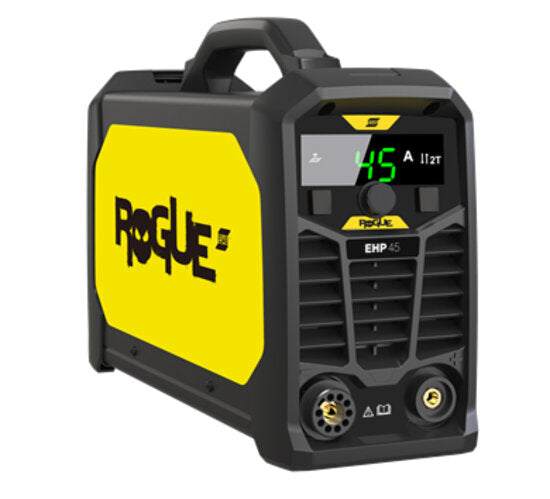

ESAB 0700200501 Rogue EHP 45 Plasma Cutting/Gouging System
Plasma cutting and gouging is an essential technology for metal fabrication.
The Rogue EHP 45 is a handheld, light, and portable power source for plasma cutting and gouging with 230 V 50/60Hz single-phase input power capability. This gives it go-anywhere versatility for all your metal fabrication applications.
Very simple to use with easy-to-understand display and controls. No need to adjust the gas, as the machine automatically detects pressure and is preset for optimal operation.
Recommended piercing and cutting capacity: 12mm (1/2 in.)
Maximum cutting capacity: 16mm (5/8 in.)
Features

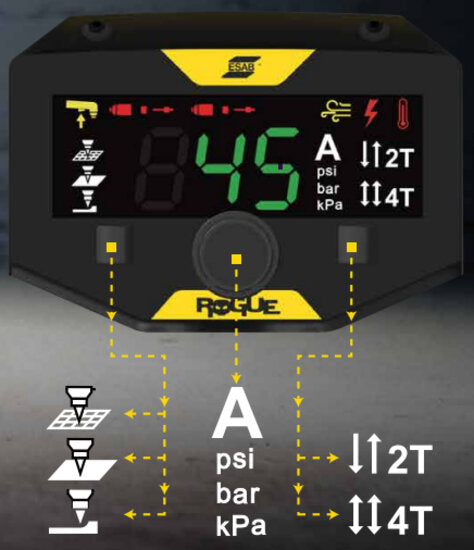

- Easy to use functionality with quick control buttons & single control knob.
- Torch trigger 2T/4T functionality for greater safety & ergonomic usage.
- 3 modes of cutting for maximum arc control, including expanded metal, solid metal, & gouging modes.
- Operational dashboard symbols to keep your system running, like air, consumables, power etc.
- Comes with torch & a starter pack of consumables for both cutting & gouging capability.
- 3 year guarantee for the power source & 3 months for the torch.
Technical Data
| Input Volts | 230 VAC, 1 Φ, 50/60 Hz |
| Duty Cycle |
35 A @ 100 % % welding duty cycle 45 A @ 35 % % welding duty cycle |
| Operating Temperature | -10 to +40 °C |
| Gas Pressure | 6-7.5 bar |
| Gas Flow | 120-200 l/min |
| Pierces | 12 mm |
| Enclosure Class | IP23S |
| Certification | CE, UKCA, CCC |
| Dimensions, L x W x H |
480 x 150 x 320 mm |
| Weight | 11.5 kg |
| Maximum Cut | 16 mm |
Industries -
- Agricultural Equipment
- Automotive Bodies
- Civil Construction
- Food and Beverage
- Hobbyist
- HVAC
- Industrial and General Fabrication
- Light Equipment
- Mobile Equipment
- Repair and Maintenance
- Training Schools
- Transportation
