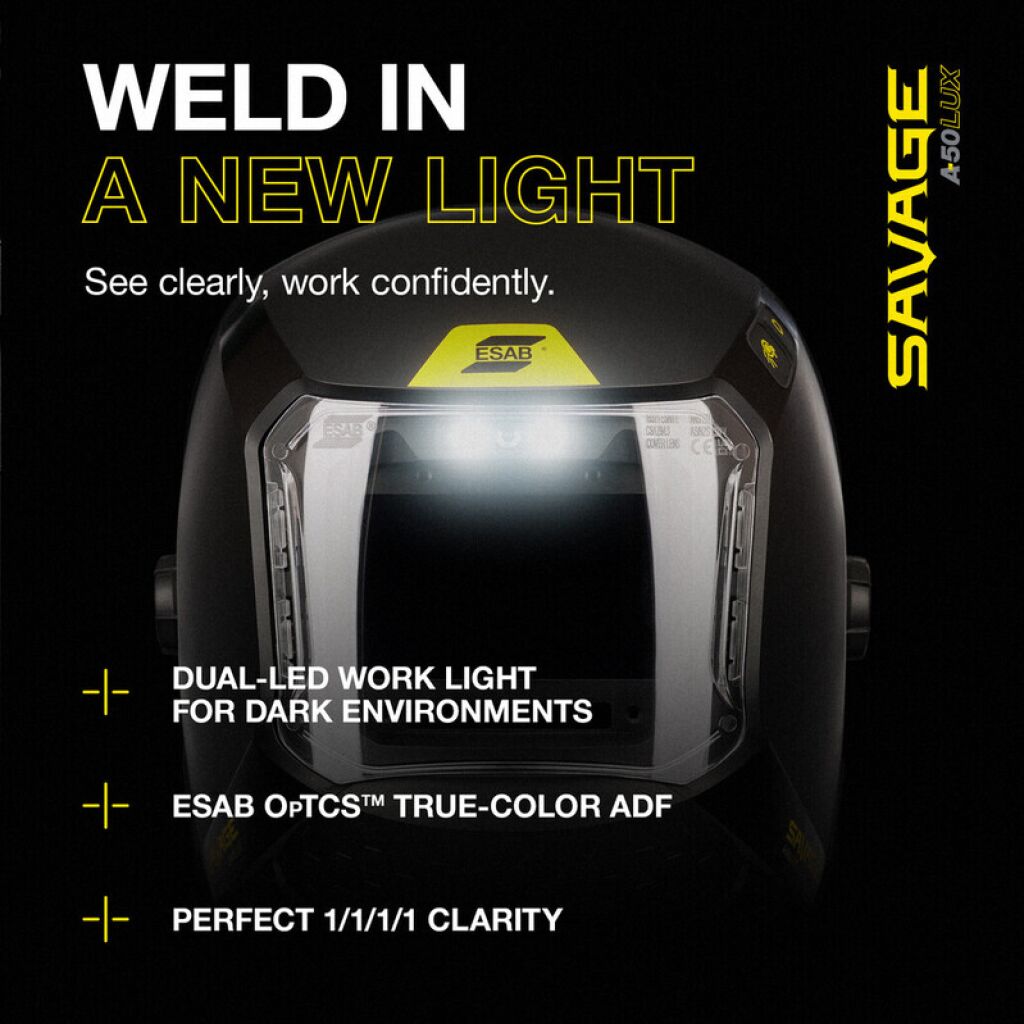

The Savage A50 LUX from ESAB borrows from proven Sentinel A60 welding helmet performance to deliver advanced OpTCS true-color viewing at a flawless EN 1/1/1/1 optical level. The ADF features a simple, intuitive control panel that offers control over the most critical features related to all types of welding: wide shade selection; 5-steps of delay and sensitivity.
Adding to the Savage A50 LUX’s versatility, is a 50lumen, dual LED work-light, integrated behind the moulded front cover lens. The work-light is powered by it’s own “AA” battery, which offers long life using the integrated arc sensor, shutting the light off only when an arc or intense light is detected. headgear found in the Savage A50 LUX, The Halo is the same 5-point adjustable solution offered in the Sentinel A60.
- Advanced LED work-light with dedicated arc sensor and power supply
- Easily-accessed LED work-light power button and separate external grind button
- ADF viewing area: 100 x 60 mm (3.94 x 2.36 in.) with internally-adjustable push-button controls
- Shade range: DIN 3/5–13
- ESAB OpTCS True-Color Lens Technology
- Arc sensors: 4
- Fast switching time of 0.07 millisecond
- Replaceable CR2450 battery
- Low battery and grind mode LEDs
Welding processes:
- Oxy Fuel Cutting
- Plasma Cutting
- Grinding Welding, GMAW (MIG/MAG)
- Welding, GTAW (TIG)
- Welding, PAW -Plasma Arc Welding
- Welding, SMAW/MMA (Stick)
Technical Specification
