EWM 091-005545-00502 Picomig 180 puls Set 230V, 180Amp

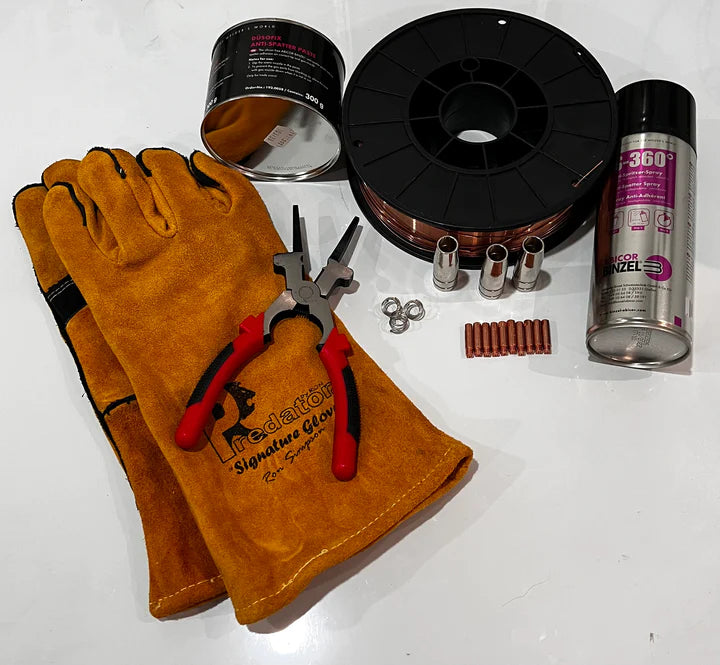

All MIG Packages include:- Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Anti-spatter Spray, Tip Dip, Mig Pliers 16Amp Plug fitted with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin
- Multiprocessing inverter welding machine and pulse set
- Easy Synergic one-knob operation and integrated wire feeder

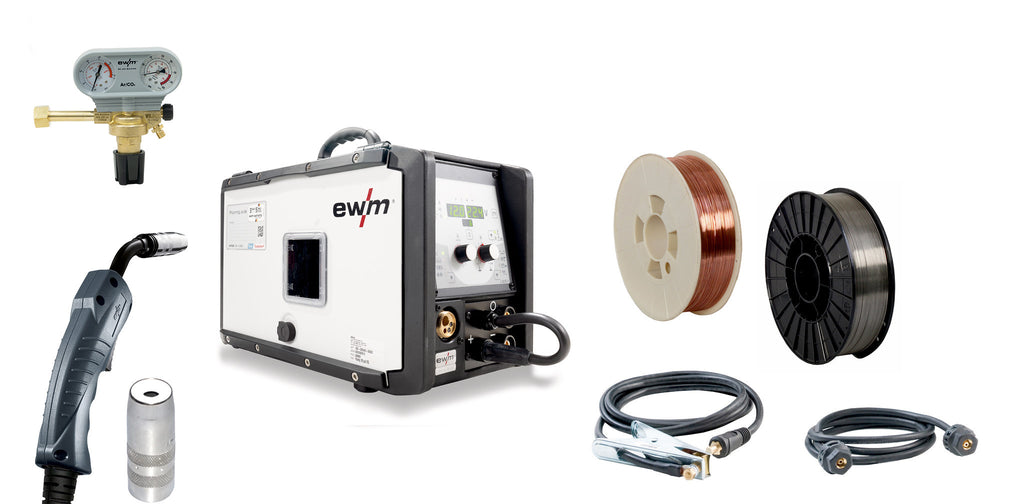

- Set comprising:
- Picomig 180 puls, MT221G welding torch, flux cored wire spool (FCW 71T Self-shield 2 kg, 0.9 mm dia.), steel wire spool (SW 70S G3 2 kg, 0.8 mm dia.), workpiece lead, gas hose, pressure regulator and flux cored nozzle
- Welding procedures and functions
- GMAW pulsed welding and GMAW standard welding
- Significantly less spatter formation and therefore less finishing work, all thanks to the pulse function
- GMAW pulse welding of aluminium and aluminium alloys
- Characteristics for steel, CrNi, CuSi, aluminium and flux cored wires
- MMA welding and TIG lift arc welding
- Perfect for welding self-shielding flux cored wires
- Infinitely adjustable arc dynamics (choke effect)
- Non-latched/latched operation
- Interval welding
- Adjustable gas pre- and post-flow time
- Your benefits
- Portable, compact
- No need to purchase additional characteristics – all characteristics for this machine type are included in the scope of delivery ex works
- Robust casing suitable for construction site use
- High open circuit voltage for excellent ignition characteristics
- 4-roll drive
- Energy-saving thanks to high efficiency and standby function
- Easy, tool-free change of welding polarity
- Insulated wire space
- 3.5 m mains supply lead with 16 A shock-proof plug
- Free WPQR package for certification up to and including EXC2 in accordance with EN 1090 and for welding of unalloyed steels up to and including S355
- Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage

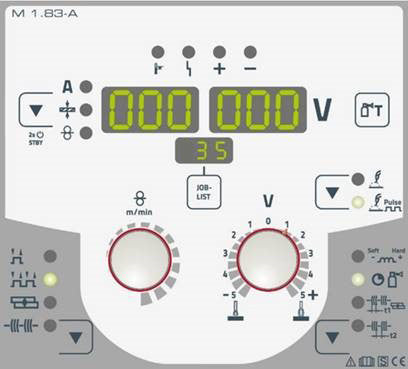

- Setting of all welding parameters and functions – easy setting of operating point, pre-programmed JOBs (welding tasks) can be selected from JOB list
- GMAW pulsed welding and GMAW standard welding
- Significantly less spatter formation and therefore less finishing work, all thanks to the pulse function
- GMAW pulse welding of aluminium and aluminium alloys
- Characteristics for steel, CrNi, CuSi, aluminium and flux cored wires
- MMA welding and Tig lift arc welding
- Perfect for welding self-shielding flux cored wires
- Infinitely adjustable arc dynamics (choke effect)
- Non-latched/latched operation
- Interval welding
- Adjustable gas pre- and post-flow time
|
Operation mode |
One-knob operation |
|
Welding process |
MIG/MAG |
|
MIG/MAG pulse |
|
|
TIG |
|
|
MMA |
|
|
Operating modes |
Non-latched |
|
Latched |
|
|
Resistance spot welding |
|
|
Interval |
|
|
Parameters in display |
Welding current |
|
Wire feed speed |
|
|
Plate thickness |
|
|
JOB number |
|
|
Error code |
|
|
Polarity display |
|
|
Number of JOBs |
50 |
|
Functions |
Wire burn-back |
-
Version
Picomig 180 puls
Setting range for welding current
5 A - 180 A
Duty cycle 40 °C
180 A / 25 %
120 A / 60 %
100 A / 100 %
Open circuit voltage
80 V
Mains tolerances (ex works)
-40 % up to +15 %
Mains frequency
50 Hz / 60 Hz
Recommended generator power
8 kVA
Wire feed speed
1 m/min - 15 m/min
39.37 ipm - 590.55 ipm
Factory-installed roll equipment
0.8 + 1.0 mm / Steel
Spool diameter
D200
Torch connection
Euro torch connector
Protection classification
IP23
Test mark
EMC class
A
Dimensions (L x B x H)
559 mm x 276 mm x 340 mm
22 inch x 10.9 inch x 13.4 inch
Weight
16 kg / 35.3 lbs
Standards
IEC 60974-1, -5 and -10 CL.A
