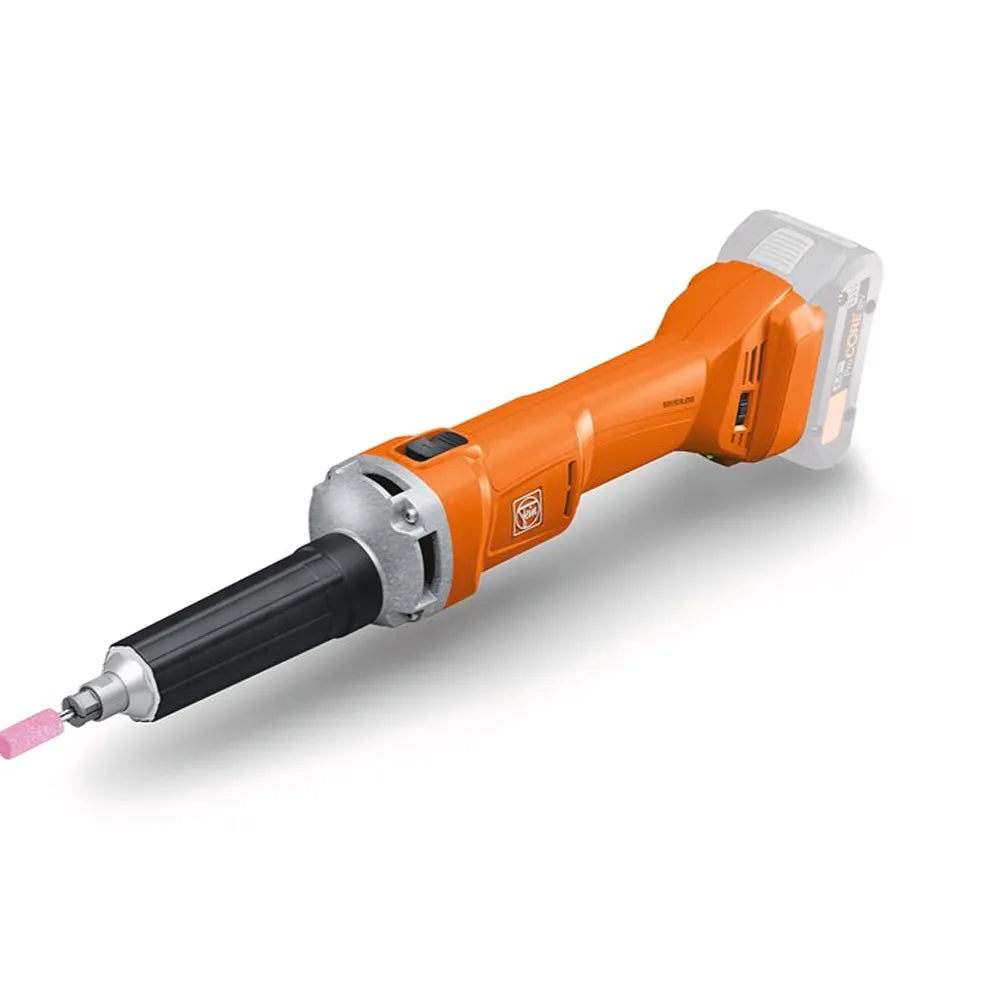

Fein 71230661000 AGSZ 18-90 LBL AS Cordless Die Grinder

  • Sale
  • Regular price £360.18

Excludes VAT



Fein 71230661000 AGSZ 18-90 LBL AS Cordless Die Grinder

Cordless die grinder, dust-resistant and powerful, compact cordless die grinder with large plunge depth for grinding and polishing work.

The FEIN AGSZ 18-90 LBL AS Cordless Die Grinder (71230661000) is a powerful and professional cordless die grinding solution engineered for precision grinding, deburring, surface conditioning, and fine finishing in demanding industrial, fabrication, and on-site applications. This premium cordless die grinder delivers exceptional performance with the flexibility of battery operation, optimised for metalworking, maintenance, and machining environments.

Featuring a high-efficiency brushless motor and advanced safety electronics, the AGSZ 18-90 LBL AS combines outstanding power with smooth, controlled operation. Its compact and ergonomic design enhances manoeuvrability in confined and hard-to-reach areas, while intelligent battery management ensures longer runtime, reduced heat build-up, and extended service life — ideal for professionals who require cordless freedom without compromising performance.

Features

  • Brushless high-power motor for effective cordless die grinding performance
  • Cordless freedom with 18 V AMPShare battery compatibility
  • Advanced electronic protection including soft start, overload protection and restart protection
  • Ergonomic slim barrel grip for secure handling and reduced operator fatigue
  • Tool-free collet system for fast accessory changes
  • Efficient heat management for longer battery and tool life
  • Compatible with all 18 V AMPShare ProCORE batteries and chargers
  • Compact design for excellent access in tight and restricted spaces

In the box -

  • 1 cordless straight grinder
  • 1 collet Ø 6 mm
  • Jaw spanner SW13
  • Jaw spanner SW17
  • 1 tool case (XL-BOXX)
Technical Data
Battery voltage 18 V
Battery compatibility Li-ion / ProCORE Li-ion
Battery interface 18 V AMPShare
Motor brushless
Speed, no load 2,900 – 9,000 rpm
Polishing disc Ø 80 mm
Grinding wheel for max. Ø 50 mm
Collet for max. Ø 8 mm
Max. cutter diameter 12 mm
Weight without storage battery 1.77 kg
Vibration and sound emission values
Sound pressure level LpA 86 dB
Uncertainty of measured value KpA 3 dB
Sound power level LWA 94 dB
Uncertainty of measured value KWA 3 dB
Sound peak value LpCpeak 99,6 dB
Uncertainty of measured value KpCpeak 3 dB
Vibration value 1 αhv 3-way αh,SG (Ø 50mm) 3,2 m/s²
Uncertainty of measured value Kα 1,5 m/s²
Vibration value 2 αhv 3-way αh,SG (Ø 25mm) 1,2 m/s²
Uncertainty of measured value Kα 1,5 m/s²
Datasheet
