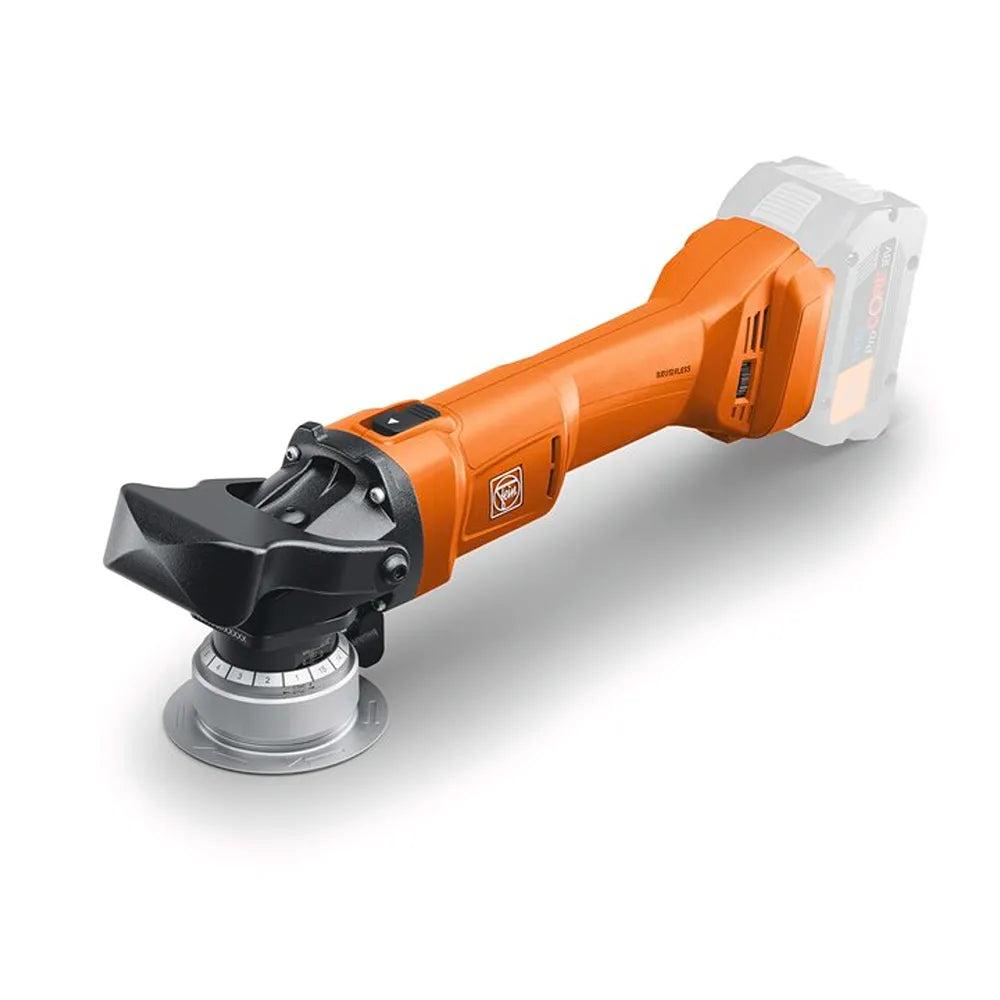

Fein 71380262000 AKFH 18-5 AS Cordless Beveller 5mm
The FEIN AKFH 18-5 AS Cordless Beveller 5 mm (71380262000) is a high-performance 18 V cordless bevelling machine designed for efficient preparation of weld seams, edge finishing and radius creation on flat materials and sheet metal. This lightweight, compact cordless beveller offers cord-free flexibility for workshop and on-site jobs, allowing operators to deliver precise bevels up to 5 mm without the constraints of a power cable.
Equipped with a powerful PowerDrive motor and advanced user protection features such as soft start, restart protection, jam monitoring and electronic overload protection, the AKFH 18-5 AS ensures smooth, reliable performance with enhanced operator safety. Its ergonomic design, variable speed control and compatibility with the 18 V AMPShare ProCORE battery platform make it ideal for professional fabricators, welders and metalworkers seeking cordless bevelling efficiency and superior results.
Features
- 18 V cordless beveller with a bevel capacity up to 5 mm at 45°
- PowerDrive motor for durable performance and long service life
- Ergonomic, compact design for reduced operator fatigue
- Variable speed control for adapting to different material types
- Soft start, restart protection, jam monitoring and overload protection for operator safety
- Compatible with all 18 V AMPShare ProCORE batteries and chargers
- High sanding and removal capacity with minimal operator force
In the box -
- 1 tool incl. 45 milling head (without guide roller, without indexable tips)
- 3 x clamping screws SX
- 1 x copper paste
- 1 x 4 mm socket head wrench
- 1 x TX 15 Torx screwdriver
- 1 plastic tool case (L-BOXX 238)
| Technical Data | |
|---|---|
| Battery voltage | 18 V |
| Battery compatibility | Li-ion / ProCORE Li-ion |
| Battery interface | 18 V AMPShare |
| Speed, no load | 2,400 – 7,500 rpm |
| Max. bevel length at 45° | 5 mm |
| Max. bevel height at 45° | 3.5 mm |
| Bevel angle | 45° |
| Radius | 1.2 / 2,5 mm |
| Milling head configuration | 3x SX tip |
| Support plate diameter | 98 mm |
| Weight without storage battery | 2.52 kg |
| Vibration and sound emission values | |
| Sound pressure level LpA | 89,7 dB |
| Uncertainty KpA | 3 dB |
| Sound power level LWA | 97,7 dB |
| Uncertainty KWA | 3 dB |
| Sound peak value LpCpeak | 103,4 dB |
| Uncertainty KpCpeak | 3 dB |
| Vibration value 1 αhv 3-way | 3,1 m/s² |
| Vibration value 2 αhv 3-way | 4,5 m/s² |
| Uncertainty Kα | 1,5 m/s² |
