Fein 71380561000 AKFH 18-5 AS Basic Chamfer Set/Cordless Bevelling Machine 5mm (set)
The FEIN AKFH 18-5 AS Basic Chamfer Set Cordless Bevelling Machine 5 mm with User Set (71380561000) is a professional 18 V cordless bevelling solution engineered for precise edge preparation, chamfering and weld seam finishing on flat and sheet metal. This cordless beveller offers freedom of movement without cables, making it ideal for workshop use, fabrication shops, construction sites and mobile metalworking projects where flexibility, power and control are essential.
Featuring a durable PowerDrive motor, variable speed control and integrated safety protections, the AKFH 18-5 AS Basic Chamfer Set delivers smooth, uniform bevels up to 5 mm with minimal vibration. Designed with ergonomics and user-friendly tool access in mind, this basic set includes essential accessories and tooling for immediate use, providing an efficient and reliable bevelling workflow for professional welders, fabricators and maintenance technicians.
Features
- 18 V cordless bevelling machine with bevel capacity up to 5 mm
- PowerDrive motor for robust performance and long tool life
- Variable speed control for adapting to material type and thickness
- Ergonomic two-handed design for comfort and control
- Soft start, restart protection and electronic overload protection for safety
- Includes basic user set for immediate use out of the box
- Compatible with 18 V AMPShare battery system for extended runtime

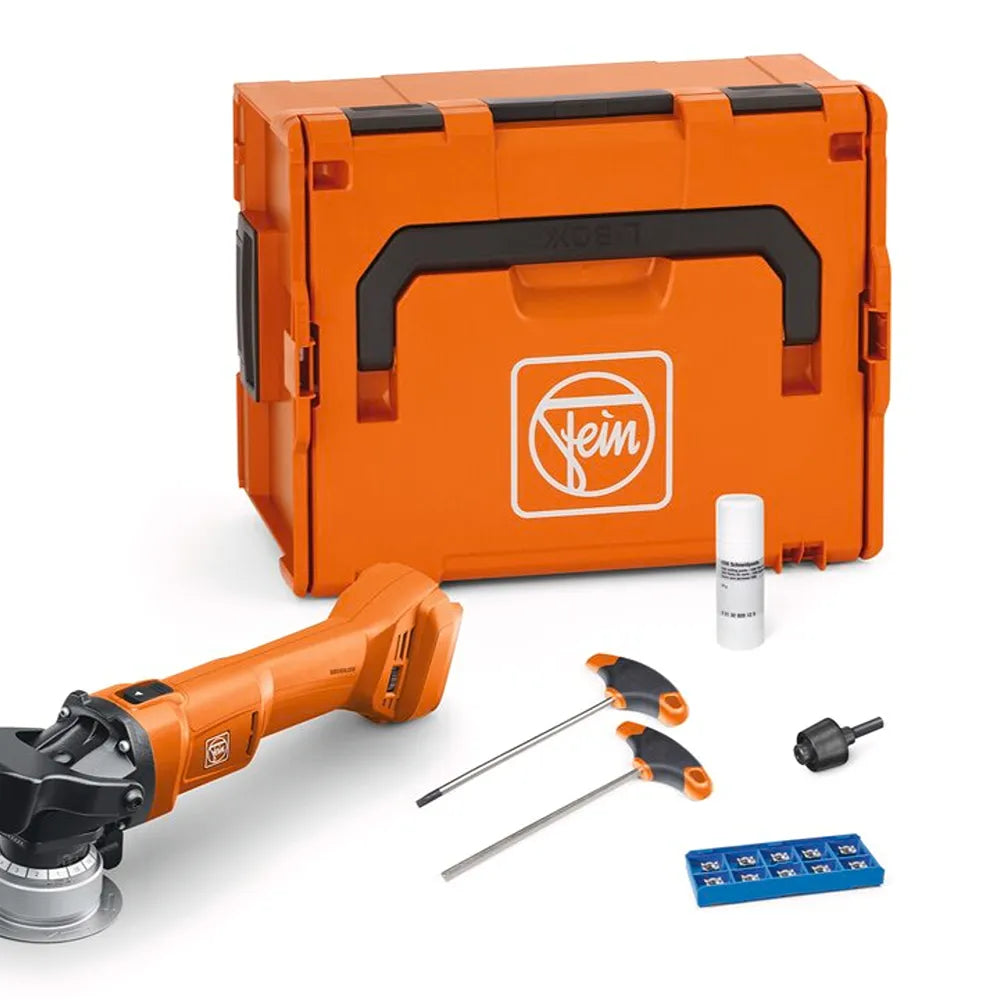

In the box -
- 1 AKFH 18-5 AS including 45° milling head
- 3 x clamping screws SX
- 1 x 4 mm socket head wrench
- 1 x TX 15 Torx screwdriver
- 1 cutting paste
- 1 pack of 10 SX indexable tips, chamfer for universal use
- 1 guide roller, 21.69 mm in diameter for 45° chamfers and a radius of 2.5 mm
- 1 plastic tool case (L-BOXX 238)
| Technical Data | |
|---|---|
| Battery voltage | 18 V |
| Battery compatibility | Li-ion / ProCORE Li-ion |
| Battery interface | 18 V AMPShare |
| Speed, no load | 2,400 – 7,500 rpm |
| Max. bevel length at 45° | 5 mm |
| Max. bevel height at 45° | 3.5 mm |
| Bevel angle | 45° |
| Radius | 1.2 / 2,5 mm |
| Milling head configuration | 3x SX tip |
| Support plate diameter | 98 mm |
| Weight without storage battery | 2.52 kg |
| Vibration and sound emission values | |
| Sound pressure level LpA | 89,7 dB |
| Uncertainty KpA | 3 dB |
| Sound power level LWA | 97,7 dB |
| Uncertainty KWA | 3 dB |
| Sound peak value LpCpeak | 103,4 dB |
| Uncertainty KpCpeak | 3 dB |
| Vibration value 1 αhv 3-way | 3,1 m/s² |
| Vibration value 2 αhv 3-way | 4,5 m/s² |
| Uncertainty Kα | 1,5 m/s² |
