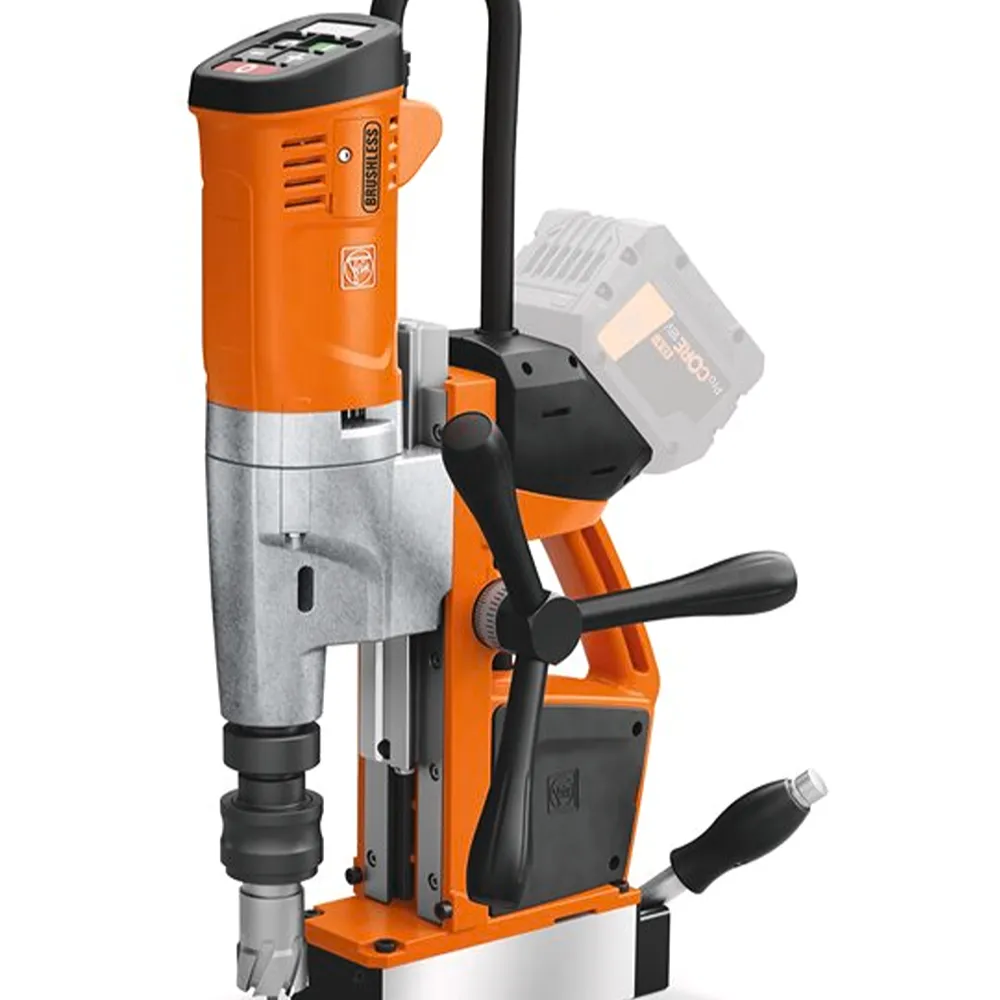

Fein 71700461000 AKBU 35 PMQW AS Cordless Universal Magnetic Core Drill
The FEIN AKBU 35 PMQW AS Cordless Universal Magnetic Core Drill (71700461000) is a high-performance, battery-powered magnetic drilling machine engineered for professional metalworking, fabrication, construction and on-site applications. Designed to deliver maximum mobility without compromising power, this cordless magnetic core drill is ideal for use in locations where mains power is unavailable or impractical.
Powered by a durable brushless motor and equipped with a permanent magnetic base, the AKBU 35 PMQW AS provides secure adhesion to ferrous surfaces and smooth, controlled drilling performance. Its compact and lightweight design significantly reduces operator fatigue while supporting a wide range of applications including core drilling, twist drilling, tapping, countersinking and reaming up to 35 mm in diameter.
Features
- Professional cordless magnetic core drill for drilling up to 35 mm
- Brushless motor for high efficiency, durability and reduced maintenance
- Lightweight and compact design for excellent portability and ease of handling
- Permanent magnetic base ensures secure positioning on steel surfaces
- Forward and reverse operation for drilling and tapping applications
- MT2 tool holder for direct use of industrial cutting tools
- Electronic speed control for precise drilling performance
- Tilt sensor automatically stops the motor if movement is detected
- Compatible with 18 V AMPShare battery system
- Large stroke range for enhanced drilling flexibility.
In the box -
- 1 magnetic core drill
- 1 x coolant pump
- 1 lashing strap
- 1 chip hook
- 1 centring pin 100 mm
- 1 contact guard
- 1 drift key
- 1 plastic carrying case
| Technical Data | |
|---|---|
| Battery voltage | 18 V |
| Battery compatibility | Li-ion / ProCORE Li-ion** |
| Battery interface | 18 V AMPShare |
| Motor | brushless |
| Core drill holder | 3/4 in Weldon |
| Tool Holder | MT 2 |
| Speed, full load | 130 – 520 rpm |
| Carbide cutter max. dia. | 35 mm |
| HSS core drill max. Ø | 35 mm |
| Core drill, drilling depth max. | 50(75)* mm |
| Twist drill max. Ø | 18 mm |
| Tapping | M 14 |
| Countersinking max. Ø | 30 mm |
| Reaming max. Ø | 18 mm |
| Changing the core bit | tool-free |
| Stroke | 135 mm |
| Total stroke range | 260 mm |
| Magnetic holding power | 9,000 N |
| Magnetic foot dimensions | 195 x 70 mm |
| Weight without storage battery | 12.20 kg |
| Vibration and sound emission values | |
| Sound pressure level LpA | 81,6 dB |
| Uncertainty KpA | 5 dB |
| Sound power level LWA | 94,6 dB |
| Uncertainty KWA | 5 dB |
| Sound peak value LpCpeak | 96,2 dB |
| Uncertainty KpCpeak | 5 dB |
| Vibration value αhv 3-way | 0,6 m/s² |
| Uncertainty Kα | 1,5 m/s² |
