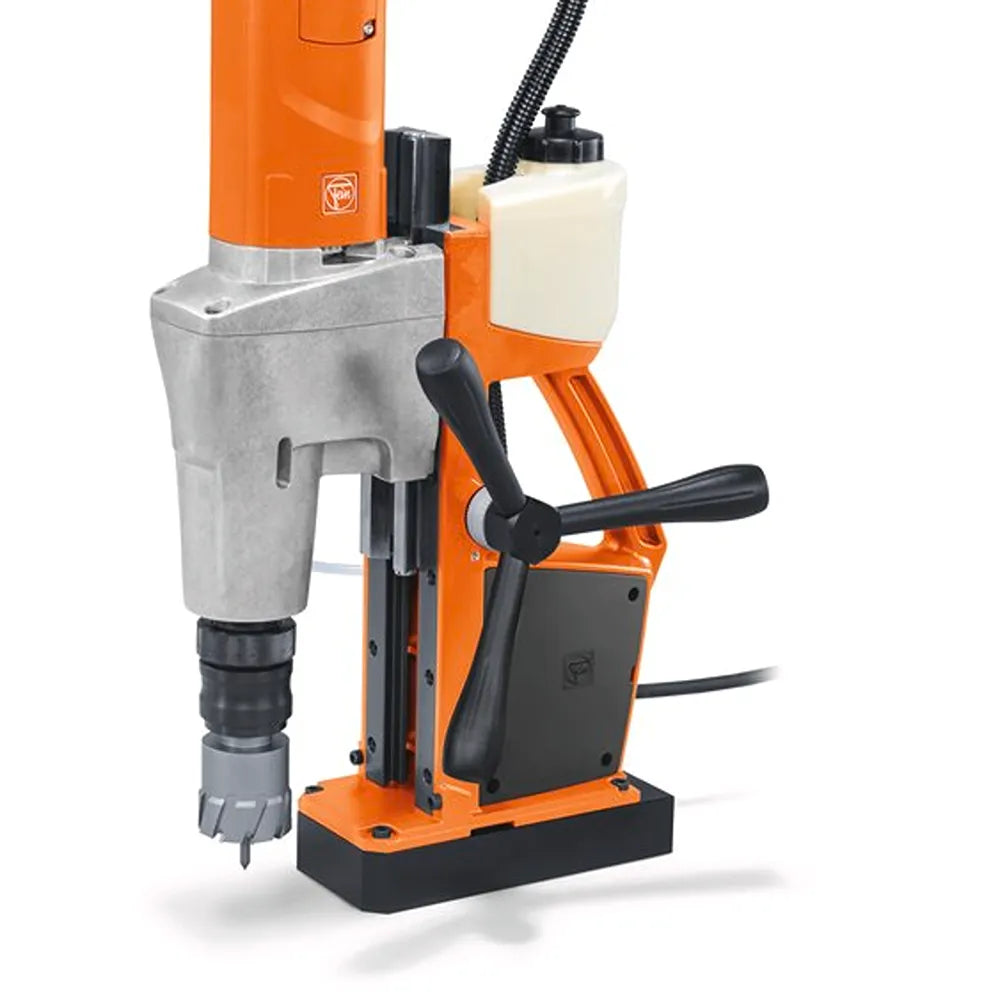

Fein 72704061241 KBM 50 U Metal Core Drilling Unit 50mm 110V
The FEIN KBM 50 U Metal Core Drilling Unit 50 mm 110V (72704061241) is a professional universal magnetic drilling machine engineered for precision metal drilling in fabrication, maintenance and on-site applications. Designed to operate on a 110V power supply, this robust mag drill delivers dependable performance, smooth feed control and accurate hole-making in steel plates, structural profiles and other ferrous materials up to 50 mm in diameter.
Featuring a strong magnetic base for secure adhesion, variable speed control and ergonomic feed operation, the KBM 50 U provides stable drilling progression and controlled performance in demanding workshop and industrial environments. Its durable construction and user-friendly design make it a reliable choice for professional welders, fabricators, technicians and contractors seeking efficient and precise drilling results.
Features
- Universal magnetic core drill engineered for precision drilling up to 50 mm
- 110V motor suitable for workshop and industrial environments
- Strong magnetic base ensures secure adhesion to ferrous surfaces
- Variable speed control for adaptability to material and drill size
- Ergonomic feed control for smooth, controlled drilling progression
- Reversible rotation for versatile drilling tasks
- Durable professional construction for long-term reliability
- Supports core drilling, twist drilling and tapping operations.

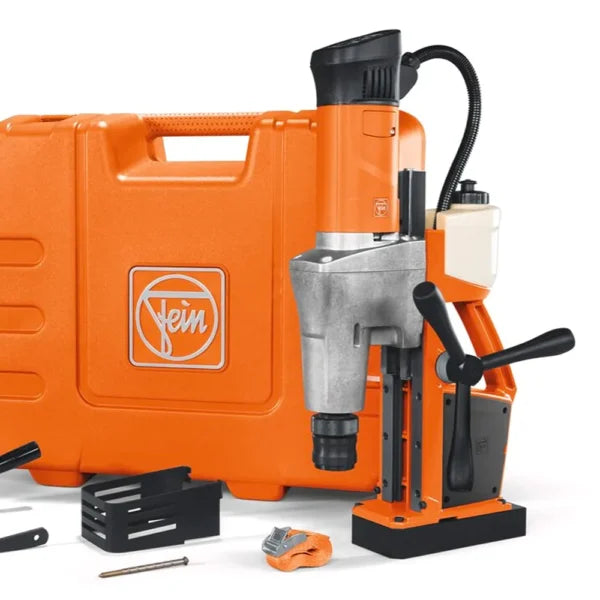

In the box
- 1 magnetic core drill
- 1 coolant tank
- 1 lashing strap
- 1 chip hook
- 1 centering pin
- 1 contact guard
- 1 case
| Technical Data | |
|---|---|
| Current/Voltages | 110 V |
| Input | 1,200 W |
| Output | 610 W |
| Core drill holder | 3/4 in Weldon |
| Load speed in speed 2 | 260 – 520 rpm |
| Tool Holder | MK 3 |
| Carbide cutter max. dia. | 50 mm |
| HSS core drill max. Ø | 40 mm |
| Core drill, drilling depth max. | 50(75)* mm |
| Twist drill max. Ø | 23 mm |
| Tapping | M 16 |
| Countersinking max. Ø | 50 mm |
| Reaming max. Ø | 23 mm |
| Changing the core bit | tool-free |
| Stroke | 145 mm |
| Total stroke range | 315 mm |

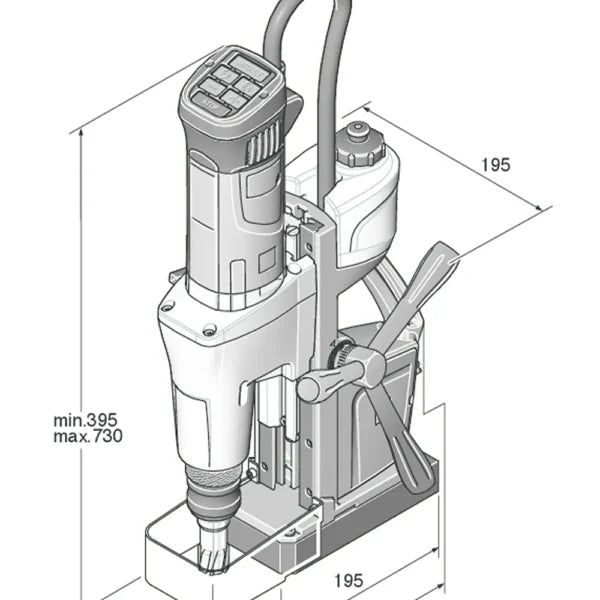

| Magnetic foot dimensions | 195 x 90 mm |
| Cable with plug | 4 m |
| Weight | 14.00 kg |
| Vibration and sound emission values | |
| Sound pressure level LpA | 82,1 dB |
| Uncertainty KpA | 5 dB |
| Sound power level LWA | 95,1 dB |
| Uncertainty KWA | 5 dB |
| Sound peak value LpCpeak | 96,2 dB |
| Uncertainty KpCpeak | 5 dB |
| Vibration value αhv 3-way | < 2,5 m/s² |
| Uncertainty Kα | 1,5 m/s² |
