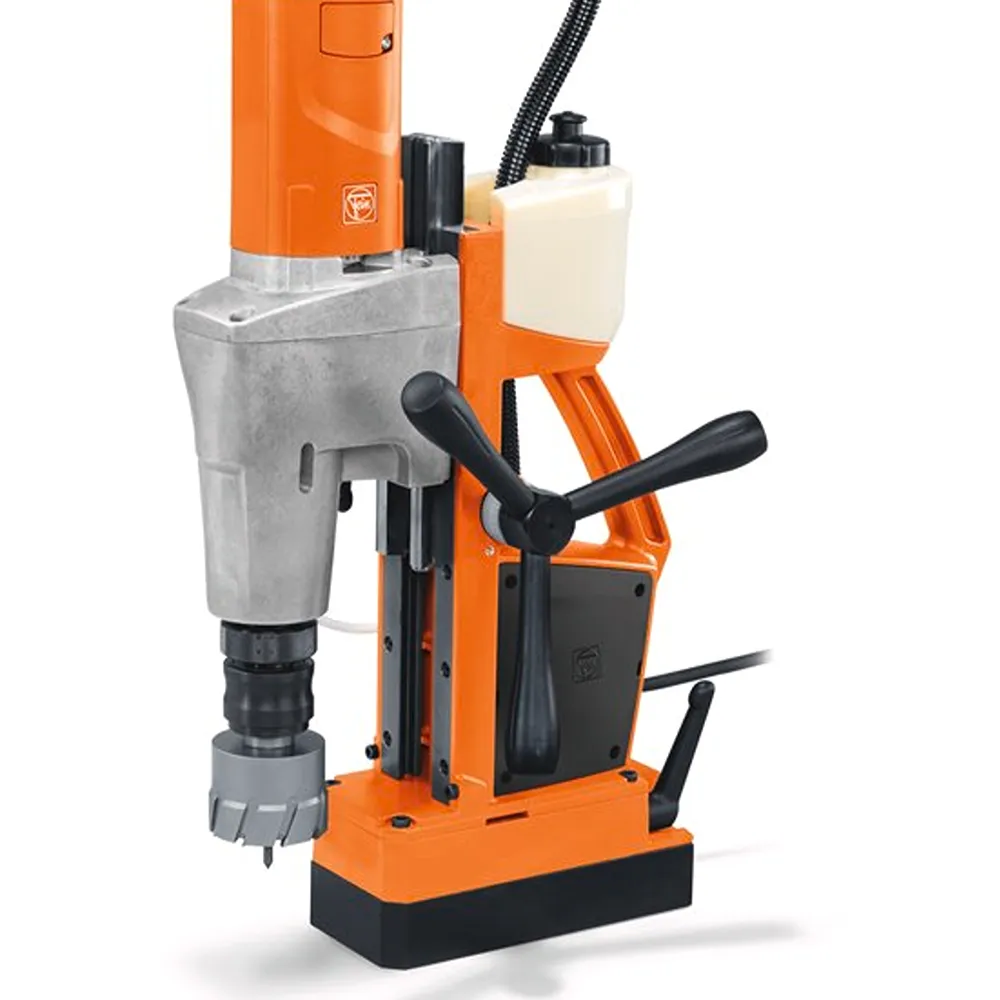

Fein 72704361241 KBM 65 U Metal Core Drilling Unit 65mm 110V
The FEIN KBM 65 U Metal Core Drilling Unit 65 mm 110V (72704361241) is a professional universal magnetic drilling machine engineered for heavy-duty metalwork, fabrication, industrial maintenance and on-site drilling applications. Designed to operate on a 110V supply, this versatile mag drill combines powerful drilling capacity with smooth performance, delivering accurate core drilling, twist drilling, tapping and countersinking in steel plates, structural profiles and thick metal sections.
Featuring a robust motor, secure magnetic base and ergonomic design, the KBM 65 U ensures stable drilling progression and reliable hole-making performance in demanding workshop and jobsite environments. Its durable construction, intuitive controls and strong magnetic adhesion make it a dependable choice for professional welders, fabricators, contractors and maintenance technicians tackling a wide range of drilling tasks with precision and efficiency.
Features
- Universal magnetic core drill engineered for high-performance drilling up to 65 mm
- 110V motor for versatile use in workshops and on-site locations
- Strong magnetic base ensures stable adhesion to ferrous work surfaces
- Ergonomic feed control for smooth, controlled drilling progression
- Variable speed and reversible rotation support multiple drilling applications
- Durable professional construction built for heavy use
- Compact and balanced design for improved handling and reduced fatigue
- Supports core drilling, twist drilling, tapping and countersinking operations

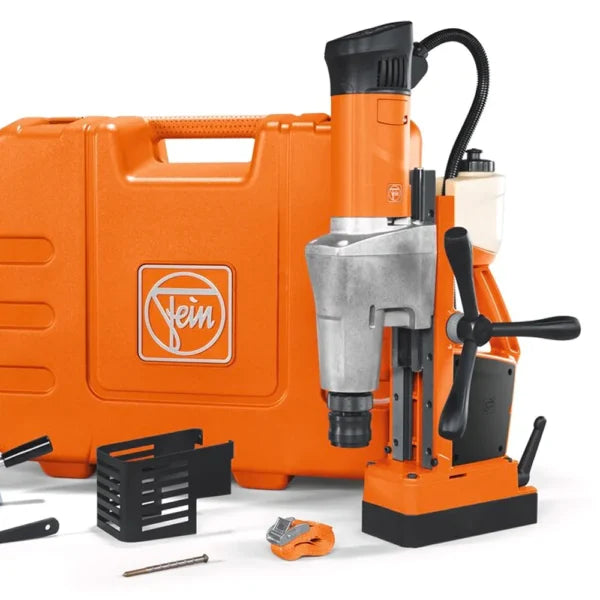

In the box -
- 1 magnetic core drill
- 1 coolant tank
- 1 lashing strap
- 1 chip hook
- 1 centering pin
- 1 contact guard
- 1 drift key
- 1 case
| Technical Data | |
|---|---|
| Current/Voltages | 110 V |
| Input | 1,300 W |
| Output | 730 W |
| Core drill holder | 3/4 in Weldon |
| Load speed in speed 2 | 260 – 520 rpm |
| Tool Holder | MK 3 |
| Carbide cutter max. dia. | 65 mm |
| HSS core drill max. Ø | 45 mm |
| Core drill, drilling depth max. | 50(75)* mm |
| Twist drill max. Ø | 25 mm |
| Tapping | M 20 |
| Countersinking max. Ø | 50 mm |
| Reaming max. Ø | 25 mm |
| Changing the core bit | tool-free |
| Stroke | 145 mm |
| Total stroke range | 315 mm |
| Adjustment range for drill jigs | 6 mm |
| Swivel range for drill jigs | 7° |
| Magnetic holding power | 14,000 N |
| Magnetic foot dimensions | 205 x 95 mm |
| Cable with plug | 4 m |
| Weight | 15.70 kg |
| Vibration and sound emission values | |
| Sound pressure level LpA | 81,6 dB |
| Uncertainty KpA | 5 dB |
| Sound power level LWA | 94,6 dB |
| Uncertainty KWA | 5 dB |
| Sound peak value LpCpeak | 95,2 dB |
| Uncertainty KpCpeak | 5 dB |
| Vibration value αhv 3-way | < 2,5 m/s² |
| Uncertainty Kα | 1,5 m/s² |
