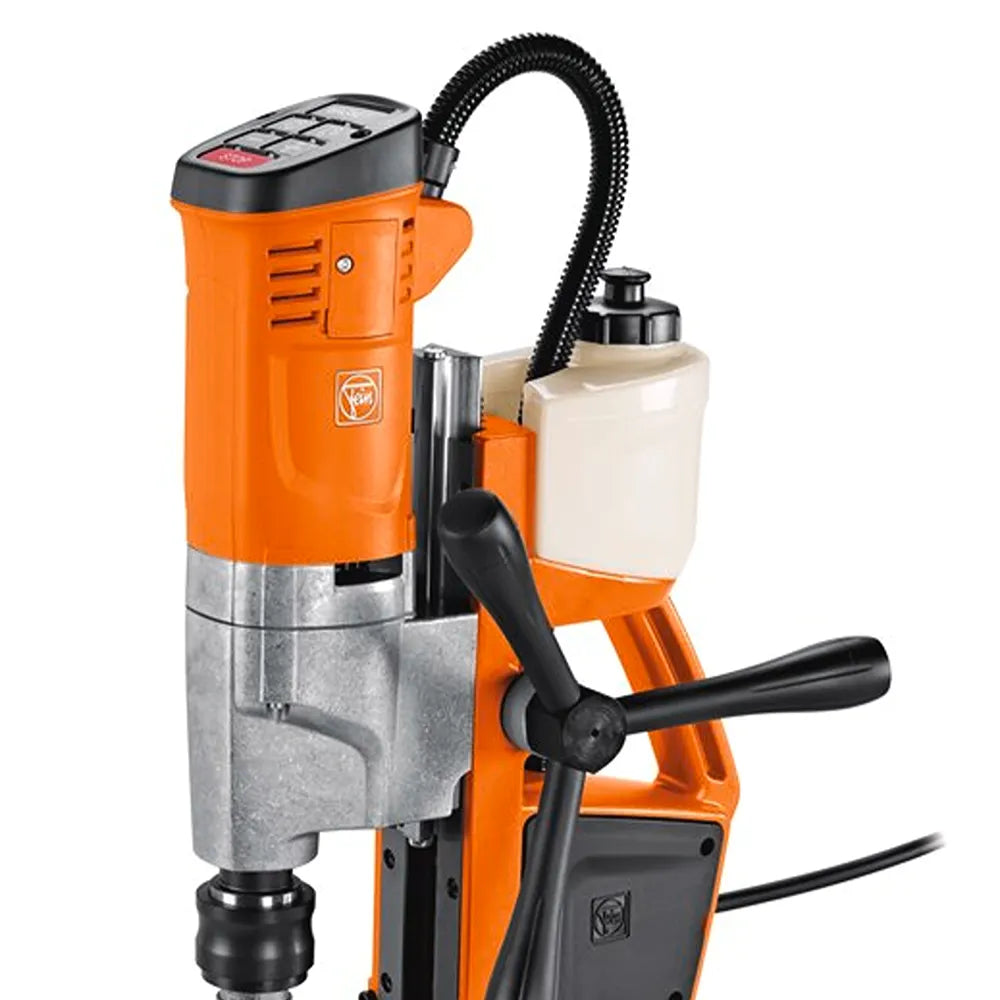

Fein 72705461240 KBU 35 QW Universal Magnetic Core Drill 35mm 110V

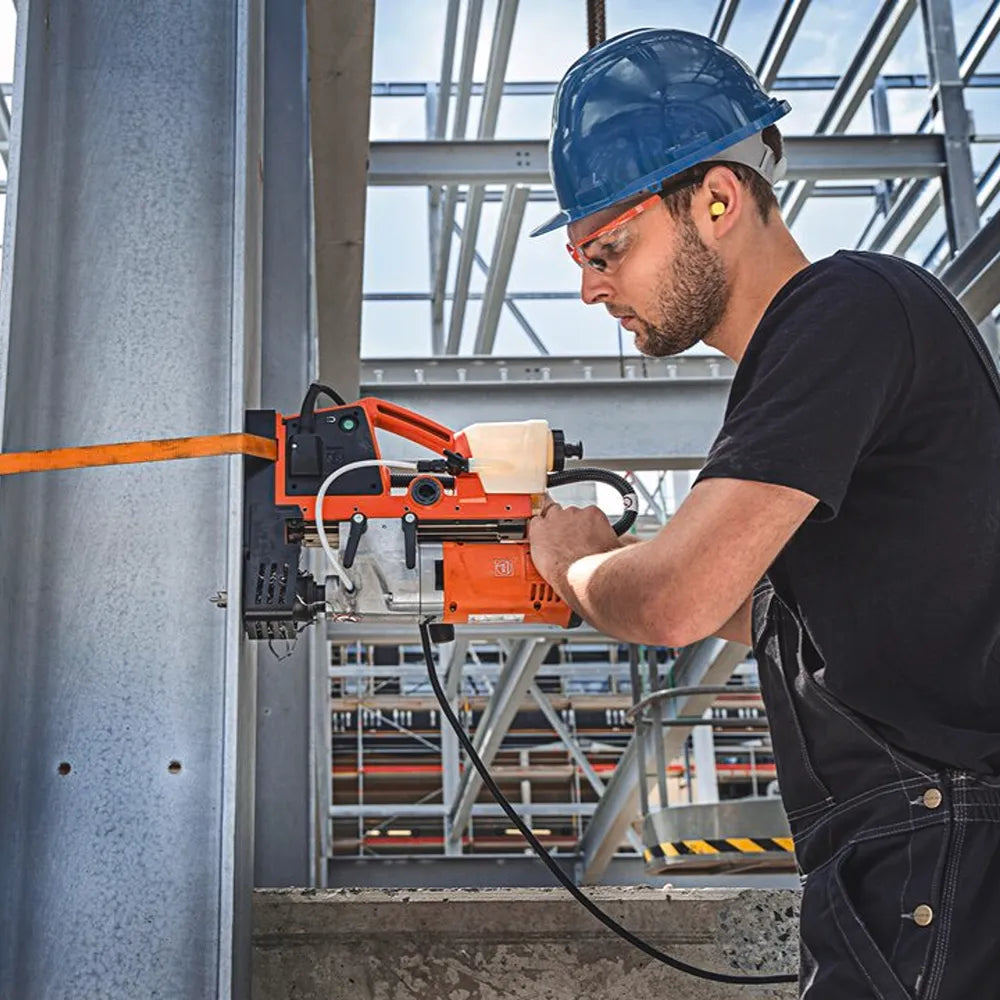

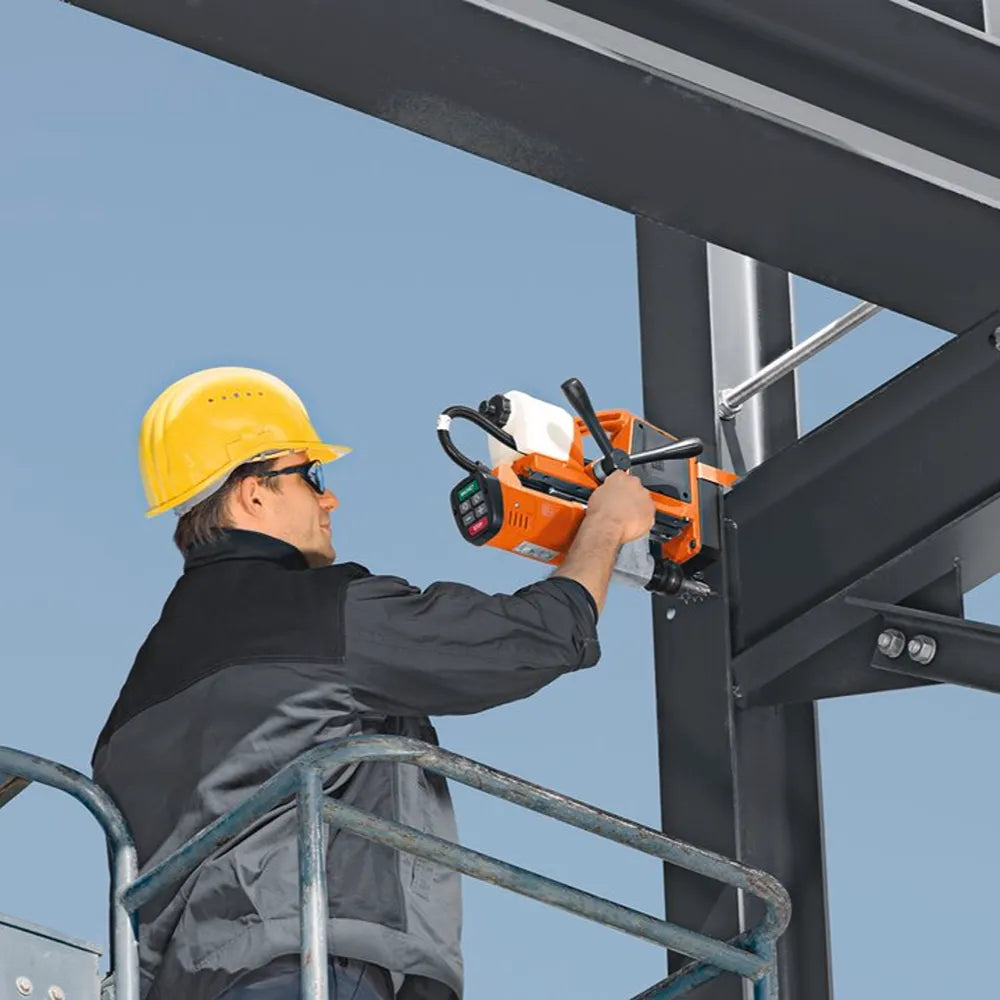

The FEIN KBU 35 QW Universal Magnetic Core Drill 35 mm 110V (72705461240) is a professional-grade magnetic drilling machine designed for precision drilling in metalworking, fabrication, maintenance and on-site applications where a 110V power supply is preferred. This robust mag drill delivers strong magnetic adhesion, smooth feed control and dependable performance, making it ideal for core drilling, twist drilling, tapping and countersinking in steel plates, structural profiles and other ferrous materials.
Built with ergonomic controls and a durable construction, the KBU 35 QW ensures stable drilling progression and secure magnetic hold in various drilling positions. Its balanced design and user-friendly features support professional welders, fabricators, contractors and workshop technicians in achieving accurate, repeatable drilling results in demanding work environments.
Features
- Universal magnetic core drill engineered for precision drilling up to 35 mm
- 110V power supply suitable for workshop and industrial locations
- Strong magnetic base provides secure adhesion on ferrous surfaces
- Ergonomic feed control for smooth, controlled drilling progression
- Variable speed and reversible rotation for versatile drilling applications
- Compact and balanced design for improved handling and reduced fatigue
- Durable professional construction for long-term reliability
- Supports core drilling, twist drilling, tapping and countersinking operations

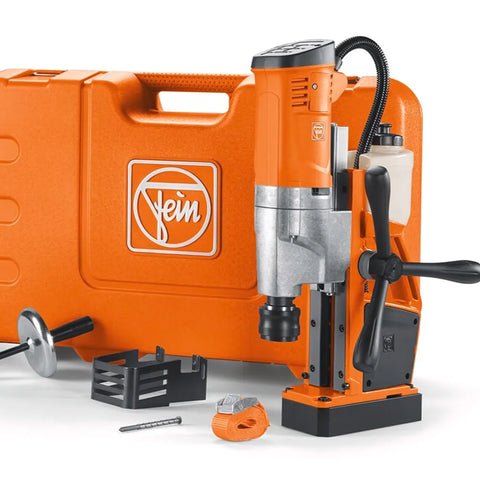

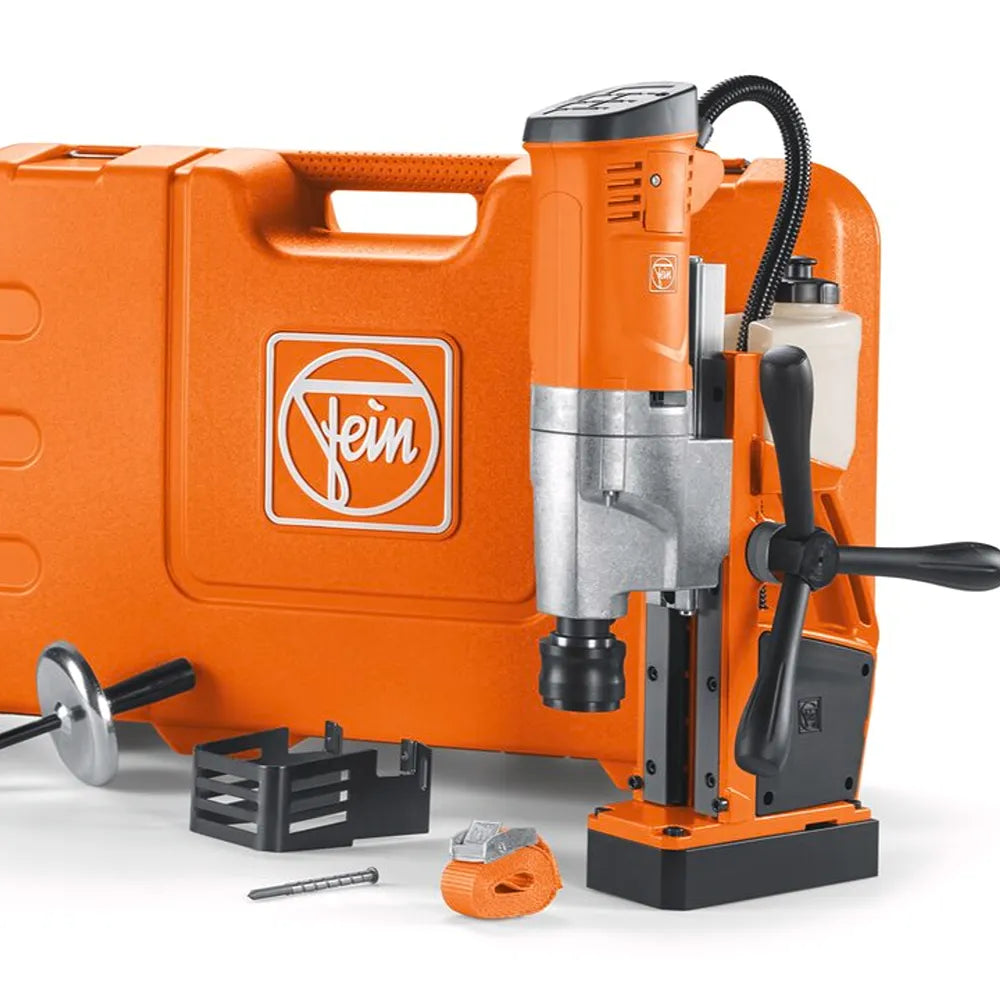

In the box -
- 1 magnetic core drill
- 1 coolant tank
- 1 lashing strap
- 1 chip hook
- 1 centering pin
- 1 contact guard
- 1 case
| Technical Data | |
|---|---|
| Input | 1,010 W |
| Output | 550 W |
| Core drill holder | 3/4 in Weldon |
| Speed, full load | 130 – 520 rpm |
| Carbide cutter max. dia. | 35 mm |
| HSS core drill max. Ø | 35 mm |
| Core drill, drilling depth max. | 50 mm |
| Twist drill max. Ø | 16 mm |
| Tapping | M 14 |
| Countersinking max. Ø | 31 mm |
| Reaming max. Ø | 16 mm |
| Changing the core bit | tool-free |
| Stroke | 135 mm |
| Total stroke range | 260 mm |
| Magnetic holding power | 10,000 N |
| Magnetic foot dimensions | 175 x 80 mm |
| Cable with plug | 4 m |
| Weight | 10.70 kg |
| Vibration and sound emission values | |
| Sound pressure level LpA | 82,3 dB |
| Uncertainty KpA | 5 dB |
| Sound power level LWA | 95,3 dB |
| Uncertainty KWA | 5 dB |
| Sound peak value LpCpeak | 95,9 dB |
| Uncertainty KpCpeak | 5 dB |
| Vibration value αhv 3-way | < 2,5 m/s² |
| Uncertainty Kα | 1,5 m/s² |
