Fein 72705661240 KBU 35 MQW Universal Magnetic Core Drill 35mm 110V

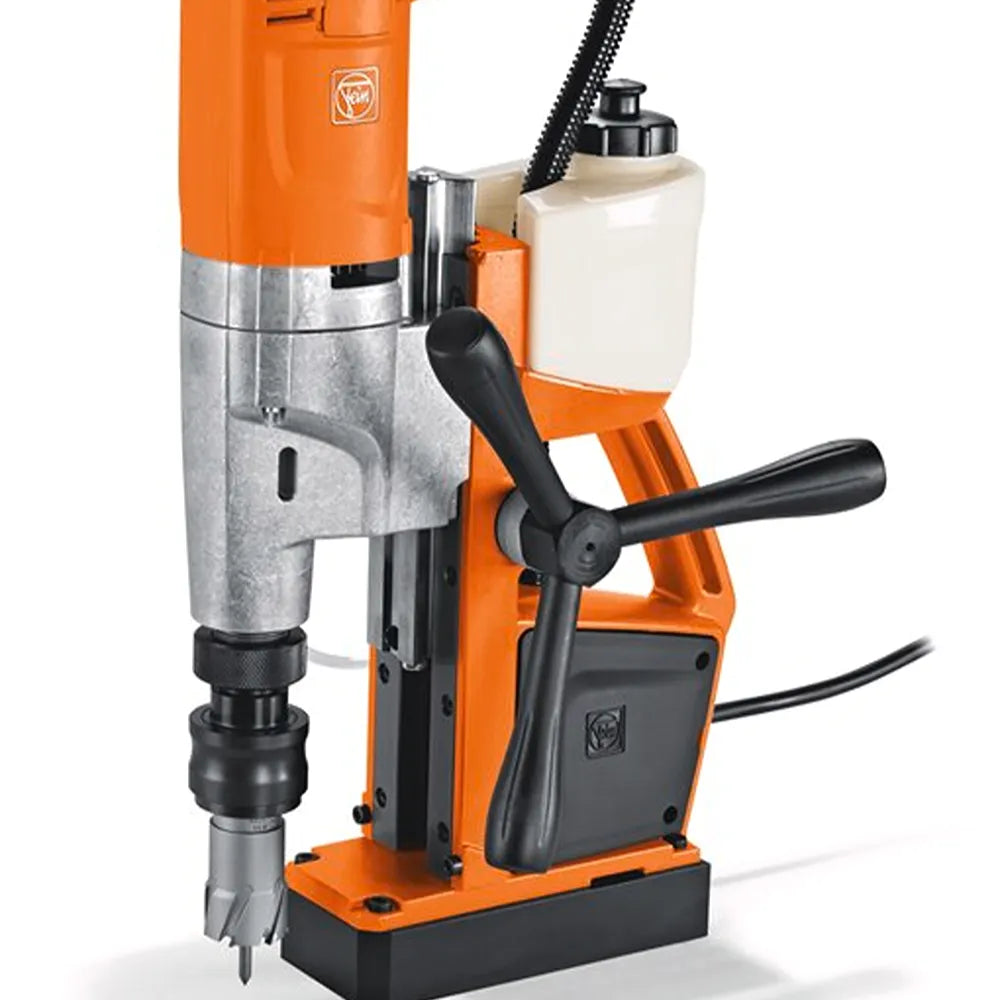

The FEIN KBU 35 MQW Universal Magnetic Core Drill 35 mm 110V (72705661240) is a high-performance magnetic drilling machine engineered for precision drilling in metalworking, fabrication, maintenance and on-site applications. Designed for use with a 110V power supply, this universal mag drill delivers reliable core drilling, twist drilling and tapping performance with strong magnetic adhesion and smooth operation — ideal for professional welders, fabricators, contractors and workshop technicians.
Equipped with an ergonomic feed control, robust motor and secure magnetic base, the KBU 35 MQW enables accurate drilling in steel plates, structural profiles and metal assemblies. Its user-friendly design, stable drilling action and durable construction make it a dependable choice for a wide range of drilling tasks where performance, precision and ease of use are essential.
Features
- Universal magnetic core drill designed for precision drilling up to 35 mm
- 110V motor suitable for workshop and industrial environments
- Strong magnetic base ensures secure adherence to ferrous work surfaces
- Ergonomic feed control for smooth and controlled drilling progression
- Durable construction built for professional use
- Variable speed and reversible rotation for versatile drilling tasks
- Compact and balanced design improves handling and reduces fatigue

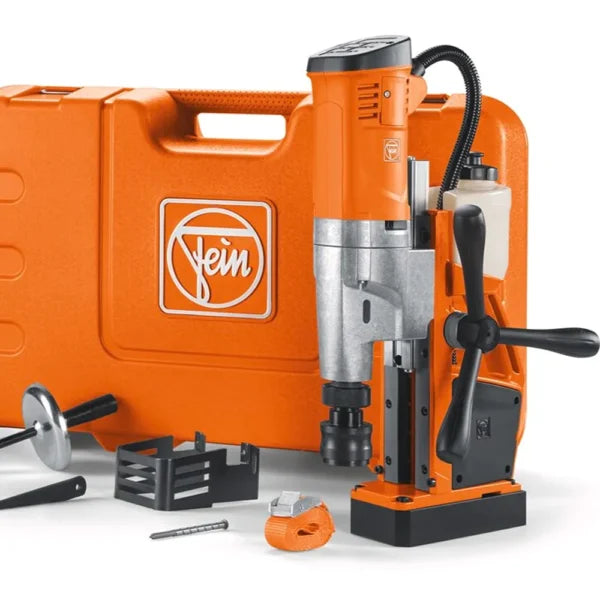

In the box -
- 1 magnetic core drill
- 1 x coolant pump
- 1 centring pin, diameter of 6.35 x 80 mm
- 1 centring pin, diameter of 6.35 x 82 mm
- 1 centring pin, diameter of 6.35 x 100 mm
- 1 lashing strap
- 1 chip hook
- 1 contact guard
- 1 drift key
- 1 plastic carrying case
| Technical Data | |
|---|---|
| Input | 1,010 W |
| Output | 550 W |
| Core drill holder | 3/4 in Weldon |
| Tool Holder | MT 2 |
| Speed, full load | 130 – 520 rpm |
| Carbide cutter max. dia. | 35 mm |
| HSS core drill max. Ø | 35 mm |
| Core drill, drilling depth max. | 50(75)* mm |
| Twist drill max. Ø | 18 mm |
| Tapping | M 14 |
| Countersinking max. Ø | 31 mm |
| Reaming max. Ø | 18 mm |
| Changing the core bit | tool-free |
| Stroke | 135 mm |
| Total stroke range | 260 mm |
| Magnetic holding power | 10,000 N |
| Magnetic foot dimensions | 175 x 80 mm |
| Cable with plug | 4 m |
| Weight | 10.70 kg |
| Vibration and sound emission values | |
| Sound pressure level LpA | 82,3 dB |
| Uncertainty KpA | 5 dB |
| Sound power level LWA | 95,3 dB |
| Uncertainty KWA | 5 dB |
| Sound peak value LpCpeak | 95,9 dB |
| Uncertainty KpCpeak | 5 dB |
| Vibration value αhv 3-way | < 2,5 m/s² |
| Uncertainty Kα | 1,5 m/s² |
