Fein

Fein 72709461240 KBE 32 Endurance Magnetic Core Drill 230V

  • Sale
  • Regular price £524.32

Excludes VAT

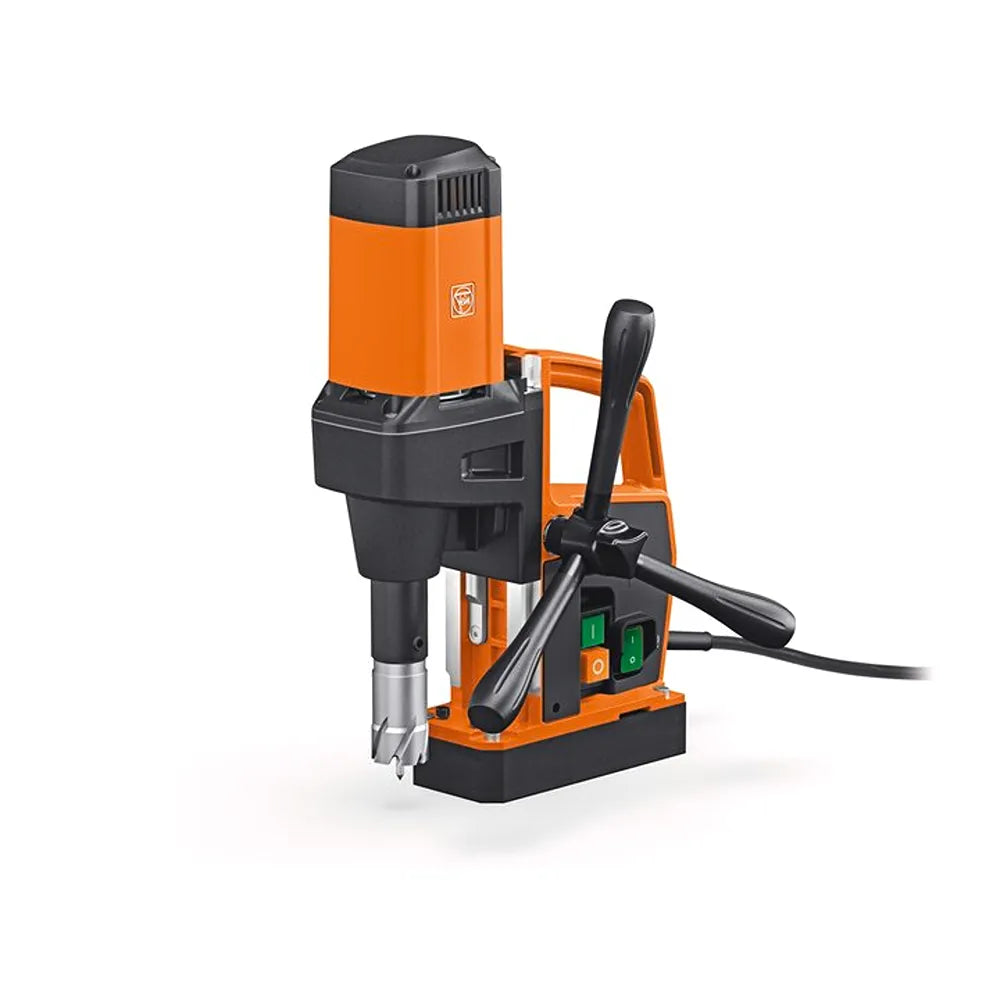

Fein 72709461240 KBE 32 Endurance Magnetic Core Drill 230V

Endurance magnetic core drill up to 32 mm, small and extremely lightweight 1-speed Endurance magnetic core drilling machine for core drilling on the construction site.

The FEIN KBE 32 Endurance Magnetic Core Drill 230V (72709461240) is a high-performance magnetic drilling machine designed for professional metalworkers, fabricators, contractors and maintenance technicians. Engineered for precise and reliable drilling in structural steel, plate and metal fabrication applications, this endurance mag drill combines robust power, stable magnetic anchoring and ergonomic design to deliver consistent, accurate holes in demanding workshop and on-site environments.

Featuring a powerful motor and a strong magnetic base, the KBE 32 Endurance Drill provides smooth drilling operations with secure attachment to ferrous surfaces. Its rugged construction and user-friendly controls make it ideal for drilling holes up to 32 mm in diameter, offering a dependable solution for installation projects, steelwork fabrication, mechanical assemblies and industrial maintenance tasks where performance and durability are essential.

Features

  • Professional magnetic core drill for precision drilling in steel and ferrous metals
  • High-output motor delivers dependable drilling power and consistent performance
  • Robust magnetic base ensures secure adhesion to flat metal surfaces
  • Ergonomic design for comfortable handling and reduced operator fatigue
  • Integrated feed control for smooth drilling advancement
  • Compact and durable construction for workshop and on-site use
  • Suitable for drilling in vertical, horizontal and overhead positions

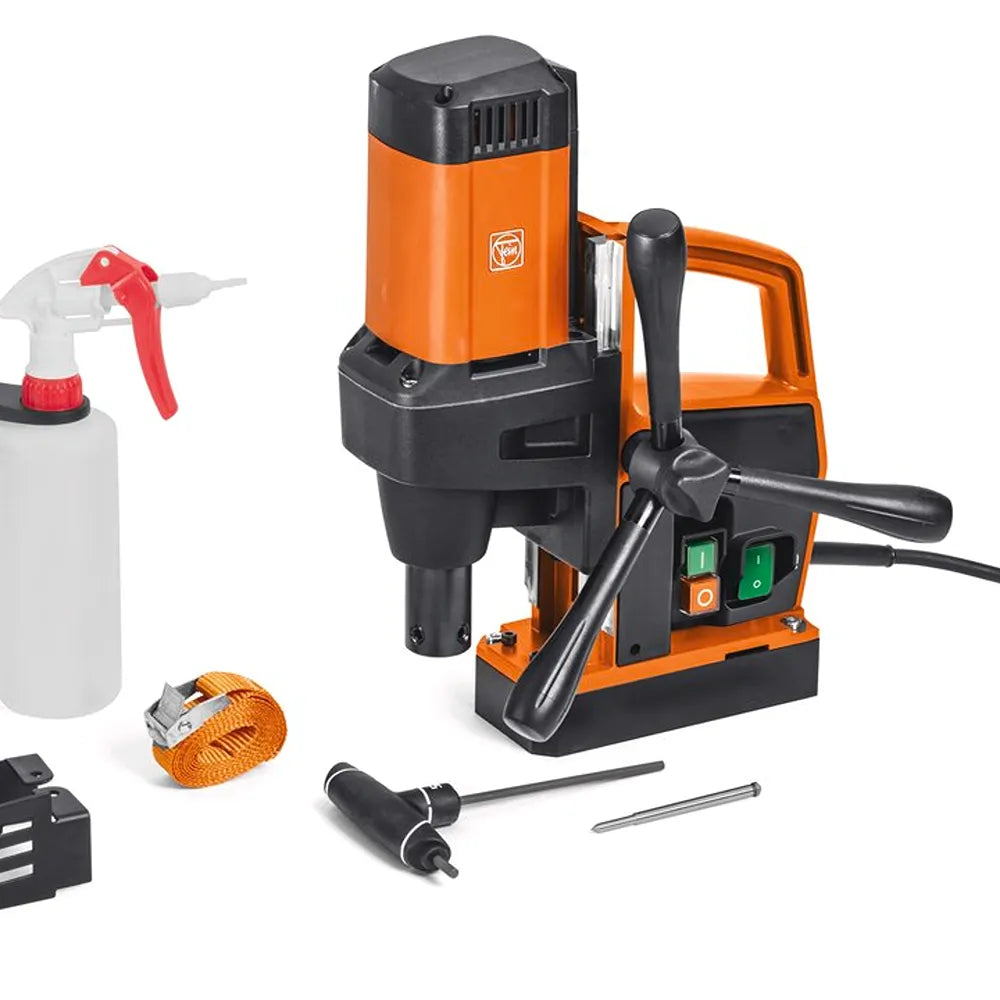

In the box -

  • 1 magnetic core drill
  • 1 coolant tank
  • 1 lashing strap
  • 1 centring pin 100 mm
  • 1 contact guard
  • 1 socket head wrench 5 mm
Technical Data
Input 1,200 W
Output 770 W
Core drill holder 3/4 in Weldon
Speed, full load 450 rpm
Speed, no load 700 rpm
Carbide cutter max. dia. 32 mm
HSS core drill max. Ø 32 mm
Core drill, drilling depth max. 50 mm
Stroke 90 mm
Magnetic holding power 10,000 N

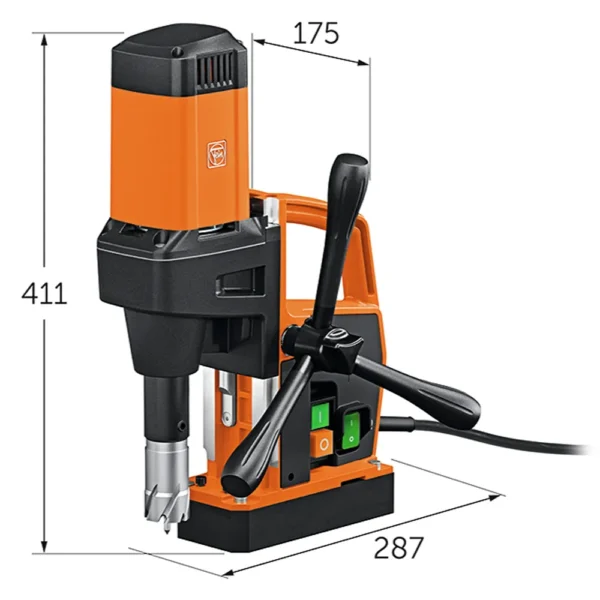

Magnetic foot dimensions 175 x 80 mm
Cable with plug 3 m
Weight 10.80 kg
Vibration and sound emission values
Sound pressure level LpA 84.4 dB
Uncertainty KpA 5 dB
Sound power level LWA 97.4 dB
Uncertainty KWA 5 dB
Sound peak value LpCpeak 97.4 dB
Uncertainty KpCpeak 5 dB
Vibration value αhv 3-way 0.9 m/s²
Uncertainty Kα 1.5 m/s²
