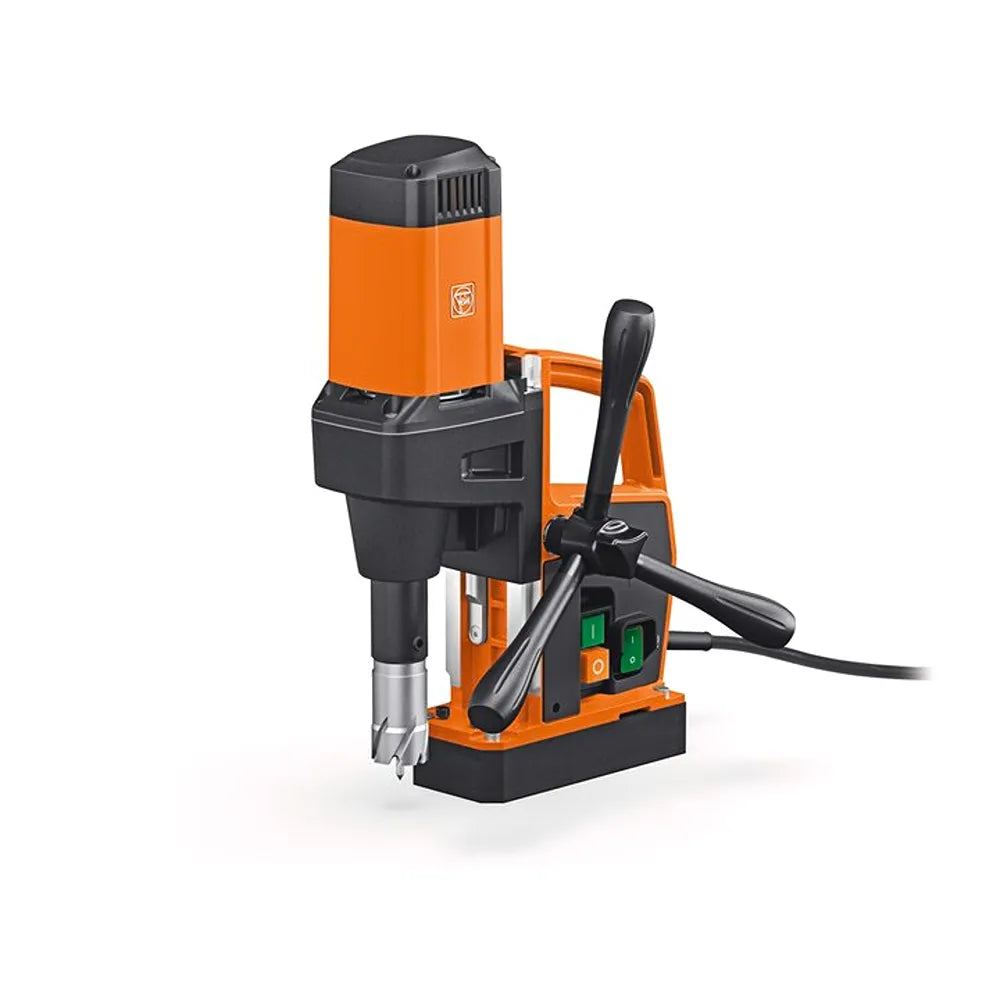

Fein 72709461241 KBE 32 Endurance Magnetic Core Drill 110V
The FEIN KBE 32 Endurance Magnetic Core Drill 110V (72709461241) is a professional magnetic drilling machine engineered for dependable, high-precision drilling in steel and ferrous metals. Designed specifically for workshop and on-site applications, this endurance mag drill delivers consistent performance with a powerful motor, strong magnetic anchoring and ergonomic design that supports accurate hole drilling up to 32 mm in diameter.
Ideal for metal fabricators, maintenance technicians, construction professionals and installation crews, the KBE 32 Endurance Drill offers smooth, controlled drilling with secure magnetic hold on flat metal surfaces. Its robust construction and intuitive feed control make it suitable for vertical, horizontal and overhead drilling tasks, providing a reliable and efficient solution for demanding metalworking environments where performance and durability matter.
Features
- Professional magnetic core drill for precision drilling up to 32 mm in ferrous metals
- Powerful motor delivers dependable drilling power and consistent performance
- Strong magnetic base ensures secure adhesion to flat steel surfaces
- Ergonomic feed control for smooth drilling progression
- Compact and durable design suited for workshop and jobsite use

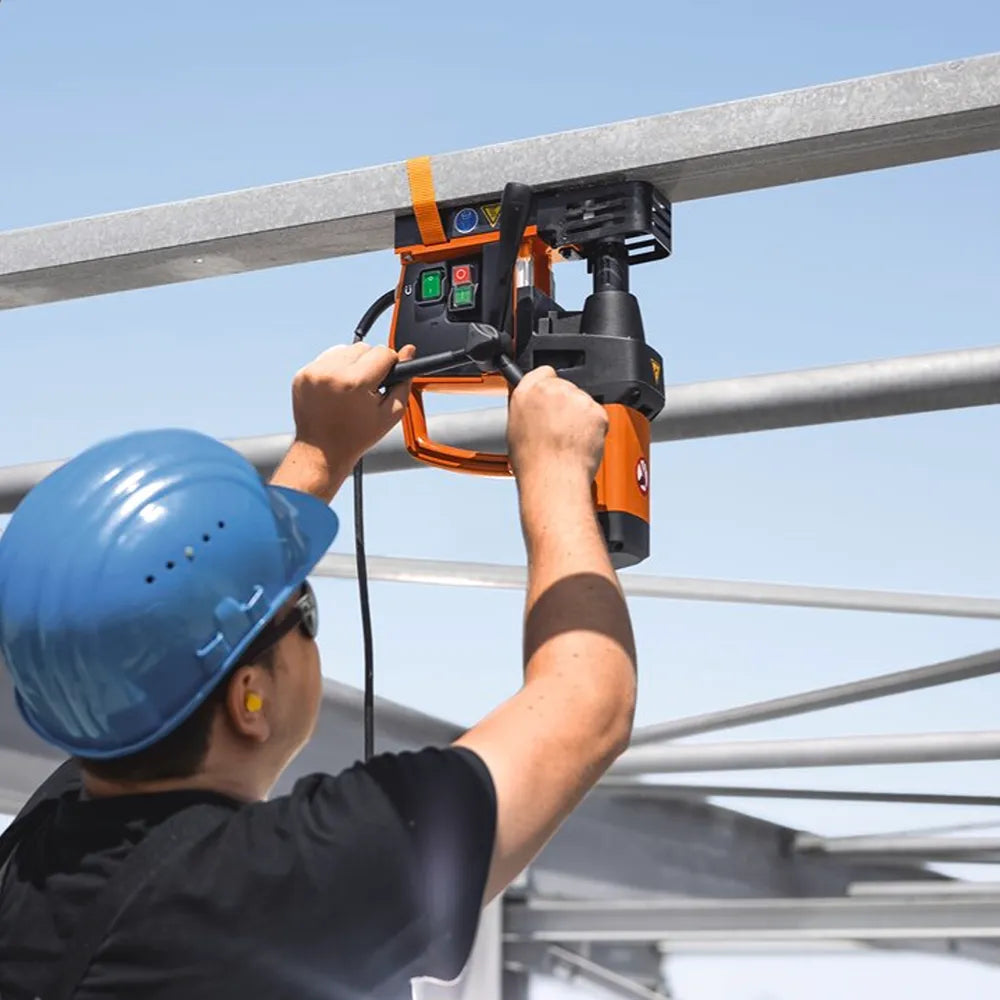

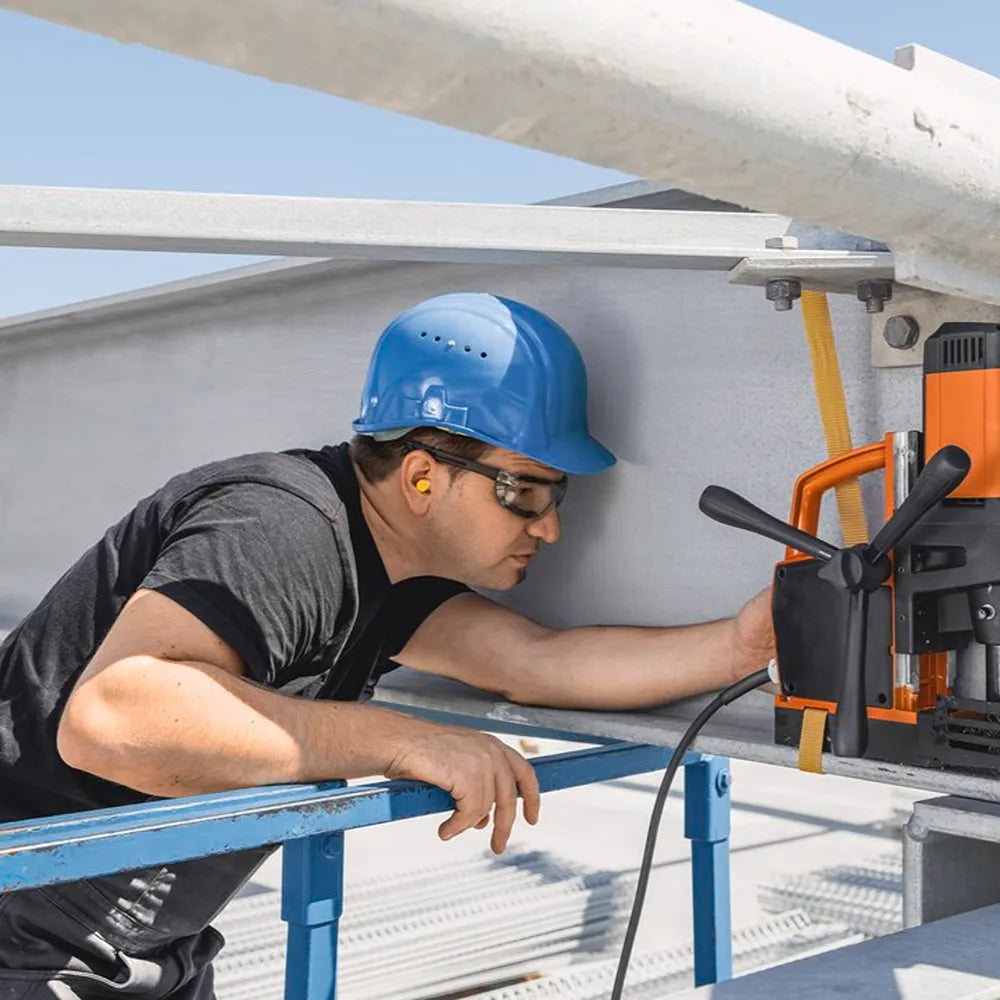

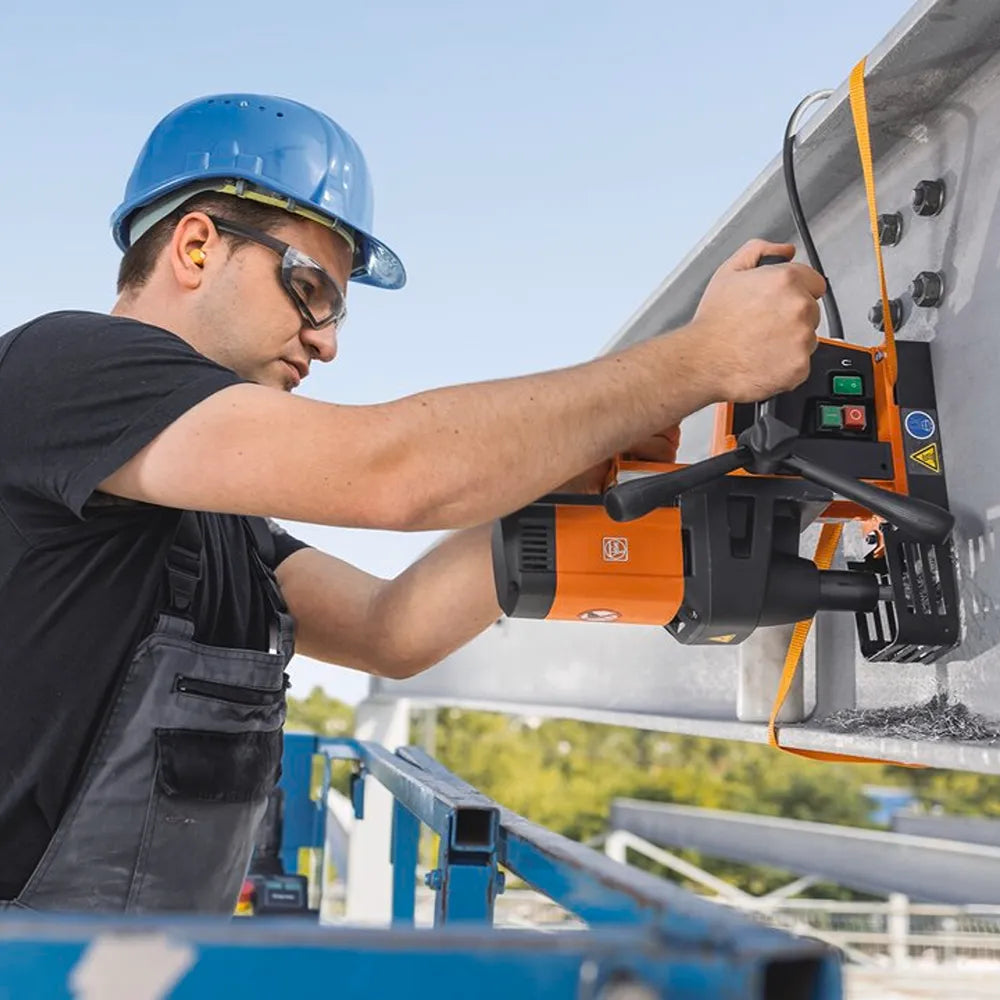

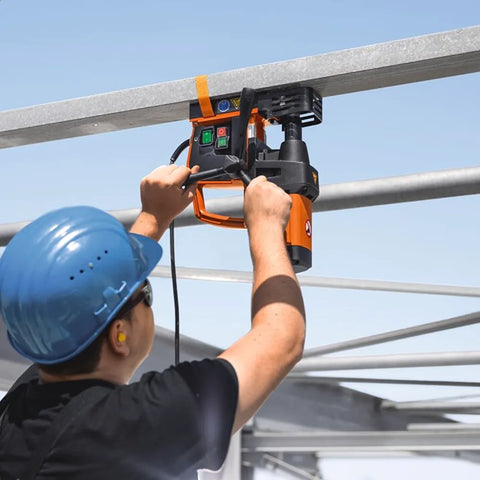

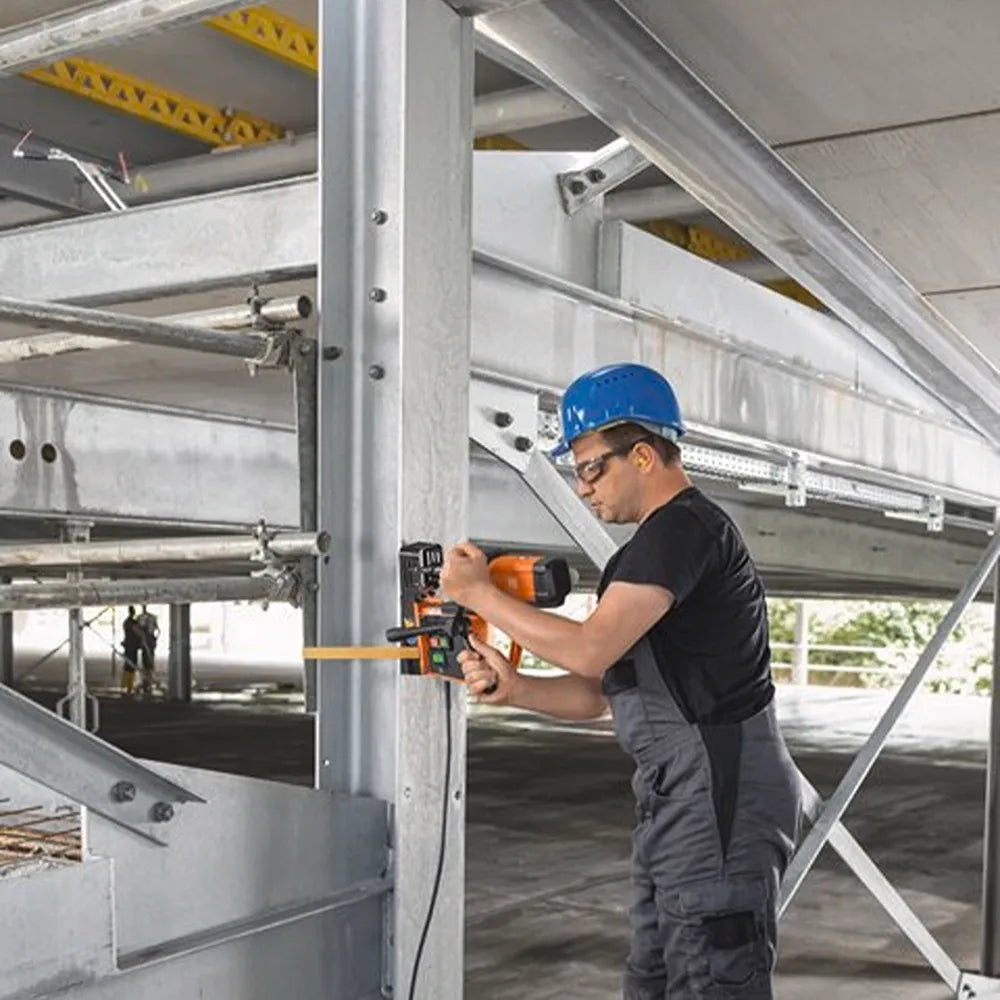

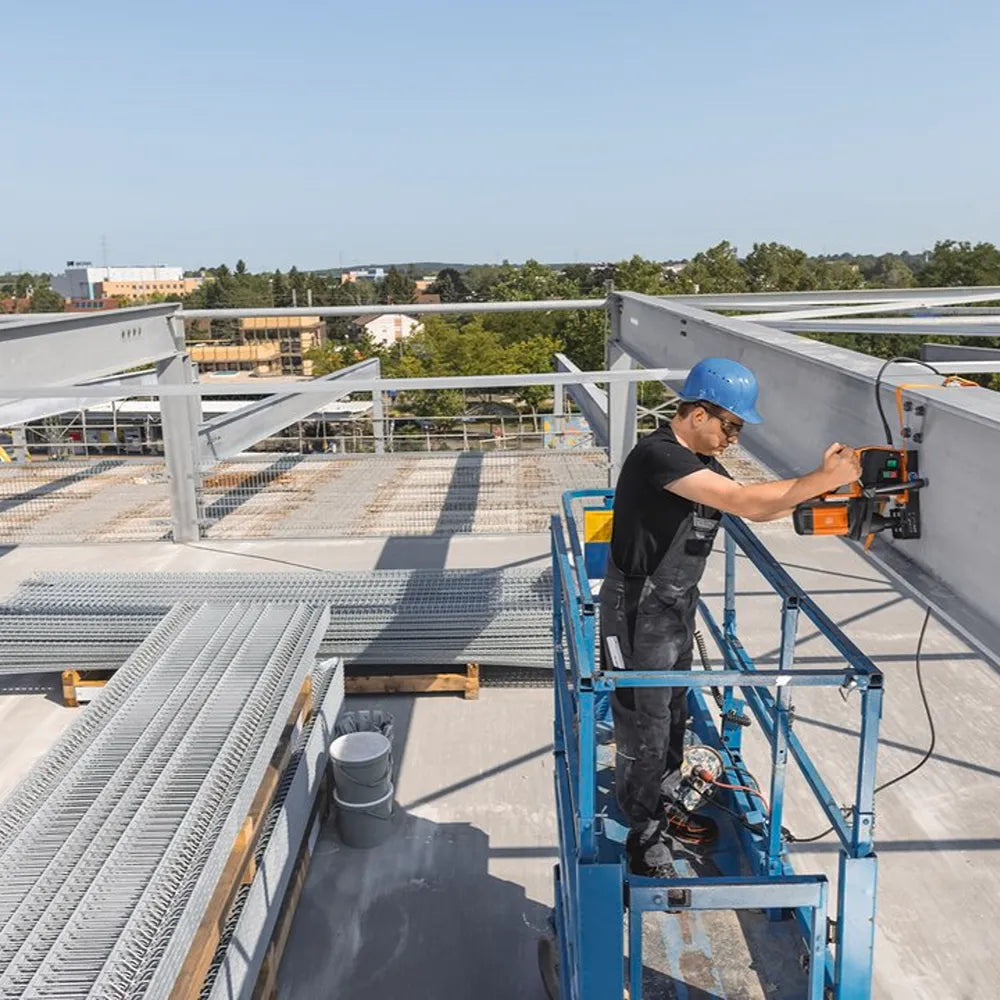

- Suitable for vertical, horizontal and overhead drilling applications
- Integrated safety features for enhanced operator protection

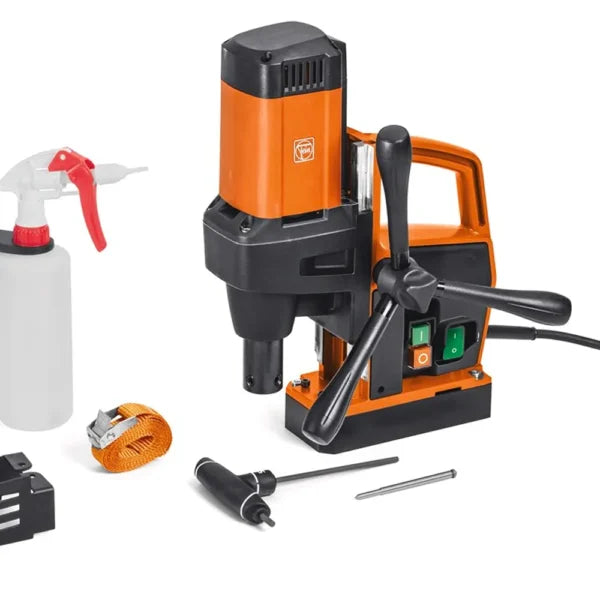

In the box -
- 1 magnetic core drill
- 1 coolant tank
- 1 lashing strap
- 1 centring pin 100 mm
- 1 contact guard
- 1 socket head wrench 5 mm
| Technical Data | |
|---|---|
| Current/Voltages | 110 V |
| Input | 1,200 W |
| Output | 770 W |
| Core drill holder | 3/4 in Weldon |
| Speed, full load | 450 rpm |
| Speed, no load | 700 rpm |
| Carbide cutter max. dia. | 32 mm |
| HSS core drill max. Ø | 32 mm |
| Core drill, drilling depth max. | 50 mm |
| Stroke | 90 mm |
| Magnetic holding power | 10,000 N |

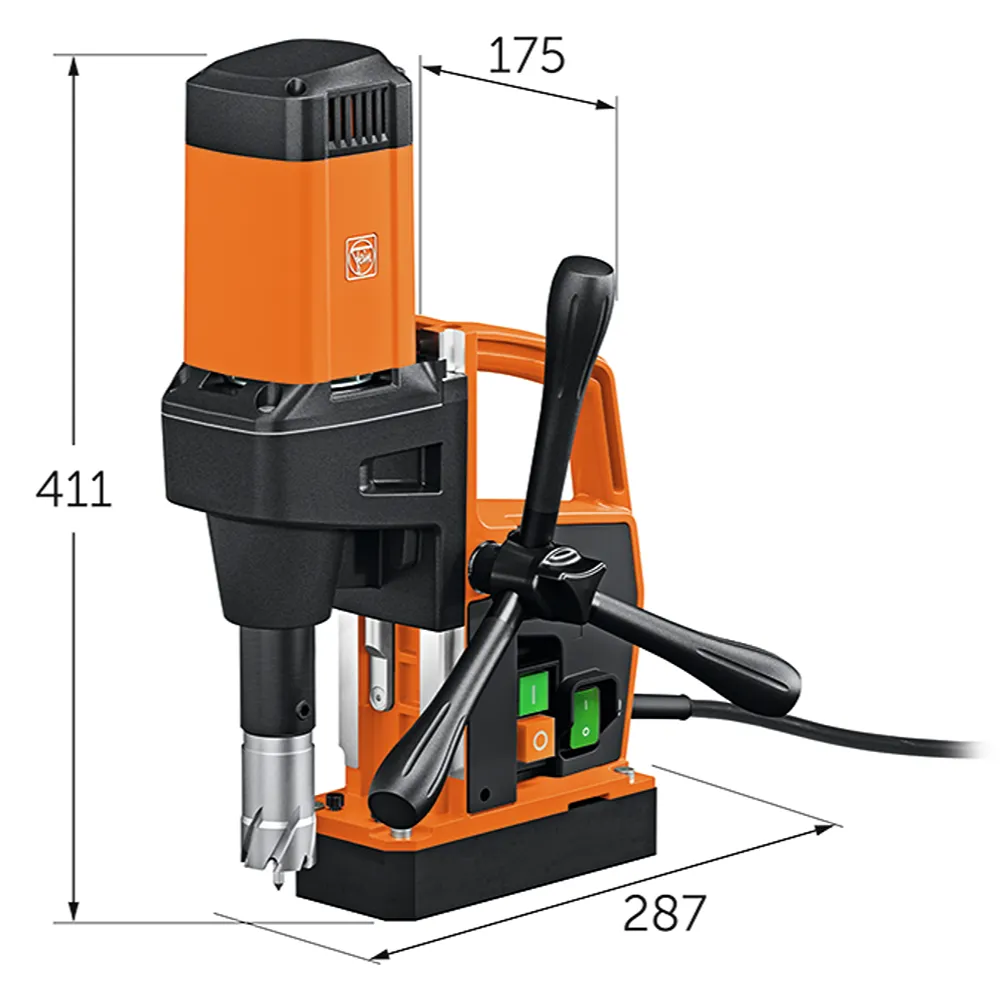

| Magnetic foot dimensions | 175 x 80 mm |
| Cable with plug | 3 m |
| Weight | 10.80 kg |
| Vibration and sound emission values | |
| Sound pressure level LpA | 84.4 dB |
| Uncertainty KpA | 5 dB |
| Sound power level LWA | 97.4 dB |
| Uncertainty KWA | 5 dB |
| Sound peak value LpCpeak | 97.4 dB |
| Uncertainty KpCpeak | 5 dB |
| Vibration value αhv 3-way | 0.9 m/s² |
| Uncertainty Kα | 1.5 m/s² |
