Fein 72732362241 KBC 36 MAGFORCE Compact Magnetic Core Drill 110V

  • Sale
  • Regular price £1,090.99

Excludes VAT

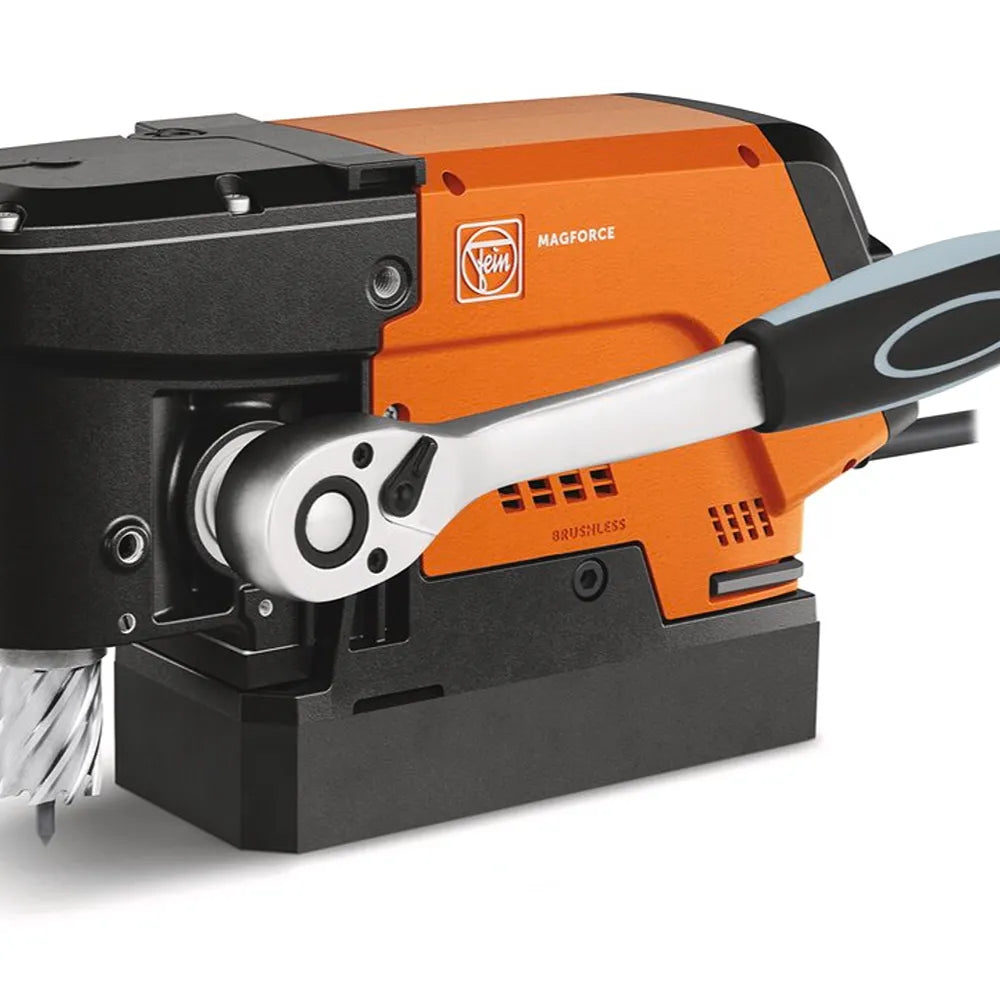

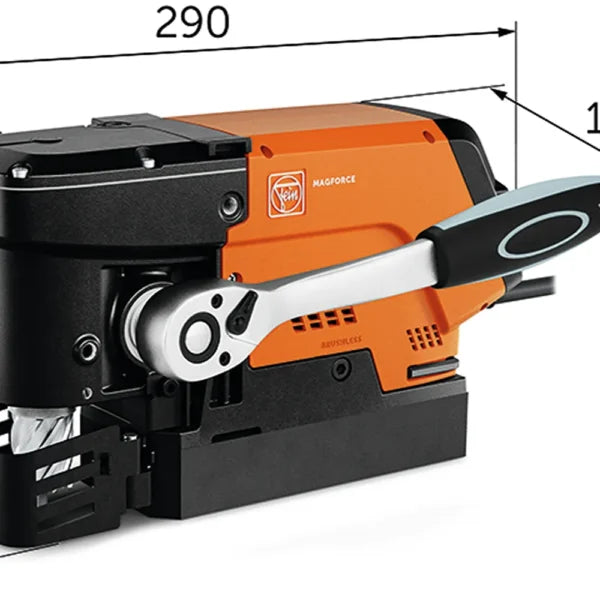

Fein 72732362241 KBC 36 MAGFORCE Compact Magnetic Core Drill 110V

Compact magnetic core drill up to 36 mm, extremely compact and lightweight single-speed compact magnetic core drill with minimal dimensions, ideal for use in confined spaces in the workshop and on site.

The FEIN KBC 36 MAGFORCE (110V) Compact Magnetic Core Drill (72732362241) is a high-performance, portable magnetic drilling machine engineered for professional metalworking, fabrication and on-site drilling applications. Designed for use with a 110V power supply, this compact mag drill delivers strong drilling power, exceptional stability and accurate hole creation in steel, structural metal and plate work.

Featuring FEIN’s advanced MAGFORCE magnetic technology, the KBC 36 MAGFORCE offers enhanced magnetic holding force for secure attachment to ferrous surfaces, even in vertical or overhead positions. Its robust motor, ergonomic design and smooth feed action make it suitable for demanding drilling tasks, providing fast, precise performance in workshops, construction sites and maintenance environments.

Features

  • Compact magnetic core drill designed for precision drilling in steel and ferrous metals
  • MAGFORCE technology provides strong magnetic holding force for secure drilling
  • 110V motor delivers consistent performance for a range of drilling applications
  • Ergonomic, portable design for easy handling and reduced operator fatigue
  • Magnetic base ensures secure adhesion in vertical, horizontal and overhead drilling
  • Smooth feed control for accurate, controlled drilling progression
  • Durable construction suitable for professional workshop and industrial use

In the box

  • 1 magnetic core drill
  • 1 coolant tank
  • 1 lashing strap
  • 1 chip hook
  • 1 centring pin, diameter of 6.35 x 100 mm
  • 1 contact guard
  • 1 case
Technical Data
Input 1,200 W
Output 680 W
Core drill holder 3/4 in Weldon
Speed, full load 130 – 610 rpm
Speed, no load 130 – 660 rpm
Carbide cutter max. dia. 36 mm
HSS core drill max. Ø 36 mm
Core drill, drilling depth max. 35 mm
Twist drill max. Ø 16 mm
Tapping M 12
Countersinking max. Ø 32 mm
Width across corners 40 mm
Height 169 mm
Stroke 46 mm
Magnetic holding power 10,000 N
Magnetic foot dimensions 175 x 80 mm
Cable with plug 3 m
Weight 8.50 kg
Vibration and sound emission values
Sound pressure level LpA 91,5 dB
Uncertainty KpA 5 dB
Sound power level LWA 104,5 dB
Uncertainty KWA 5 dB
Sound peak value LpCpeak 101,8 dB
Uncertainty KpCpeak 5 dB
Vibration value αhv 3-way < 2,5 m/s²
Uncertainty Kα 1,5 m/s²
