Fein 72732461241 KBE 36 MAGSPEED Endurance Magnetic Core Drill 110V

  • Sale
  • Regular price £844.58

Excludes VAT

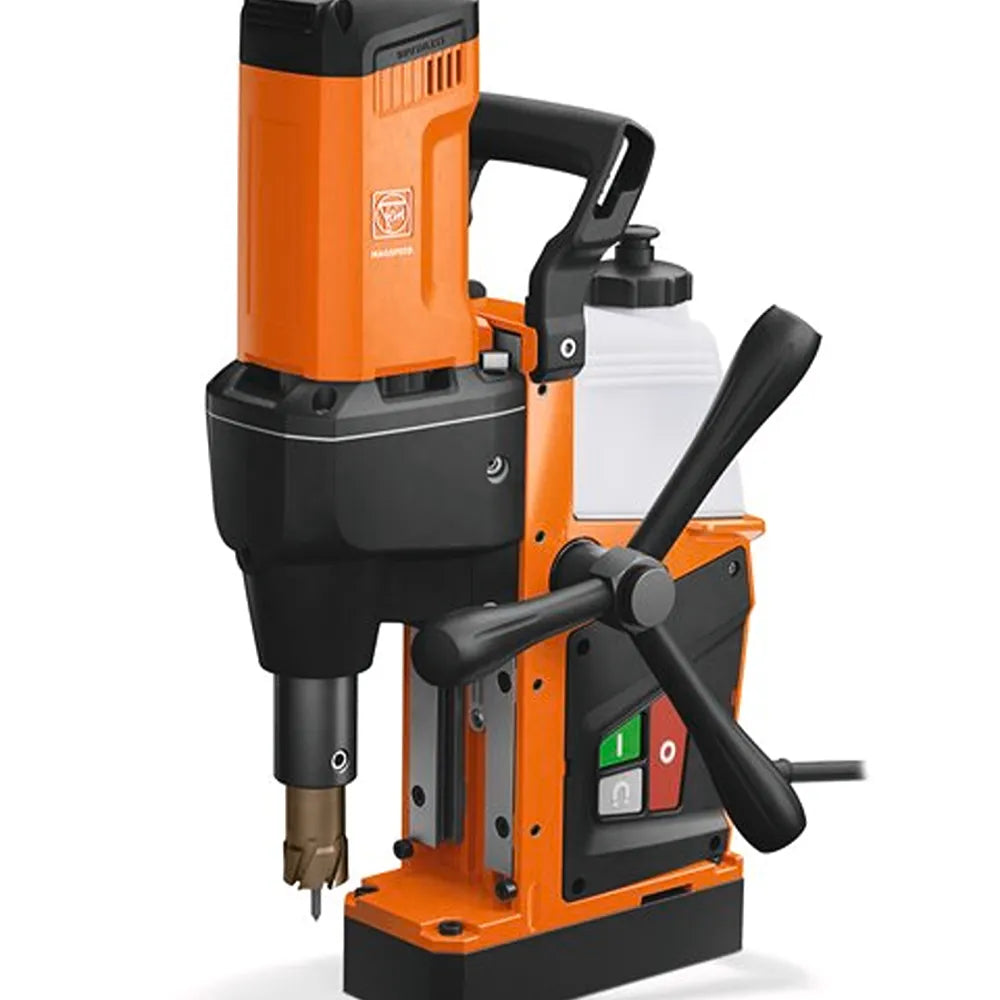

Fein 72732461241 KBE 36 MAGSPEED Endurance Magnetic Core Drill 110V

Endurance magnetic core drill for up to 36 mm, small and lightweight single-speed endurance magnetic core drill offering unique performance and service life even under the most challenging conditions in the workshop and on the construction site.

The FEIN KBE 36 MAGSPEED Endurance Magnetic Core Drill 110V (72732461241) is a compact yet powerful magnetic core drilling machine designed for professional metalworkers, fabricators and construction site professionals. Built to deliver exceptional performance and longevity, this single-speed endurance mag drill offers rapid material removal and consistent drilling results under the most challenging workshop and jobsite conditions.

Featuring a high-power brushless motor and robust magnetic base, the KBE 36 MAGSPEED ensures stable drilling and smooth operation in steel and structural metal applications. Its lightweight design and intuitive controls make it easy to use in confined spaces, while integrated safety features provide added operator protection and precision drilling capability for holes up to 36 mm in diameter.

Features

  • High-performance magnetic core drill for precise metal drilling up to 36 mm
  • Brushless 1 600 W motor delivering strong drilling power and long service life
  • Single-speed design with stable speed and torque for consistent performance
  • Magnetic holding force display for secure positioning on ferrous surfaces
  • Tilt sensor automatically stops the drill motor if the unit shifts
  • Integrated coolant tank enhances core drill bit life and reduces wear
  • Feed handwheel can be repositioned quickly without tools
  • Compact, lightweight design ideal for workshop and on-site use
  • Includes convenient personal safety switch for operator protection

In the box

  • 1 magnetic core drill
  • 1 coolant tank
  • 1 lashing strap
  • 1 centring pin 100 mm
  • 1 contact guard
  • 1 x 5 mm hexagon socket wrench
  • 1 x 5 mm hexagon socket wrench with T-handle
  • 1 case
Technical Data
Current/Voltages 110 V
Input 1,600 W
Output 1,200 W
Core drill holder 3/4 in Weldon
Motor brushless
Speed, full load 620 rpm
Speed, no load 620 rpm
Carbide cutter max. dia. 36 mm
HSS core drill max. Ø 20 mm
Core drill, drilling depth max. 50 mm
Stroke 107 mm
Magnetic holding power 10,000 N

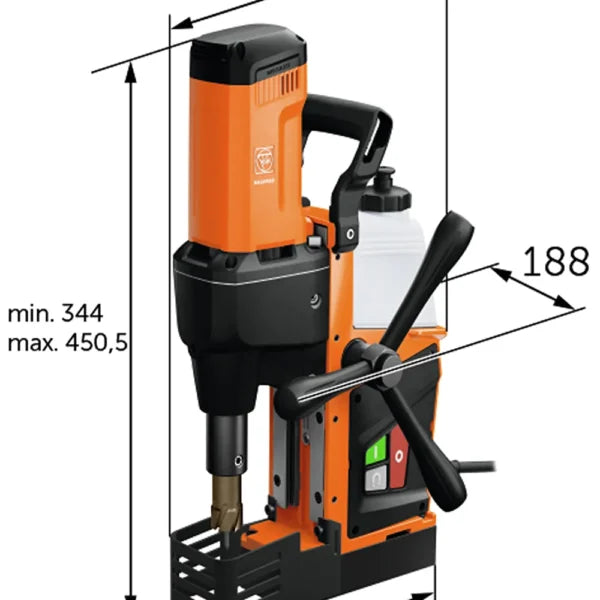

Magnetic foot dimensions 175 x 80 mm
Cable with plug 3 m
Weight 11.00 kg
Vibration and sound emission values
Sound pressure level LpA 85,6 dB
Uncertainty KpA 5 dB
Sound power level LWA 98,6 dB
Uncertainty KWA 5 dB
Sound peak value LpCpeak 98,3 dB
Uncertainty KpCpeak 5 dB
Vibration value αhv 3-way 0,6 m/s²
Uncertainty Kα 1,5 m/s²



Datasheet
