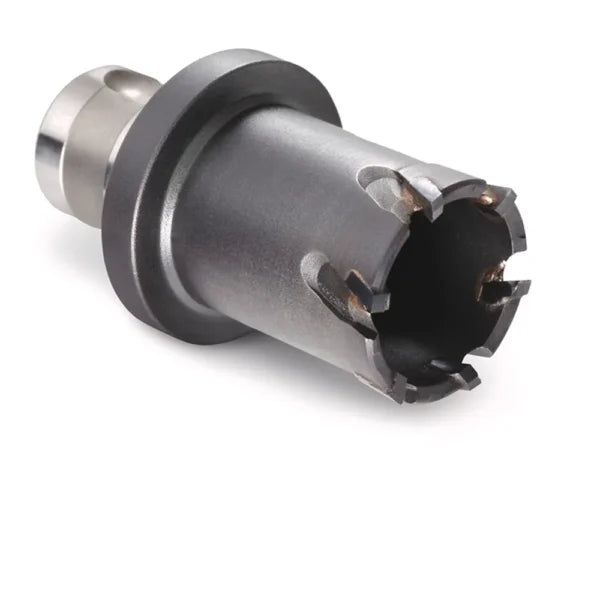

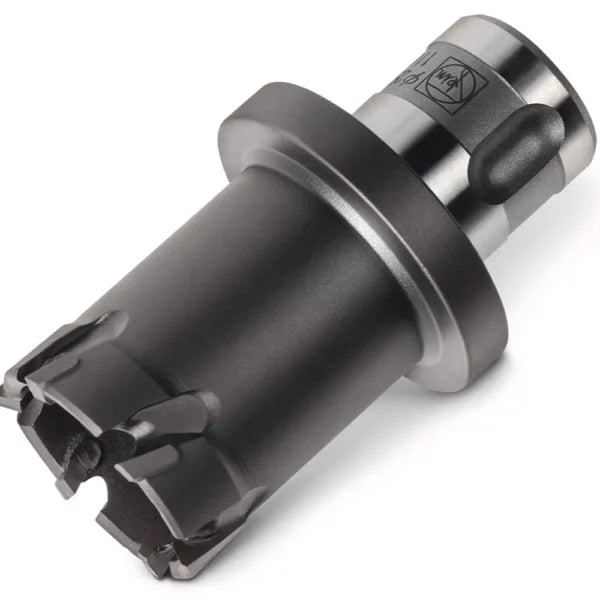

Fein Carbide Core Drill Bit with TiAIN Coating and QuickIN PLUS Holder
The FEIN Carbide Core Drill Bit with TiAIN Coating and QuickIN PLUS Holder is a premium professional accessory engineered for precision core drilling in metal, steel, tubular structures and thick materials. Featuring a high-performance carbide construction with Titanium Aluminium Nitride (TiAlN) coating and a QuickIN PLUS tool-free holder, this core bit delivers exceptional cutting speed, extended service life and superior wear resistance — perfect for demanding industrial, fabrication and maintenance applications.
Designed for use with FEIN drills equipped with the QuickIN PLUS interface, this core bit provides accurate, clean hole creation with reduced vibration and enhanced chip evacuation. The TiAlN surface ensures improved heat resistance and long-lasting cutting performance under heavy load, making it an essential tool for professionals requiring reliable core drilling solutions in metalworking, mechanical assembly and structural installation tasks.
Features
- Carbide core drill bit with TiAlN coating for enhanced heat resistance and durability
- QuickIN PLUS holder for rapid tool-free mounting and secure attachment
- Precision 14 mm bore for accurate core hole drilling
- Optimised cutting geometry for smooth, efficient chip evacuation
- High-quality carbide material for long-lasting performance
- Ideal for drilling metal, structural steel and thick materials
- Reduced vibration for improved operator control
- Professional-grade tool accessory for demanding applications
Applications
- Core drilling holes in metal and steel tubes
- Creating holes for pipe installation and structural assemblies
- Mechanical fabrication and maintenance drilling tasks
- Industrial drilling in thick or hard materials
- Workshop and job-site drilling operations
- Sheet metal and structural component hole cutting
- HVAC, electrical and plumbing installation projects
- Fabrication and machine servicing applications
| Technical Data | |
|---|---|
| Material | HM (carbide-tipped) |
| Vickers hardness (HV) | 1 450 HV |
| Coating | Titanium Aluminum Nitride (TiAlN) |
| Coating thickness | 3 µm |
| Coating strength | 3 500 HV |
| Heat resistence | max. 750°C |
| Number of cutting edges | 14-17mm 4 edges / 18-30mm 6 edges |
| Cutting depth | 20 mm |
| Total length | 55 mm |
| Core drill holder | QuickIN PLUS |
| Inner bore Ø | 6 mm |
