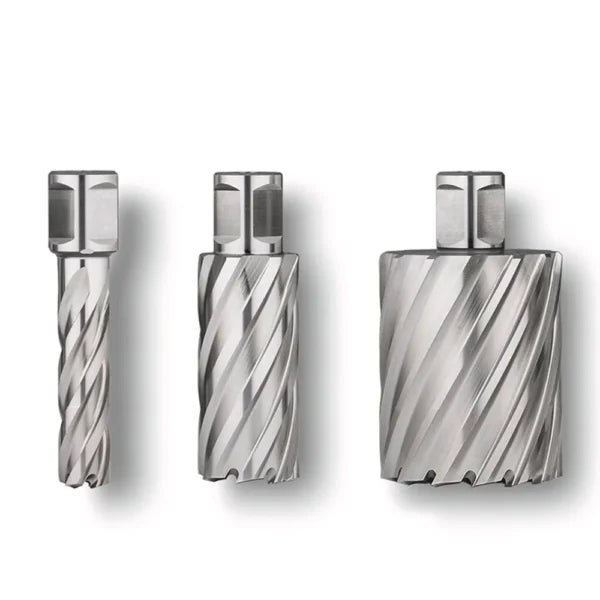

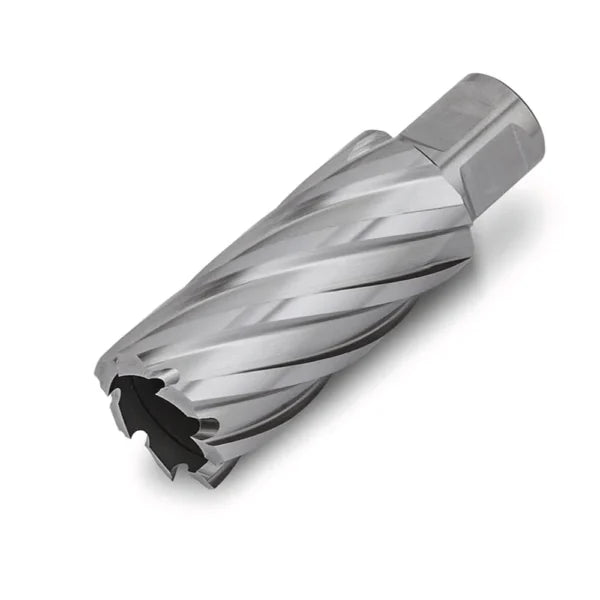

Fein HSS Special 50 Core Bit with 3/4in Weldon Fitting
The FEIN HSS SPECIAL 50 Core Bit with 3/4 in Weldon Fitting is a professional-grade core drilling accessory engineered for fast, precise and efficient metal drilling applications. Designed for magnetic drilling machines and demanding industrial environments, this high-performance core bit delivers clean, accurate hole cutting while reducing drilling effort and ensuring long service life in fabrication, structural steel and engineering applications.
Manufactured from high-strength HSS (High-Speed Steel) with a hardness rating of 64 HRC, this core bit is built for durability and consistent cutting performance. Its specialised cutting geometry enables drilling through multilayered stacked steel in a single operation without core removal, producing smooth holes with minimal burr formation and reducing secondary finishing work. The robust construction is impact and shock resistant, making it suitable for heavy-duty professional use.
With a diameter, 50 mm cutting depth and a standard 3/4 in Weldon fitting, this HSS SPECIAL 50 core bit ensures secure tool engagement and efficient torque transfer. Designed for structural retrofitting, vehicle frame construction and precision metal fabrication, it offers reliable performance where productivity, accuracy and durability are essential.
Features
- Professional HSS SPECIAL 50 core bit for precision metal drilling
- 12 mm bore diameter for accurate and efficient hole creation
- 50 mm cutting depth for deep and controlled material penetration

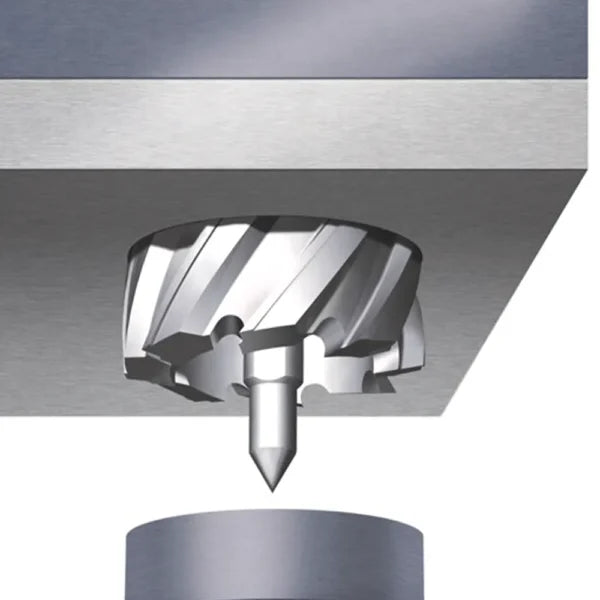

- Special cutting geometry for drilling multilayered stacked steel in one pass
- High-strength HSS construction with 64 HRC hardness
- Smooth hole creation with minimal burr formation
- Impact- and shock-resistant design for demanding industrial applications
- Resharpenable cutting edges for extended service life and reduced operating costs
- 3/4 in Weldon fitting for secure mounting and stable torque transfer
Applications
- Core drilling in steel and metal fabrication projects
- Drilling multilayered stacked steel plates in one operation
- Structural retrofitting and vehicle frame construction
- Magnetic drilling machine applications
- Industrial engineering and maintenance workshops
- Metalworking and fabrication assembly tasks
- Workshop and on-site professional drilling
- High-precision repetitive core drilling operations
| Technical Data | |
|---|---|
| Material | HSS |
| Rockwell hardness (HRC) | 64 HRC |
| Heat resistance | max. 600°C |
| Number of cutting edges | Between 4-13 depending on bit size |
| Total length | 86 mm |

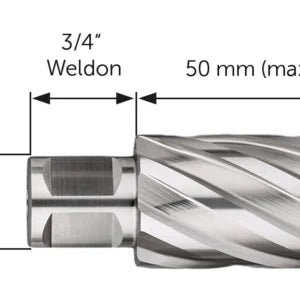

| Core drill holder | 3/4 in Weldon |
| Inner bore Ø | 6.35 mm |
| Cutting depth | 50 mm |
Datasheet12mm Datasheet13mm Datasheet14mm Datasheet15mm Datasheet16mm
Datasheet17mm Datasheet18mm Datasheet20mm Datasheet22mm Datasheet24mm
Datasheet26mm Datasheet28mm Datasheet30mm Datasheet32mm Datasheet35mm
