Fein VARIO 90° Impact Counter Sinks (M8/M10/M12/M16)
The FEIN VARIO 90° Impact Countersink M8/M10/M12/M16 is a professional-grade countersinking accessory engineered specifically for impact wrench and impact driver applications. Designed for high-speed impact use, this VARIO countersink delivers precise 90° chamfers and clean countersunk finishes while ensuring long service life and dependable performance in demanding industrial, fabrication and metalworking environments.
Manufactured from high-strength HSS material giving it a Long service life, thanks to high material strength (64 HRC), special cutting geometries suited to impact wrench/drivers and a TiAlN (titanium-aluminium-nitride) coating. The bits experience low levels of wear and friction as well as being heat-resistant to 800 °C. Thanks to the high speeds and number of blows, they can therefore be used in steel up to 900 N/mm². Perfectly suited to the following materials: non-alloyed and alloyed steels up to 900 N/mm², aluminium, brass.

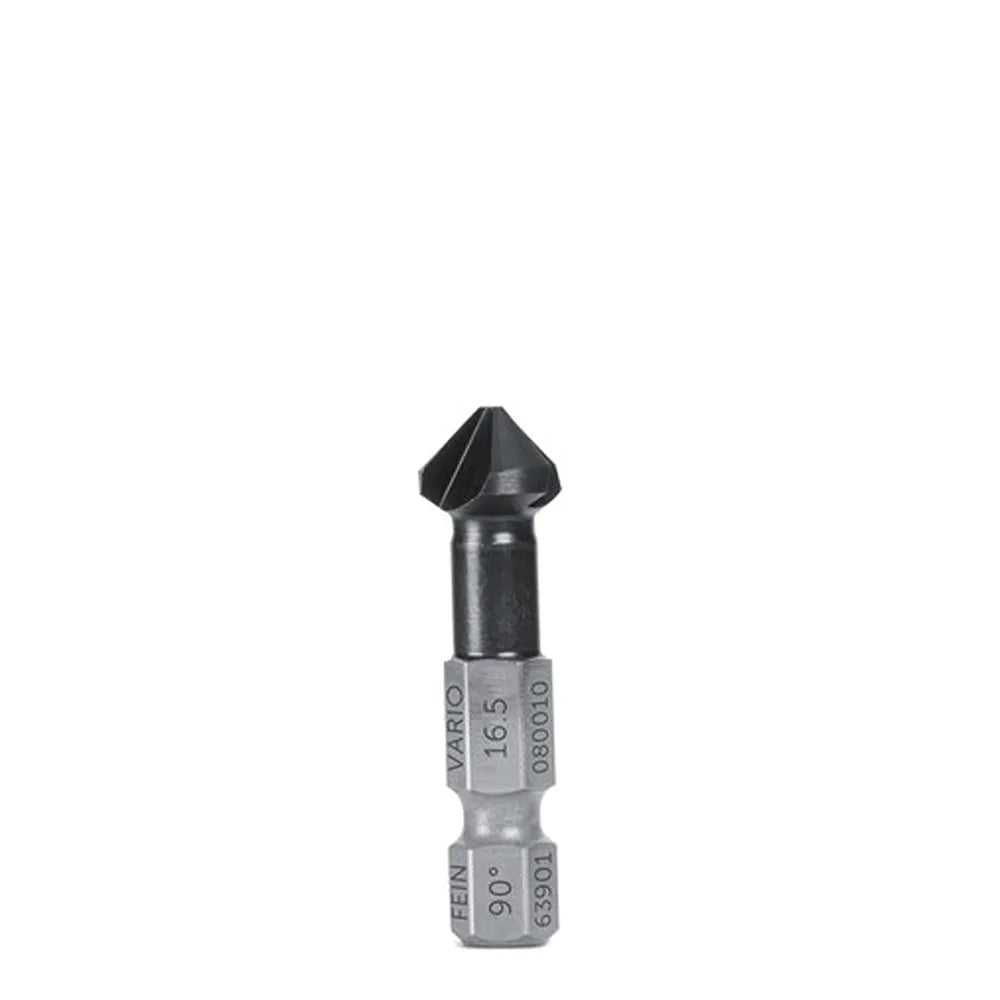

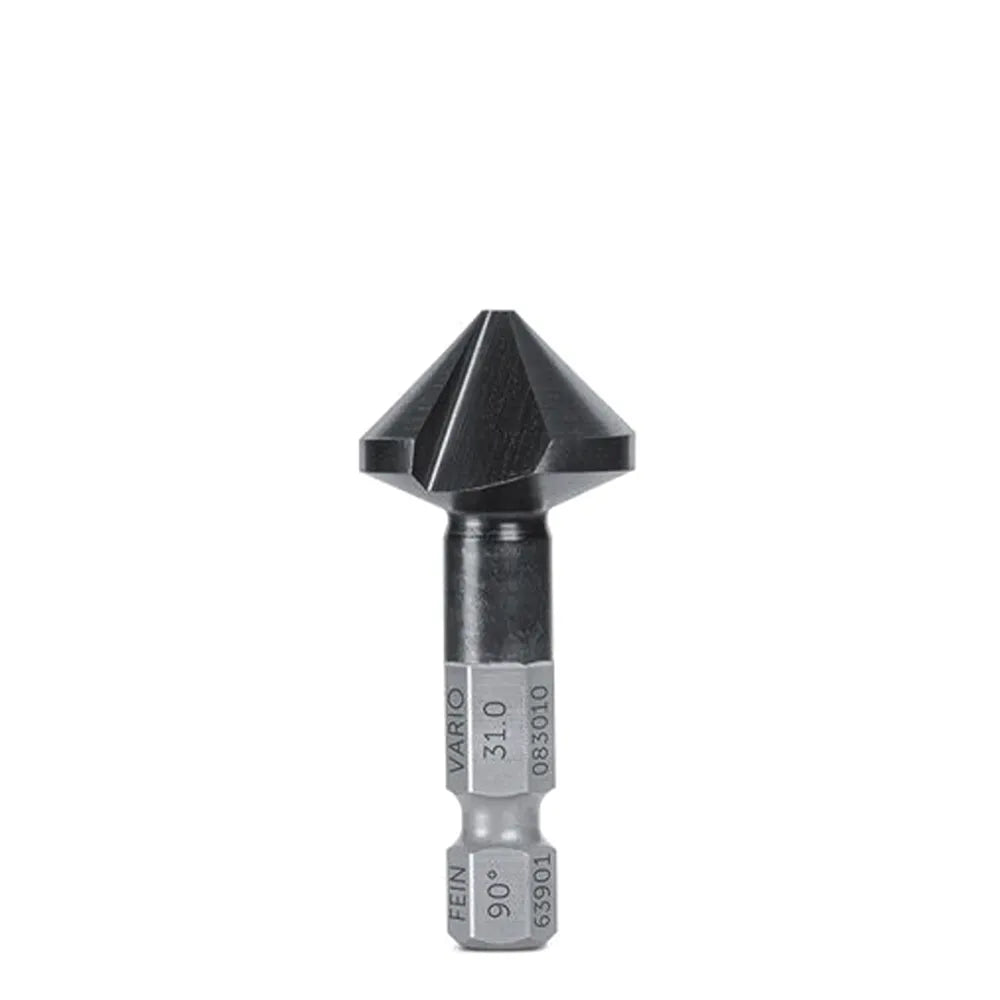

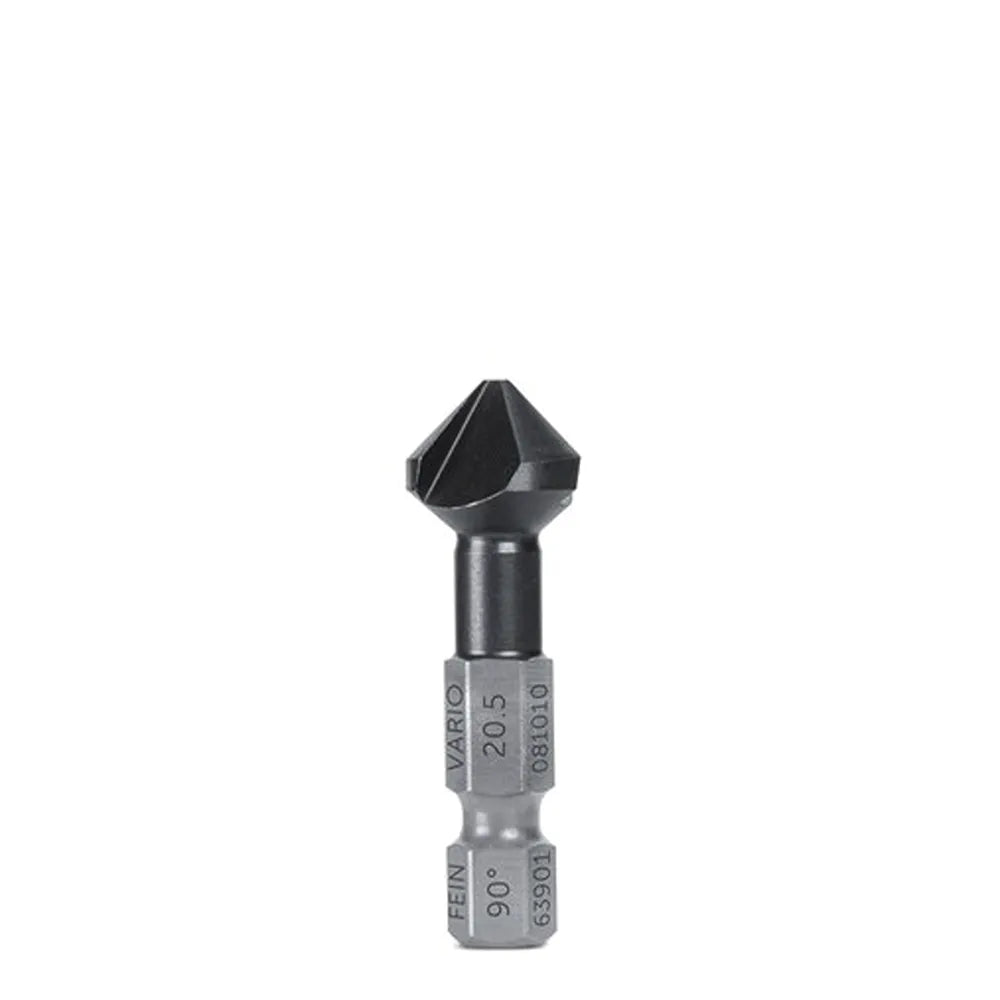

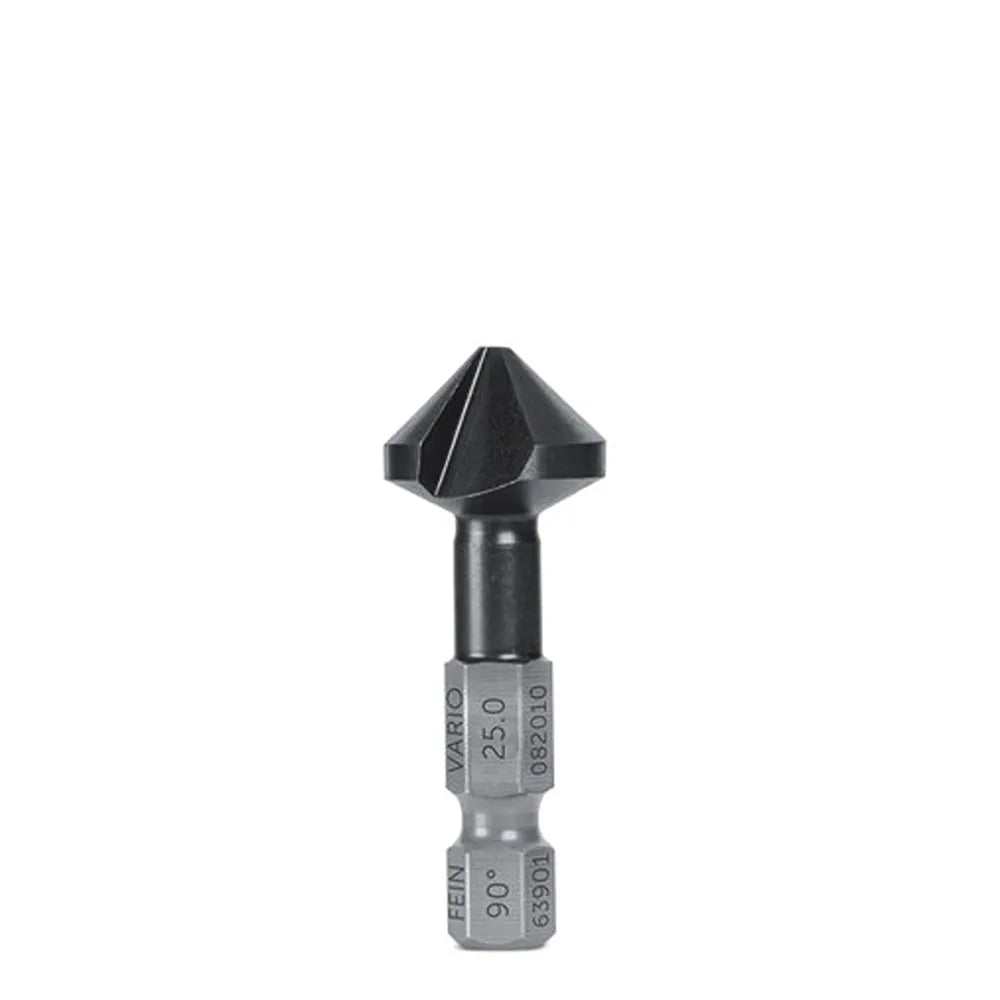

With a 16.5mm /20.5mm/25mm/31mm diameter and 90° countersink angle, this tool is ideal for producing precise countersunk holes for M8/M10/M12/M16 applications. The VARIO bit shaft interface ensures secure tool engagement and efficient torque transfer, making it suitable for non-alloyed and alloyed steels up to 900 N/mm², as well as aluminium and brass in professional fabrication, assembly and maintenance work.
Features
- Professional VARIO 90° impact countersink designed for M8 applications
- For accurate and clean countersinking results
- 90° countersink angle for precise screw seating and finishing
- Optimised cutting geometry for impact wrench/driver use
- High-strength HSS construction with 64 HRC hardness
- TiAlN coating for reduced friction and extended service life
- Heat-resistant up to 800°C for demanding applications
- VARIO bit shaft interface for secure mounting and stable torque transfer
| Technical Data |
| Material | HSS |
| Strength | 64 HRC |
| Coating | Titanium Aluminum Nitride (TiAlN) |
| Heat resistance | max. 800°C |
| L (Total length) | 60 mm/63 mm/67 mm/71 mm |
| Countersink angle | 90° |
| Tool Holder | VARIO Bit Shaft |
| Ø (Cutting diameter) | 16.5 mm/20.5 mm/25 mm/31 mm |
| Weight | 0.04 /0.05/0.06/0.09Kg |
Applications
- Creating 90° countersinks for fastener applications
- Countersinking screw heads in steel, aluminium and brass
- Impact-driven chamfering in industrial fabrication
- Metalworking, engineering and mechanical assembly
- Surface finishing before fastening or tapping operations
- High-speed impact work with wrench/drivers
- Workshop and on-site installation tasks
- Professional repetitive countersinking applications
