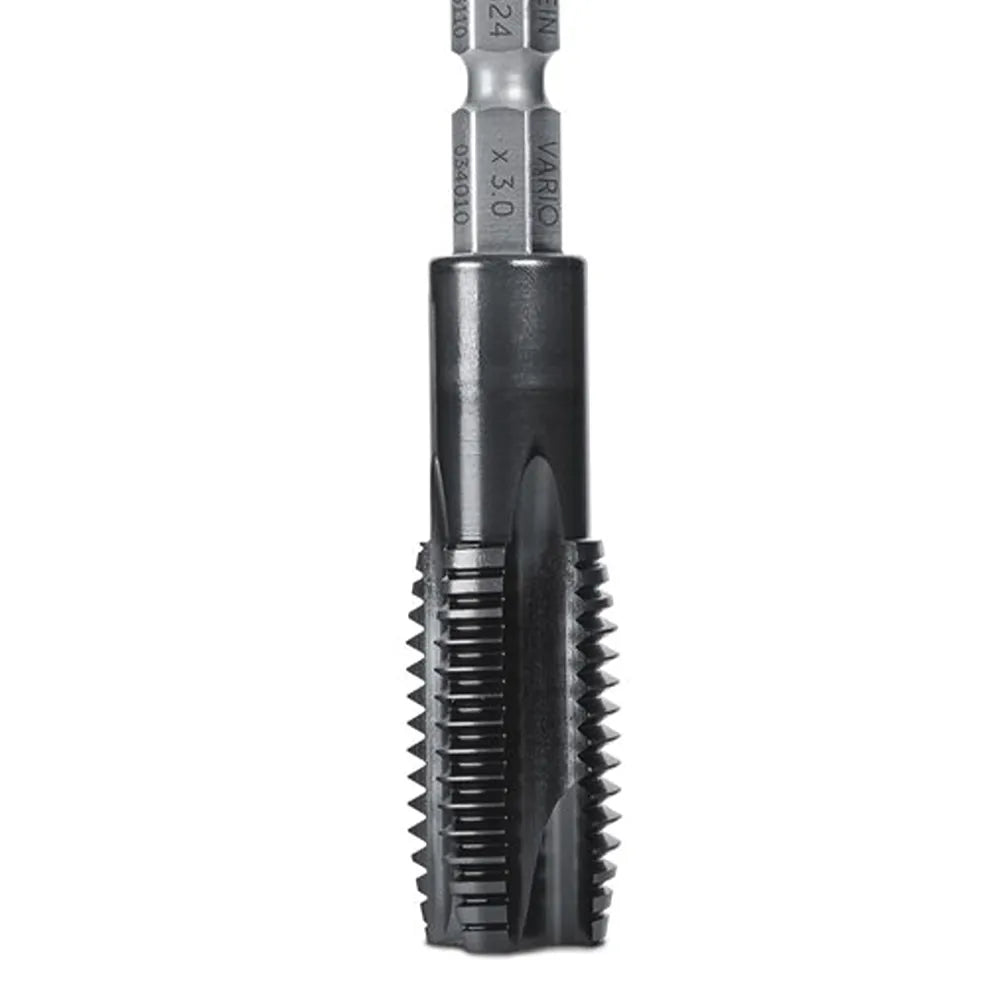

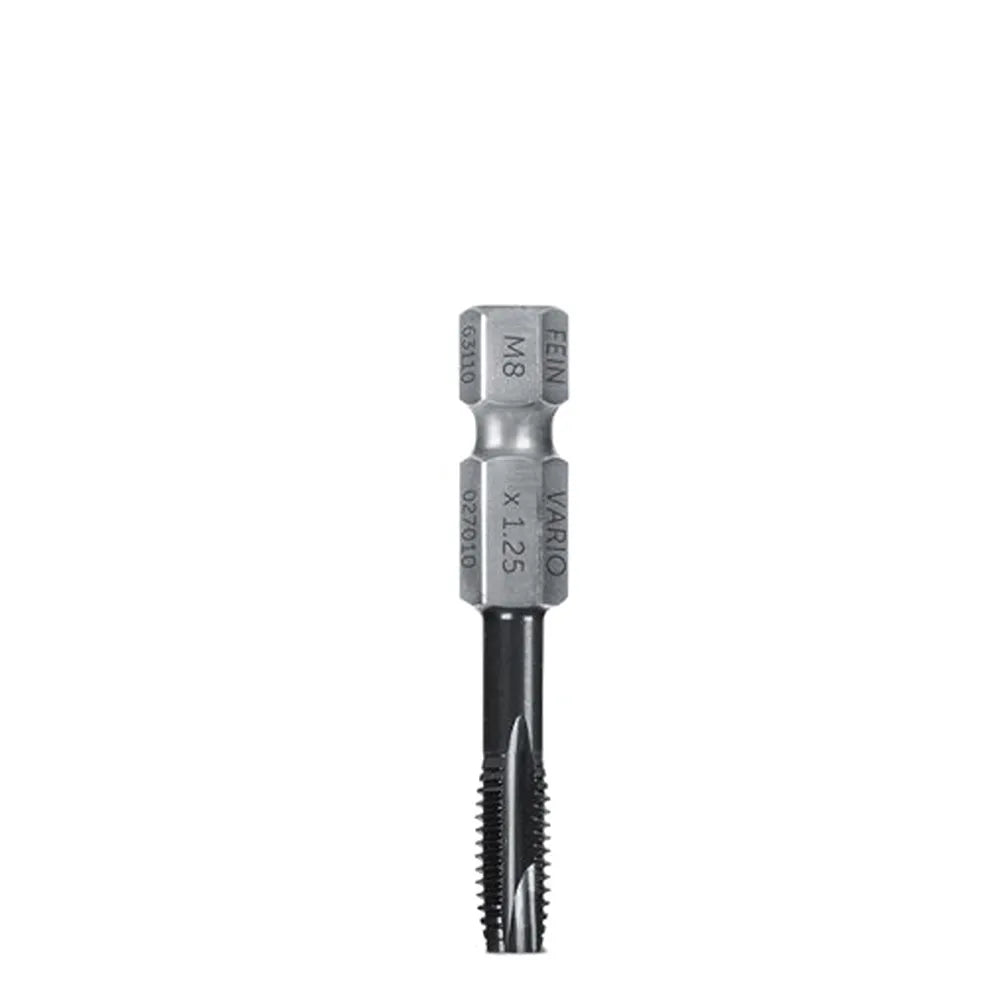

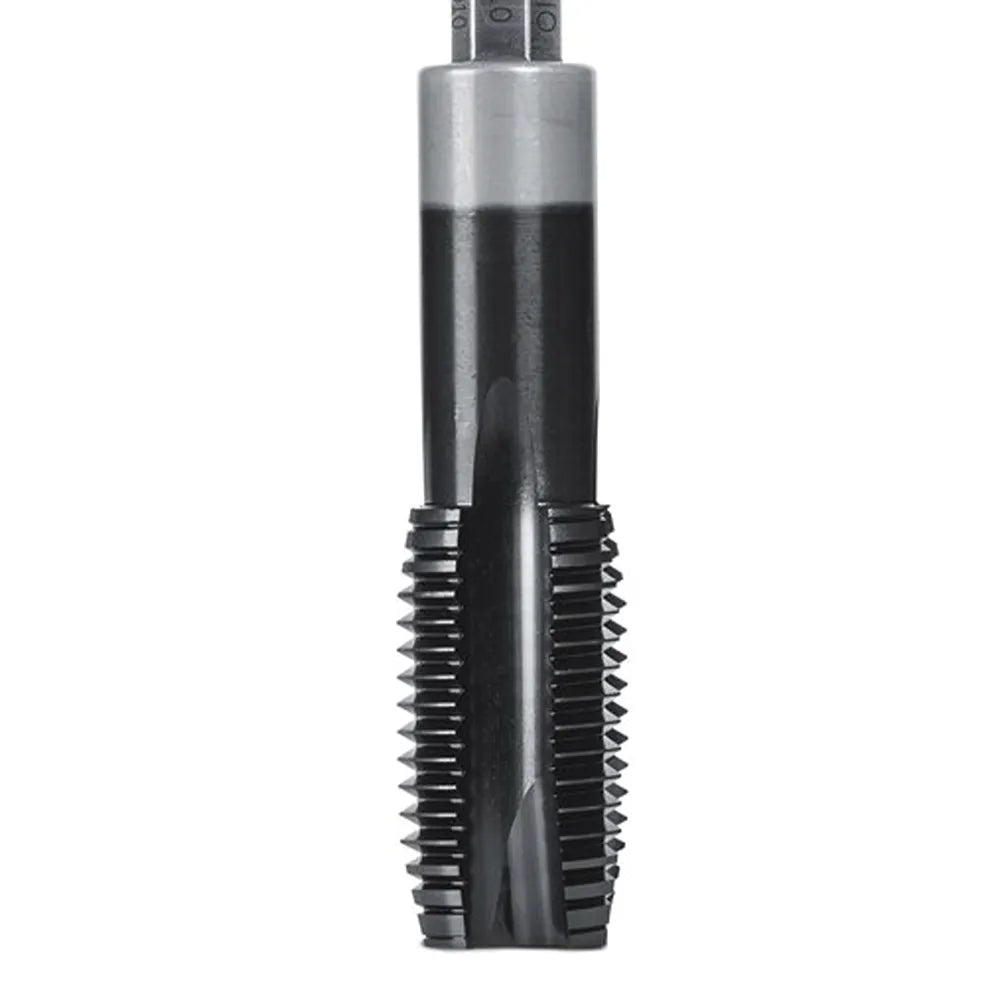

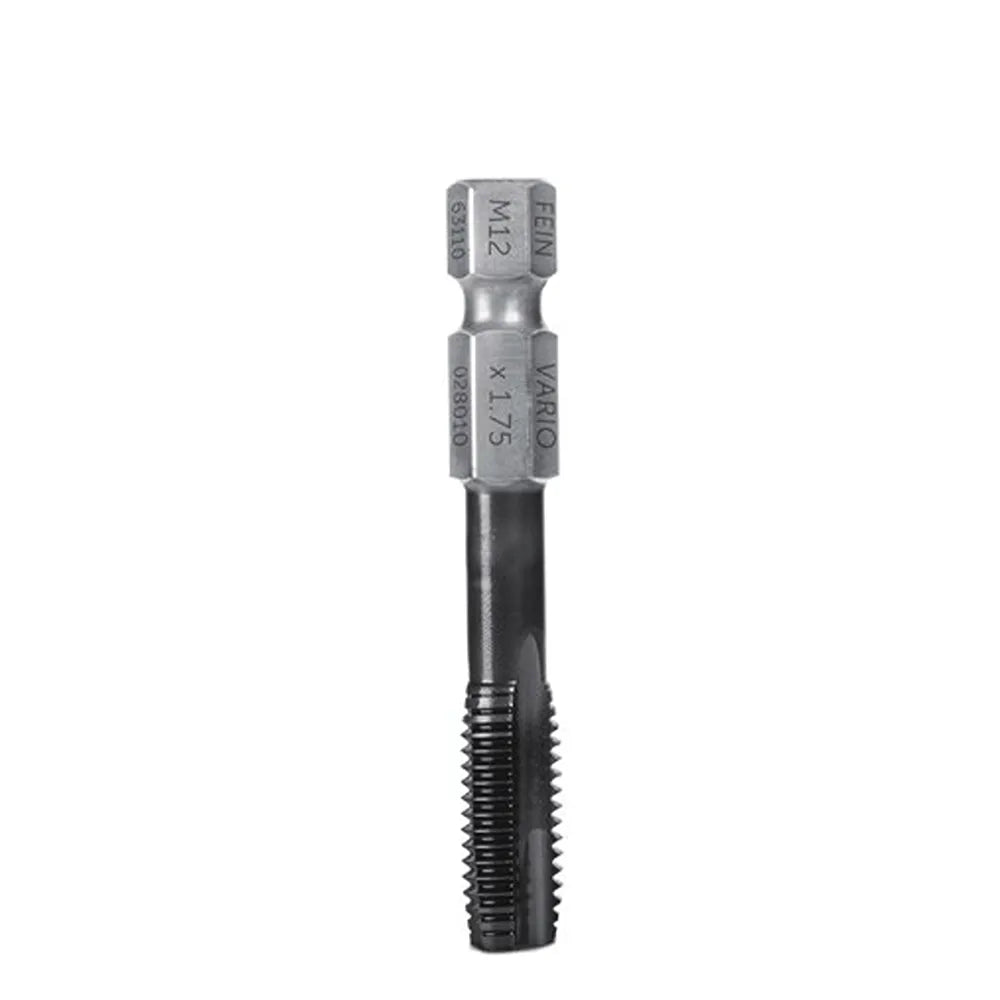

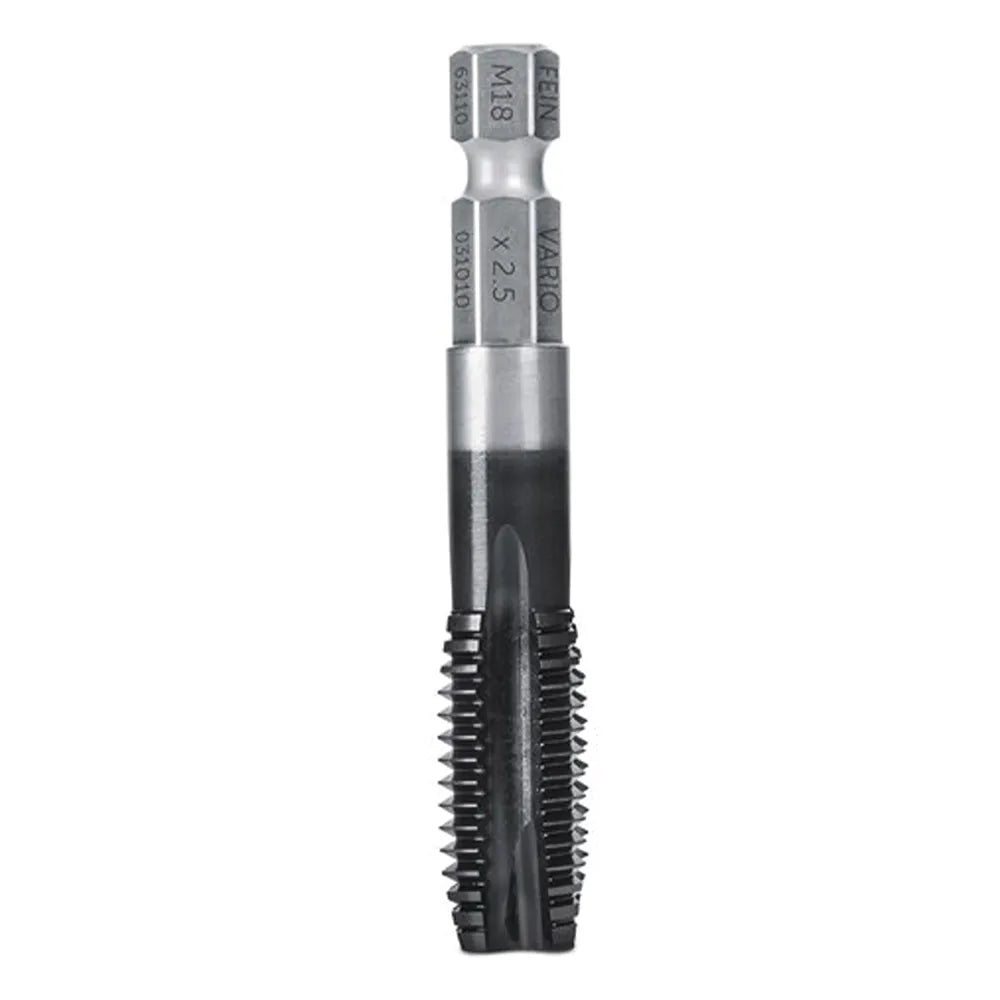

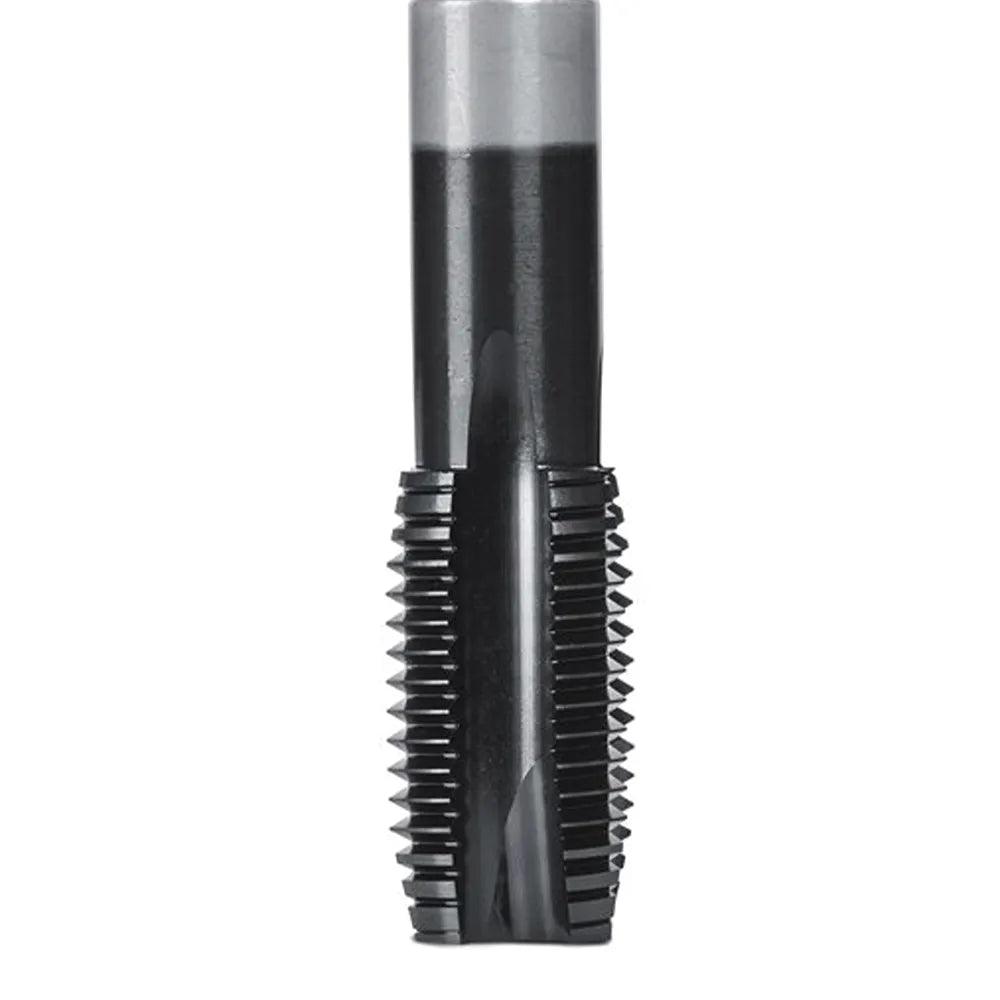

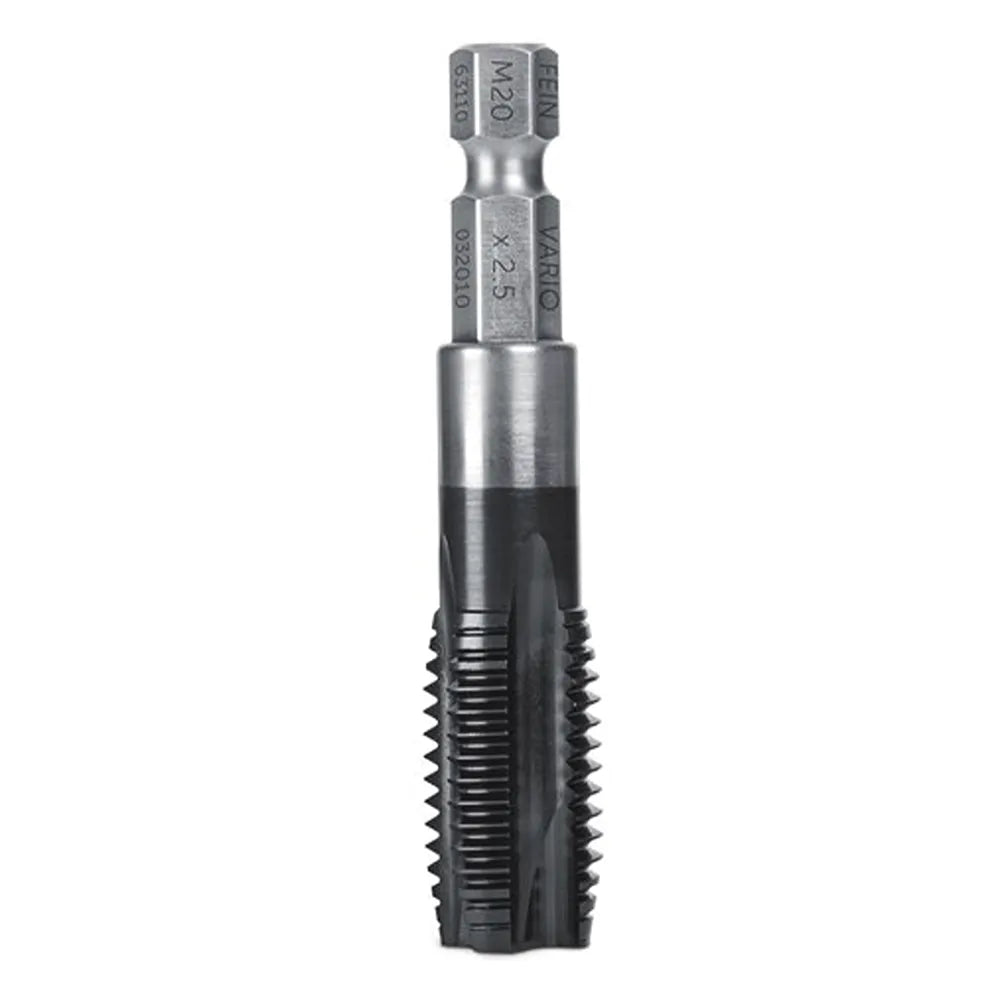

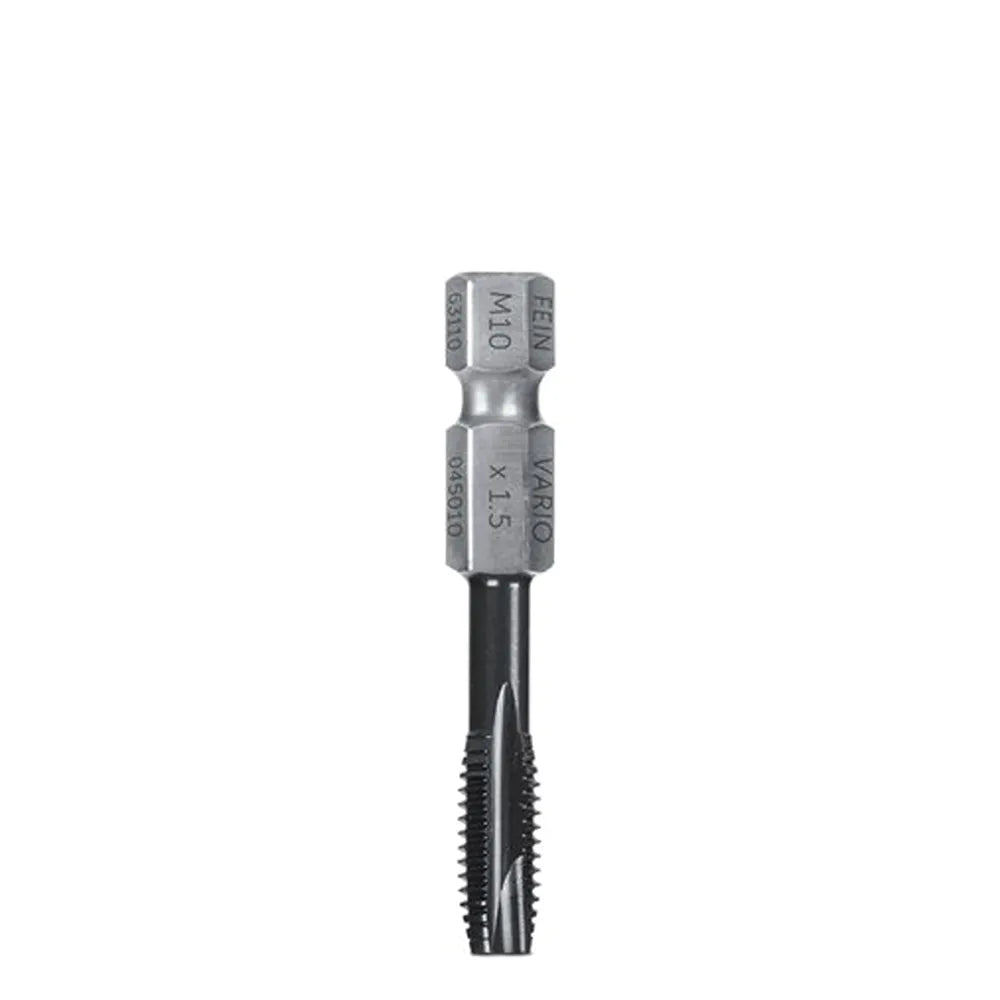

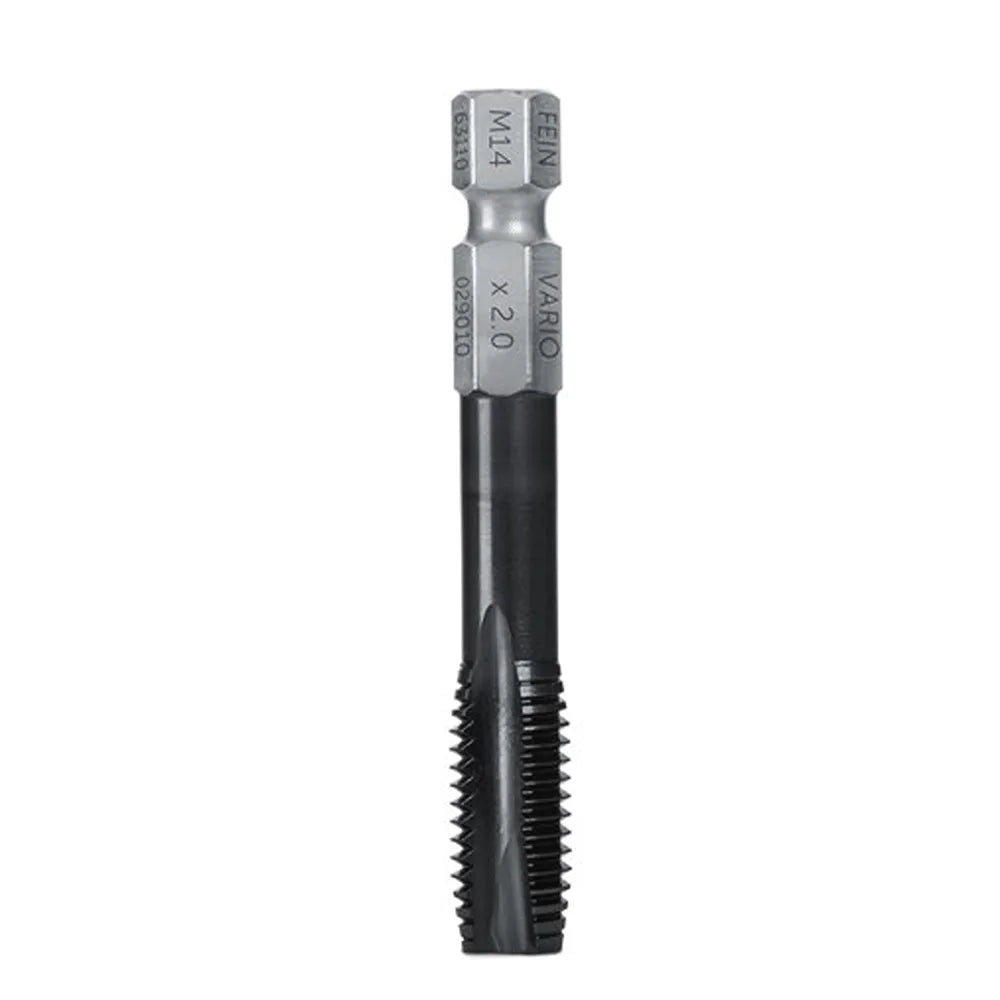

Fein VARIO M8-M30 x 1.25mm-3.50mm Impact Tapper for Through Holes
The FEIN VARIO Impact Tappers for Through Holes are professional-grade threading accessories engineered specifically for impact wrench and impact driver applications. Designed for high-speed impact tapping, this VARIO tapper delivers precise and reliable thread cutting performance with exceptional durability for demanding industrial, fabrication and maintenance environments.
Developed for through-hole threading, this impact tapper features specialised cutting geometries optimised for impact wrench/drivers, enabling stable, accurate and efficient thread formation even under high impact frequencies. Manufactured from high-strength HSS material with a hardness rating of 64 HRC and finished with a TiAlN (titanium aluminium nitride) coating, it offers low wear, reduced friction and heat resistance up to 800°C for long service life in heavy-duty use. Long service life, thanks to high material strength (64 HRC), special cutting geometries suited to impact wrench/drivers and a TiAlN (titanium-aluminium-nitride) coating.
The bits experience low levels of wear and friction as well as being heat-resistant to 800 °C. Thanks to the high speeds and number of blows, they can therefore be used in steel up to 900 N/mm².|Perfectly suited to the following materials: non-alloyed and alloyed steels up to 900 N/mm², aluminium, brass.
Features
- Professional VARIO impact tapper designed for through-hole threading
- M8-M30 x 1.25mm-3.50mm thread size for precise metric tapping
- Optimised cutting geometry for impact wrench/driver use
- High-strength HSS tool steel with 64 HRC hardness
- TiAlN coating for low friction and extended service life
- Heat-resistant up to 800°C for demanding applications
- VARIO bit shaft interface for secure mounting and stable torque transfer
- Suitable for steel, aluminium and brass materials
| Technical Data |
| Material | HSS |
| Strength | 64 HRC |
| Coating | Titanium Aluminum Nitride (TiAlN) |
| Heat resistance | max. 800°C |
| L (Total length) | 66 mm - 130 mm |
| Spiral length | 22 mm - 48 mm |
| Tool Holder | VARIO Bit Shaft |
| Tapping |
M8/M10/M12/M14/M16/M18/M20/ M22/M24/M27/M30 |
| Max. Material thickness | 10 mm - 45 mm |
| Weight | 0.03 kg - 0.35 kg |
Applications
- Thread cutting in through holes using impact wrench/drivers
- Industrial fabrication and engineering workshops
- Steel, aluminium and brass tapping applications
- Mechanical assembly and production environments
- Maintenance and repair threading tasks
- Workshop and on-site installation work
- High-speed repetitive impact tapping applications
- Professional metalworking and manufacturing operations
